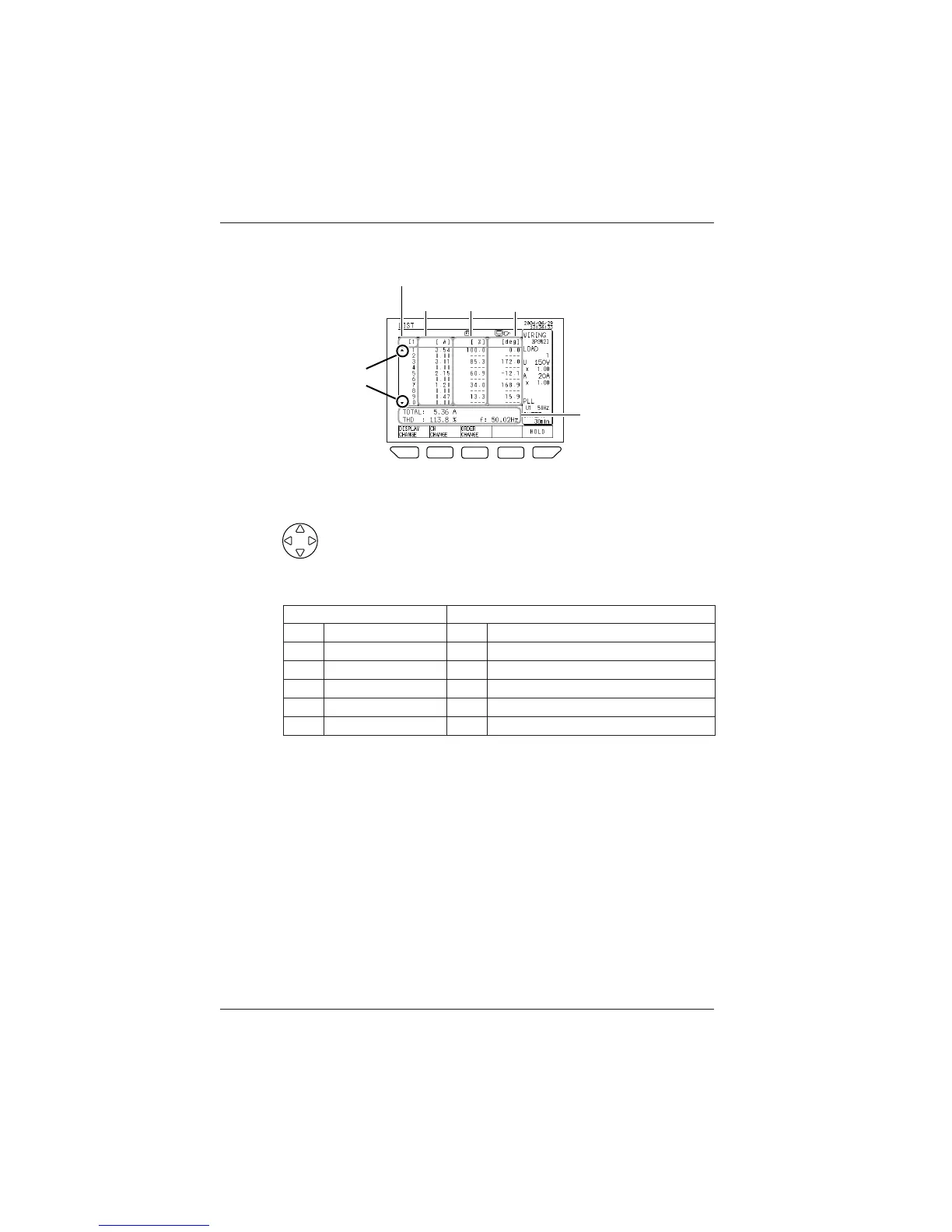

Display information:
F
1
F
1
F
2
F
3
F
4
F
5
Page (order) change
Element to be measured
Level
Content
Phase angle
TOTAL: total rms value
(Element to be measured,
P: total power value)
THD: total harmonic distortion
f: Frequency
To switch the page:
Using the up and down direction cursor key, switch the page to be
displayed.
The page configuration differs depending on the setting of F3 (ORDER CHANGE).
All Orders Odd-number Orders
Page Orders Page Orders
1 1 to 10 1 1,3,5,7,9,11,13,15,17,19
2 11 to 20 2 21,23,25,27,29,31,33,35,37,39
3 21 to 30 3
——
—
—
41,43,45,47,49
4 31 to 40
5 41 to 50
7.6 Measuring Harmonics
