YOKOGAWA DL9140L User Manual

5-15
IM 701310-01E
Vertical and Horizontal Axes
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

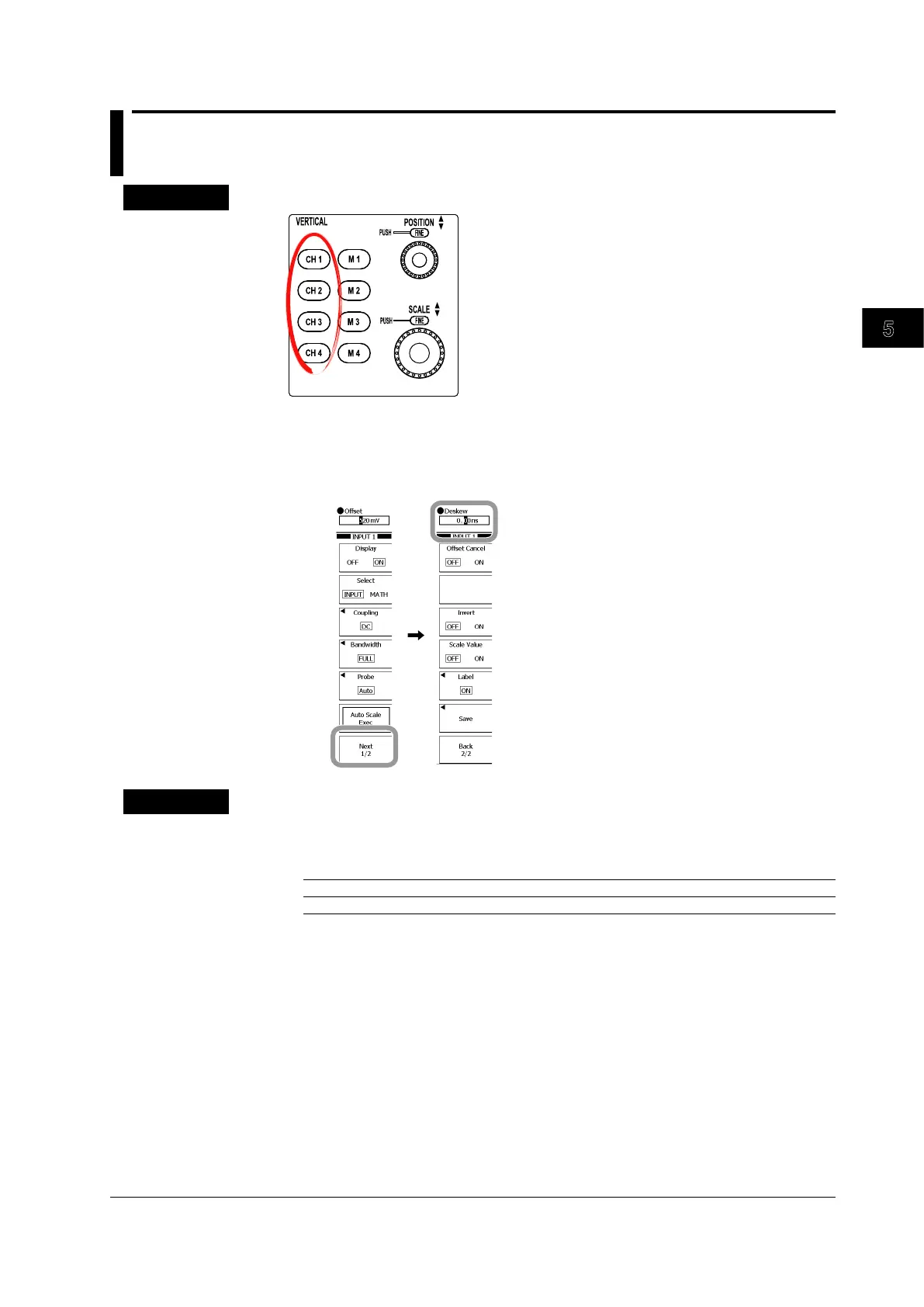

5.13 Correcting the Skew
Procedure
1.
Press one of the CH1 to CH4 keys to select the channel.
2.
Press the Next 1/2 soft key.
3.
Use the rotary knob to set the screw correction value of the signal.
Explanation
Correcting the Skew
You can observe the signal by correcting the time offset (skew) between the CH1 to CH4nal by correcting the time offset (skew) between the CH1 to CH4al by correcting the time offset (skew) between the CH1 to CH4
signals. You can make corrections on each channel, CH1 to CH4. You can make corrections on each channel, CH1 to CH4.
Selectable range –80.00 to 80.00 ns (the default value is 0.00 ns)
Resolution 0.01 ns
