Acquisition and Display
7-1
IM 701310-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

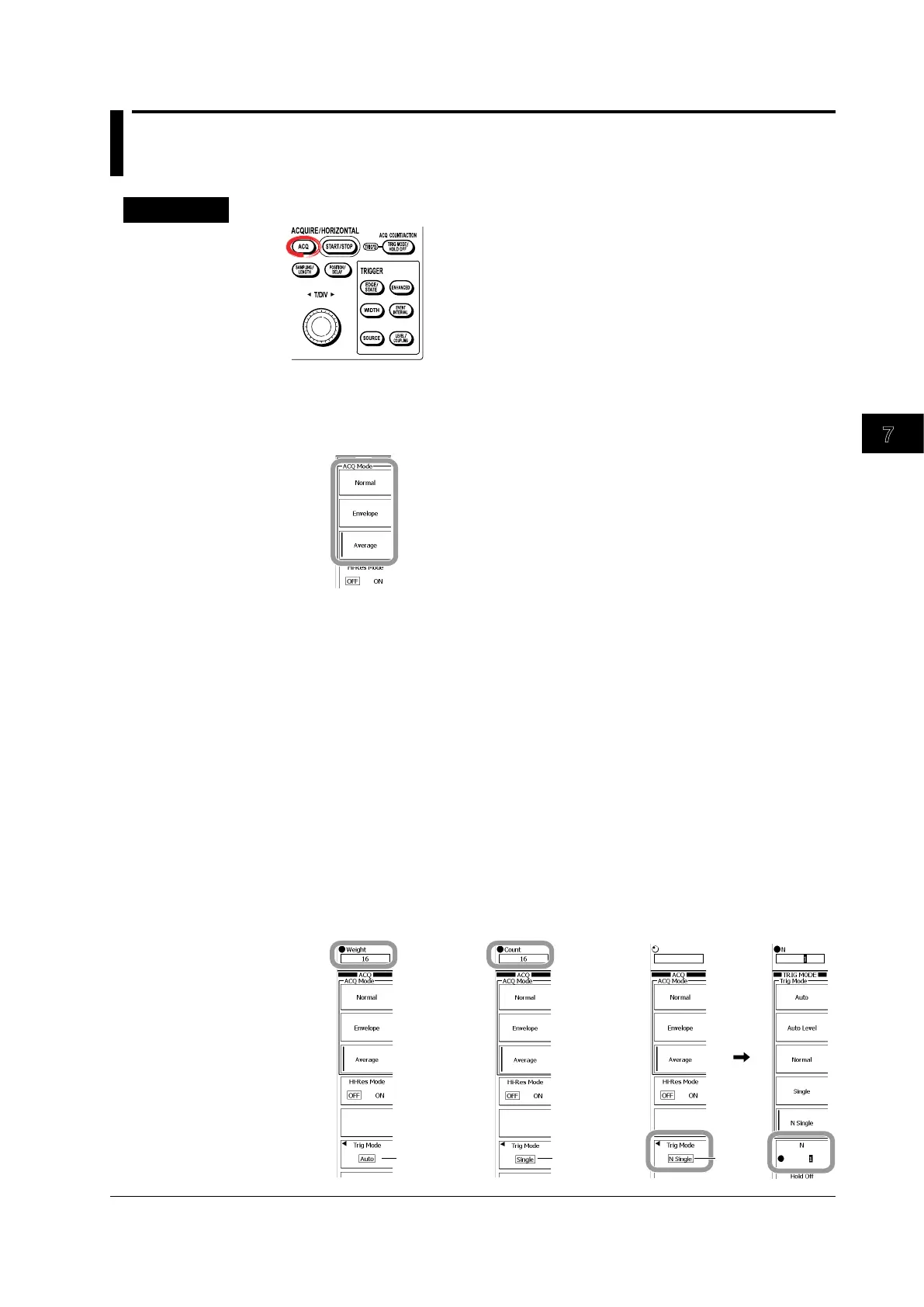

7.1 Setting the Acquisition Mode
Procedure
Selecting the Acquisition Mode
1.
Press ACQ.
2.
Press a soft key from Normal to Envelope to select the mode.
If you select Average, proceed to step 3.
Setting the Attenuation Constant of the Exponential Average
(When the acquisition mode is Average and the trigger mode is Auto, Auto Level, or
Normal)
3.
Use the rotary knob to set the attenuation constant (Weight).
Setting the Simple Average Acquisition Count
(When the acquisition mode is Average and the trigger mode is Single)
3.
Use the rotary knob to set the acquisition count.
(When the acquisition mode is Average and the trigger mode is N Single)
3.
Press the TrigMode soft key to display the trigger mode menu.
4.
Press the N soft key so that turning the rotary knob will adjust the value of N.
5.
Use the rotary knob to set the acquisition count.
When the trigger mode
is Auto, Auto Level, or
Normal
When the trigger
mode is Single
When the trigger
mode is N Single
Acquisition mode: Average
Auto
Auto Level
Normal
Single N Single
Chapter 7 Acquisition and Display
To Next Page
