10.12 Searching Serial Pattern Signals
Procedure
1.
Carry out steps 1 to 5 in section 10.10 to set the search type to Serial.
2.
Press the Setup soft key.

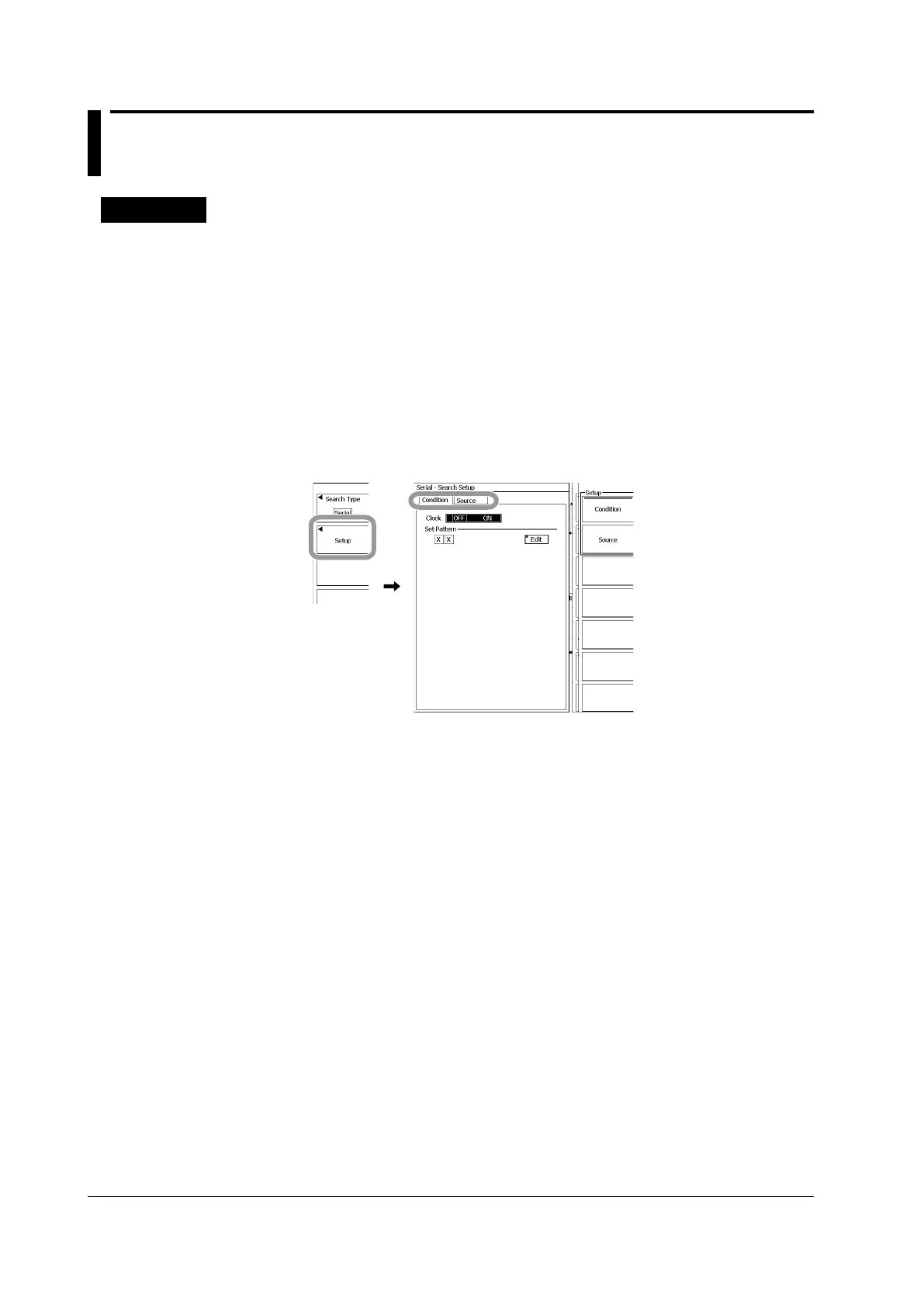

The Setup dialog box appears.
Setting the Search Conditions
3.
Use the rotary knob and SET to select the Condition tab.
You can also press the Condition soft key to select the tab.
Turning the Clock ON and OFF
4.
Use the rotary knob and SET to set the clock to ON or OFF.
For the procedure to set the bit rate, clock source, CS state condition, and latch source, see
pages 10-70 and 10-71.
