14.5 Displaying Scale Values and Labels

Procedure

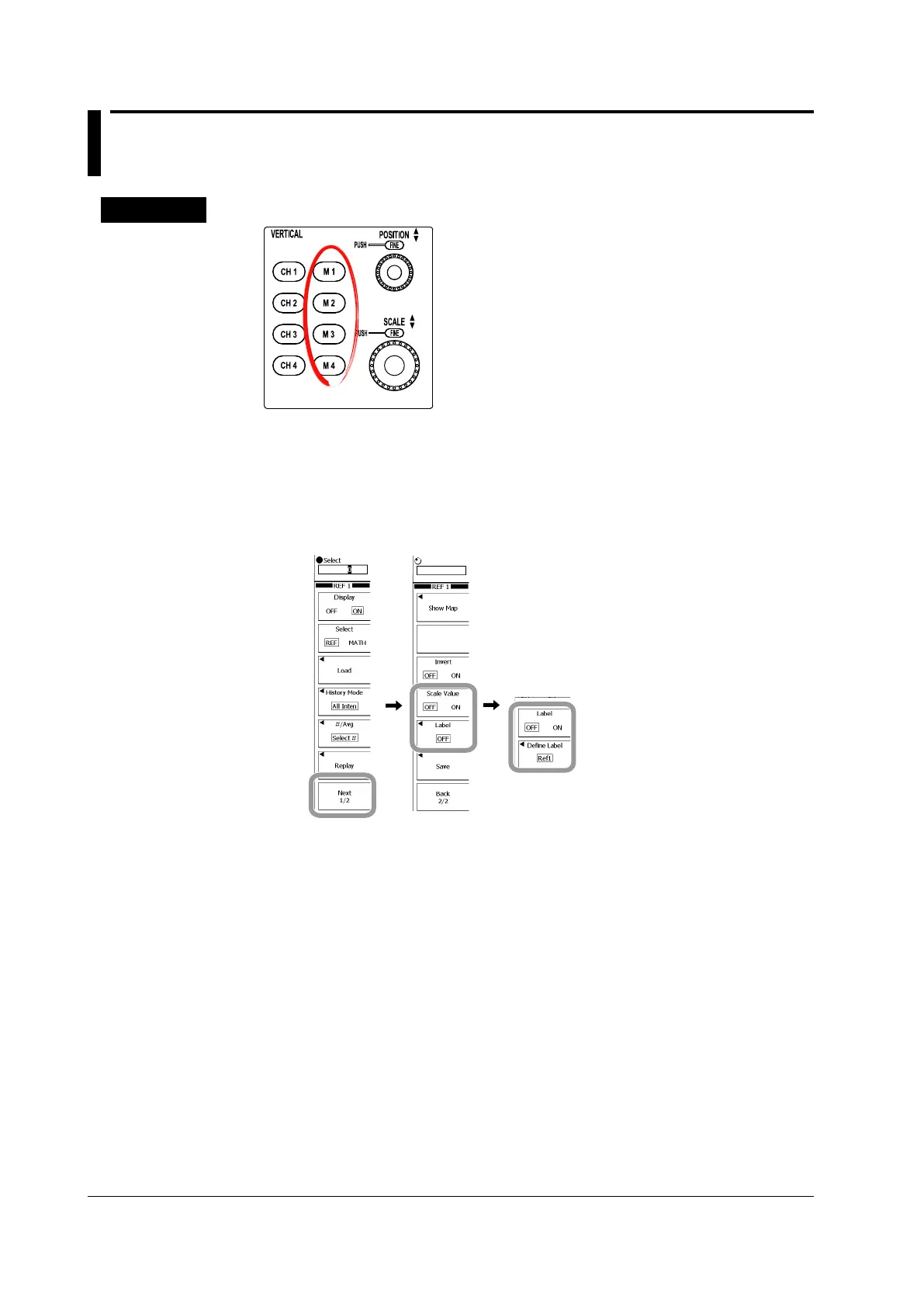

Press the key from M1 to M4 to display reference waveforms.

Press the Next 1/2 soft key.

Displaying the Scale Value

Press the Scale Value soft key to select ON or OFF.

Displaying the Label

Press the Label soft key.

Press the Label soft key to select ON or OFF.

Press the Define Label soft key. A keyboard appears.

Enter the contents of label as described in section 4.2.
