13-41

IM 701310-01E

Saving and Loading Measurement Data

App

Index

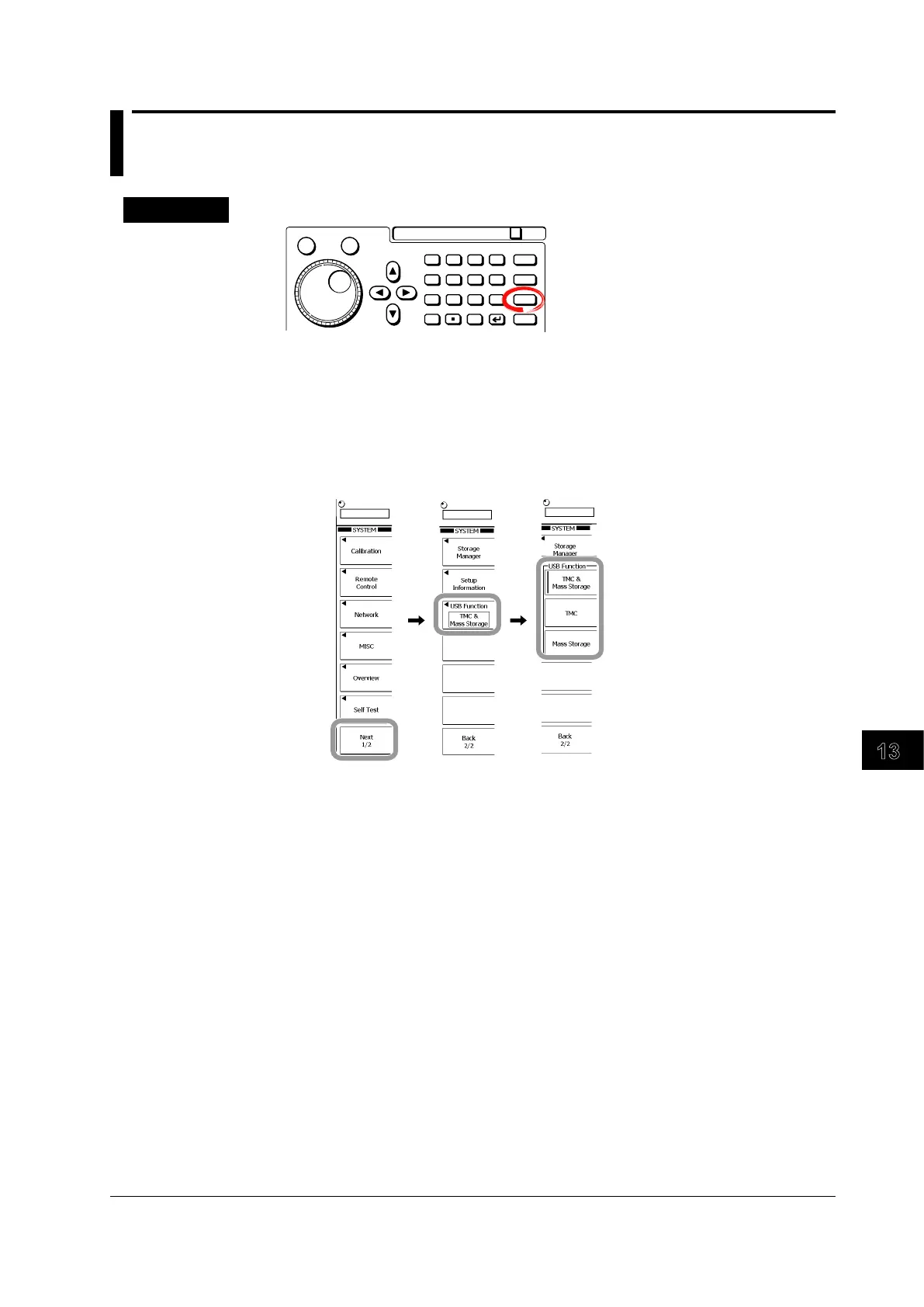

13.13 Connecting to a PC Using the USB Port

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Press the SYSTEM.

Press these soft keys: Next 1/2 > USB Function.

Press a soft key from TMC & Mass to Mass Storage to select the communication

function.

Restart the DL9000 to activate the settings.

Wait at least 10 seconds after you turn the power switch OFF, and then turn the switch back

ON.
