Stopped
Running (acquisition in progress)
Pre (acquiring pre data)
Waiting for trigger
Post (acquiring post data)
Displayed record
length
Acquisition mode
Sample rate

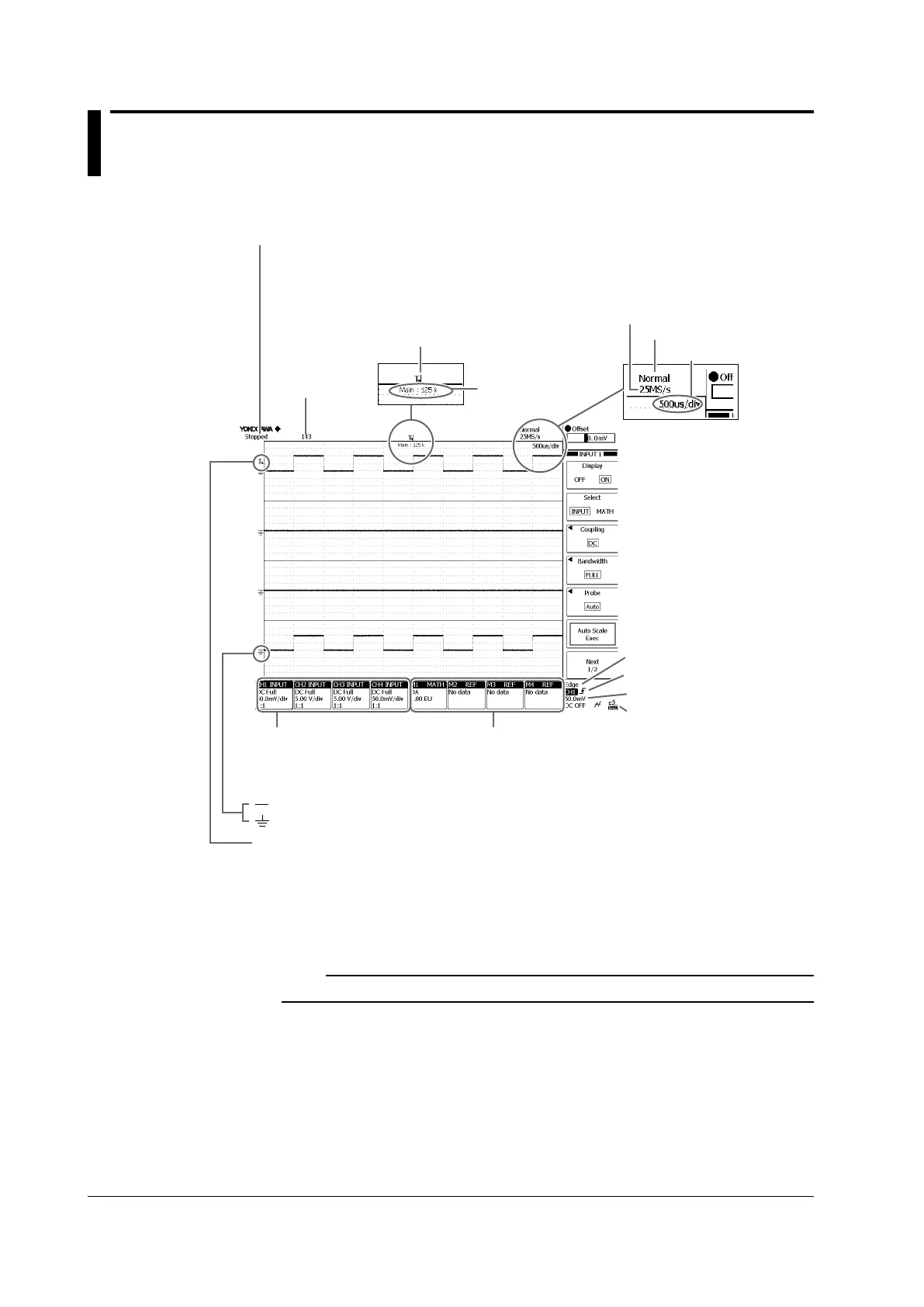

Signal acquisition status
T/div. See section 4.2
Input channel status
Coupling
Scale
Probe attenuation rate
Trigger position
Computing/Reference
waveform status
Signal
acquisition count
Trigger position mark
Ground level mark
Vertical position mark
Trigger coupling, HF rejection,
hysteresis, and trigger delay
Trigger mode
Trigger source, Polarity
Trigger level
