Making Preparations for Measurements

3-13

IM 701310-01E

App

Index

3.6 Setting the Date and Time

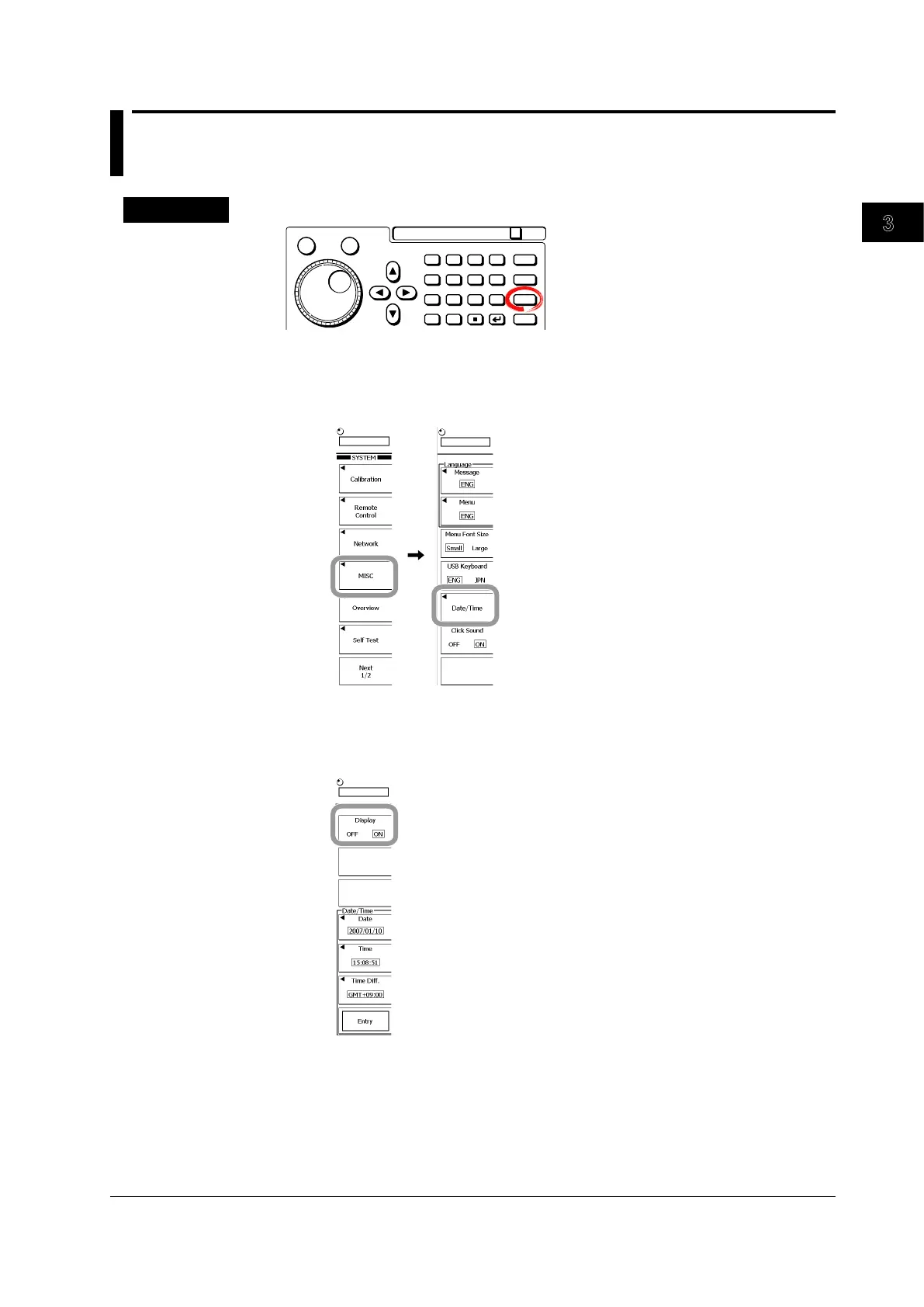

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

FILE UTILITY

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Press SYSTEM.

Press these soft keys: MISC > Date/Time.

The Date/Time setup dialog box appears.

Press the Display soft key to select ON or OFF.

• ON: Displays the date and time at the upper left of the screen.

• OFF: Does not display the date or time.

Default Chapter5
