YOKOGAWA DL9140L

Triggering
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index
6-21
IM 701310-01E

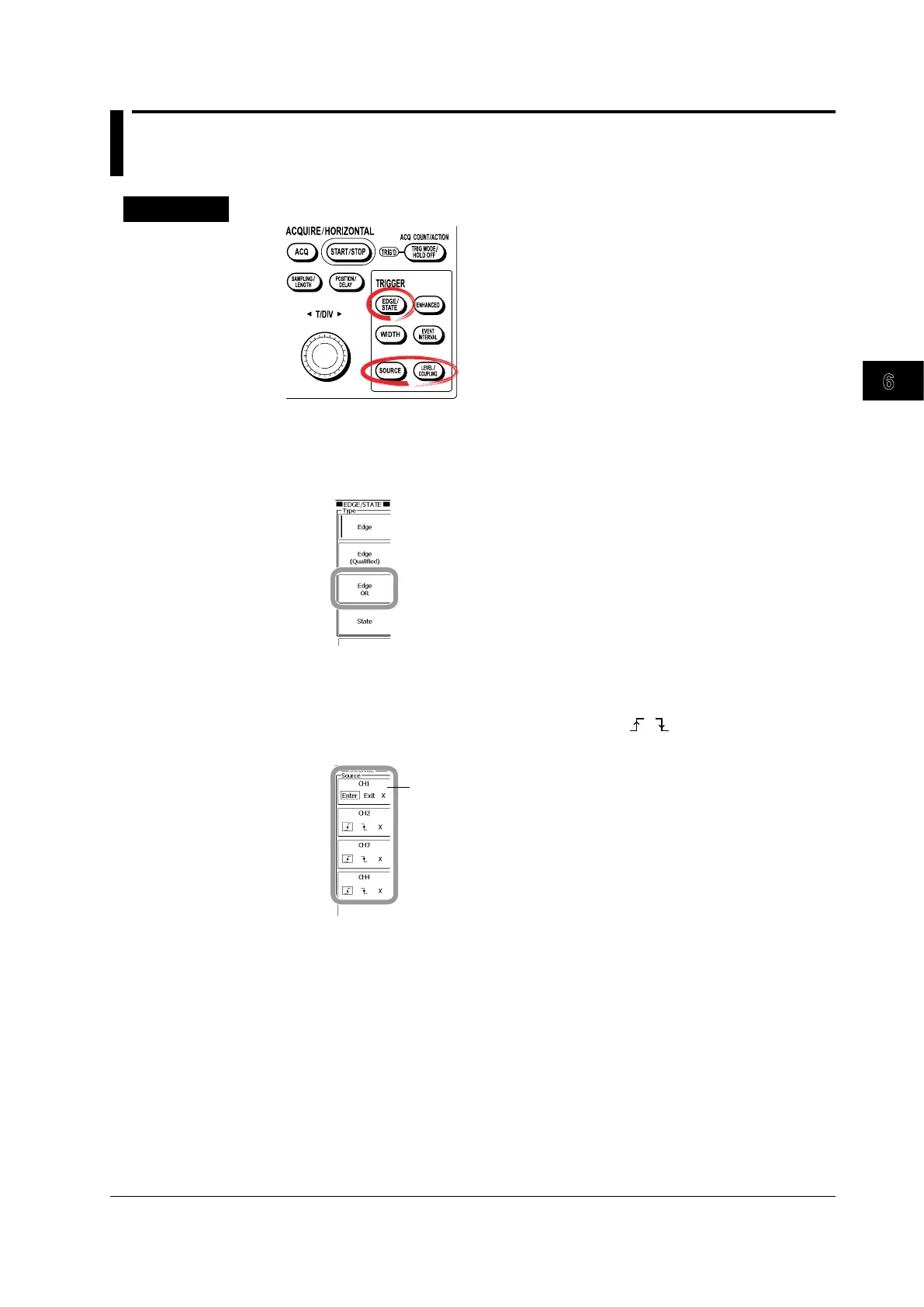

6.9 Activating a Trigger on the OR Logic of
Multiple Edge Triggers
Procedure
Setting the Trigger Type
1.
Press EDGE/STATE.
2.
Press the Edge OR soft key.
Selecting the Trigger Slope
3.
Press SOURCE.
4.
Press the appropriate channel soft key to select , , or X.
For channels whose window comparator is set to ON, select Enter, Exit, or X.
When the window comparator is ON
