YOKOGAWA DL9140L User Manual

1-7
IM 701310-01E
Names and Functions of Parts
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

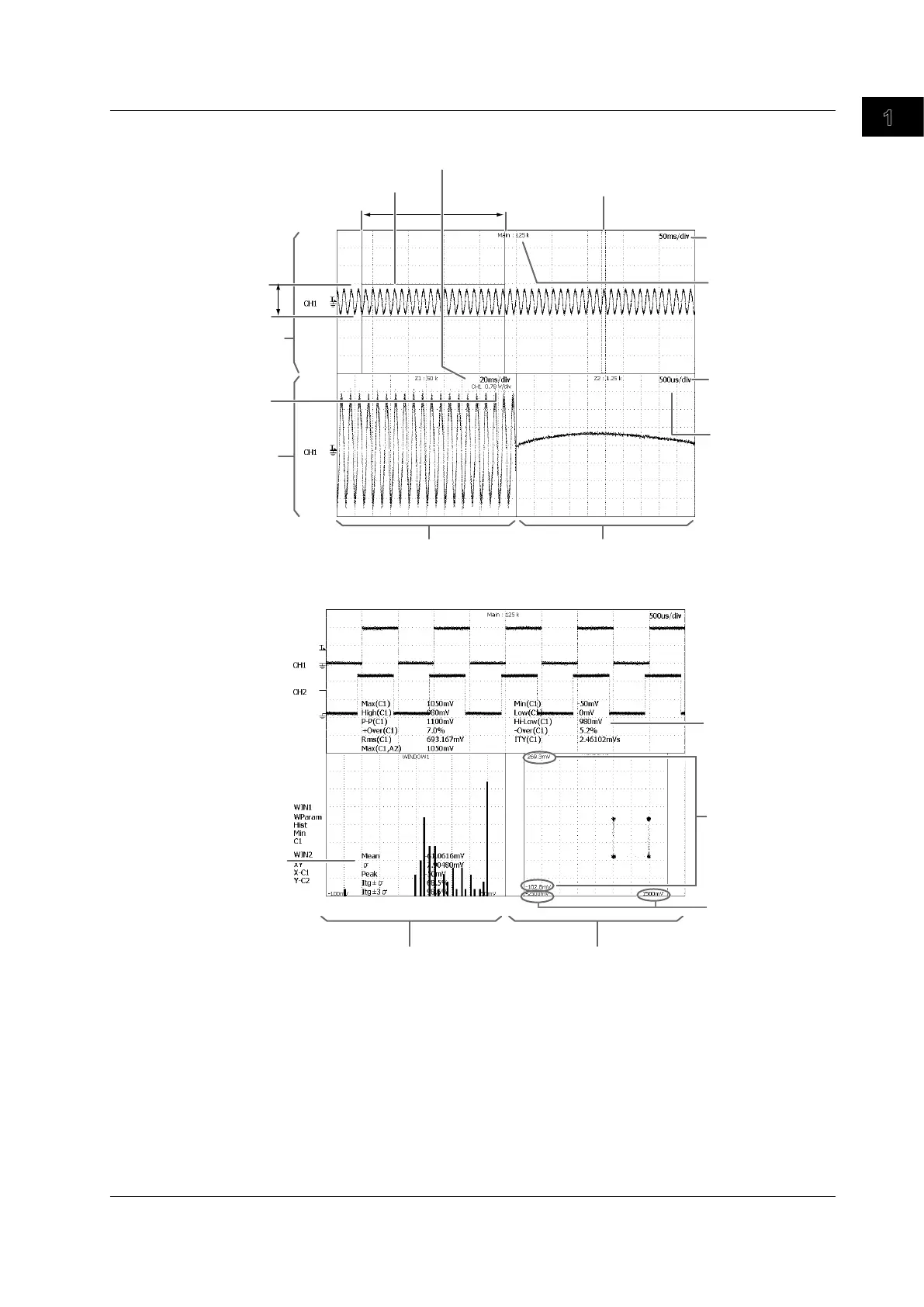

Screen Displaying Zoom Waveforms
X-axis of Z1
zoom range
Y-axis of Z1
zoom range
T/div of the normal
waveform
Zoom position of the zoom waveform Z1
T/div of Z2
Normal waveform
area
Zoom waveform
area
Z1 waveform area Z2 waveform area
V/div of Z1
V/div of Z2
Displayed only if the
waveform is zoomed
vertically
Displayed record
length of the Normal
waveform
Zoom position of the zoom waveform Z2
T/div of Z1
Screen Displaying the Analysis Result
Analysis results
WINDOW 1
(analysis screen 1)
WINDOW 2
(analysis screen 2)
Waveform parameter
measurements
X-axis scale of
XY waveform
Y-axis scale of
XY waveform
1.3 Screen Display
