Setting the State Condition
6.

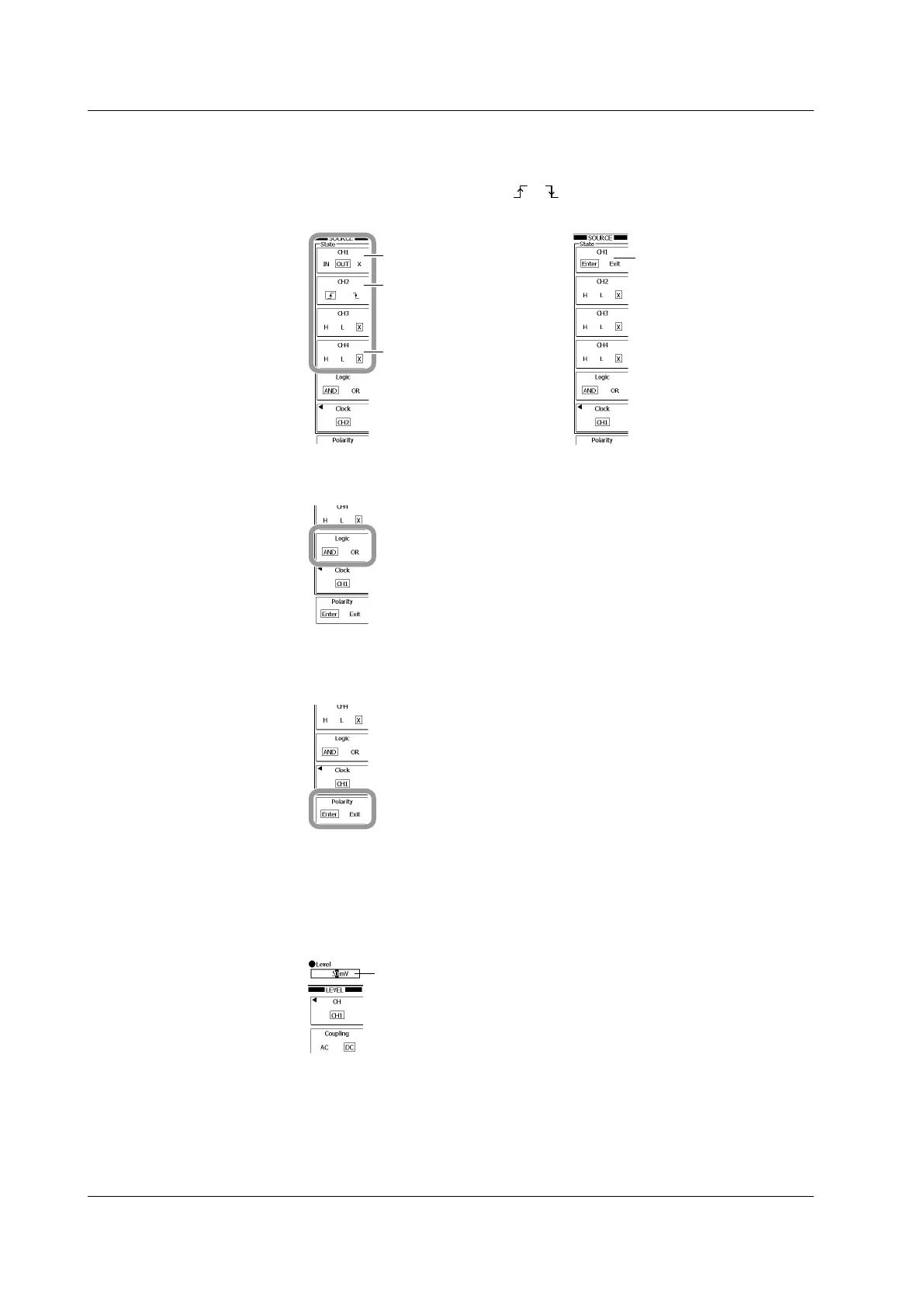

Press each signal soft key to select H, L, or X.
• When the window comparator is ON, select IN, OUT, or X.
• For the clock source signal, select
or . When the window comparator is ON, select
Enter or Exit.
When the window comparator
is ON
Clock source with window
comparator turned OFF
When the window comparator
is OFF
Clock source with window
comparator turned ON
Selecting the Logic
7.
Press the Logic soft key to select AND or OR.
Selecting the False-to-True Condition Change or the True-to-False
Condition Change
8.
Press the Polarity soft key to select Enter or Exit.
Setting the Level
9.
Press LEVEL/COUPLING.
10.
Use the rotary knob to set the level for detecting the clock source high and low
levels or the state condition.
When the window comparator is ON, the trigger level is set to the window’s center position.
Level
Setting the Trigger Coupling, HF Rejection, Trigger Hysteresis, and
Window Comparator
11.
Set the items according to the procedure given in section 6.5.
Setting the Holdoff
12.
Set the items according to the procedure given in section 6.4.
6.8 Activating a Trigger on a State Condition
