6-46
IM 701310-01E

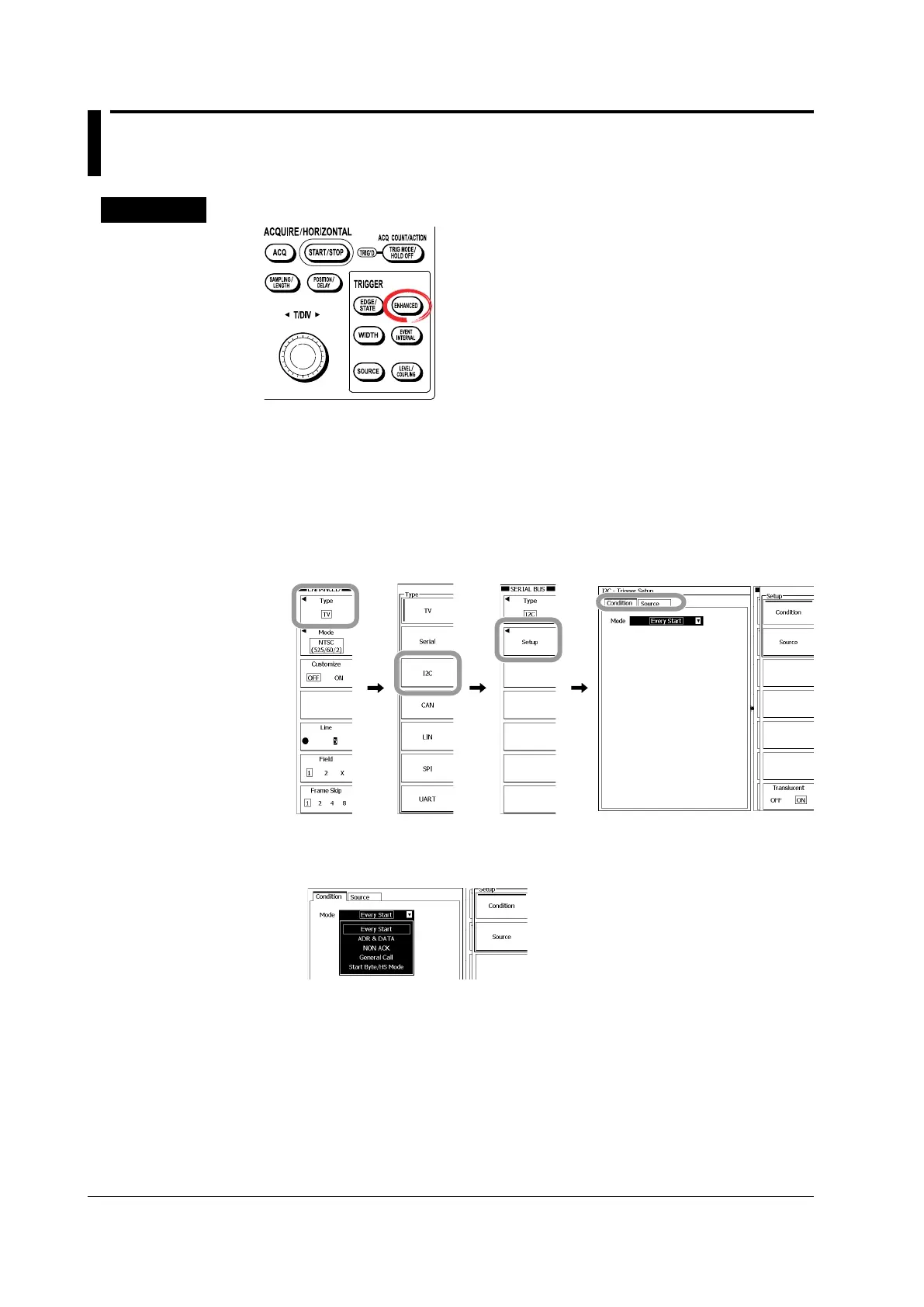

6.15 Triggering on an I
2
C Bus Signal
Procedure
1.
Press ENHANCED.
2.
Press these soft keys: Type > I2C > Setup.
The Setup dialog box appears.
Selecting the Mode
3.
Use the rotary knob and SET to select the Condition tab.
You can also press the Condition soft key to select the tab.
4.
Use the rotary knob and SET to select the mode from Every Start to Start Byte/
HS Mode.
Proceed to the steps on the pages indicated below according to the selected mode.
• Every Start: Step 10 on page 6-49
• ADR & DA
TA: Step 5 on page 6-47
•
NON ACK: Step 5 on page 6-48
• General Call: Step 6 on page 6-48
•
Start Byte/HS Mode: Step 8 on page 6-48
To Next Page
