Setting the Source Bit Rate, Sample Point, Trigger Level, Hysteresis, and
Recessive Level
12.
Use the rotary knob and SET to select the Source tab.
You can also press the Source soft key to select the tab.

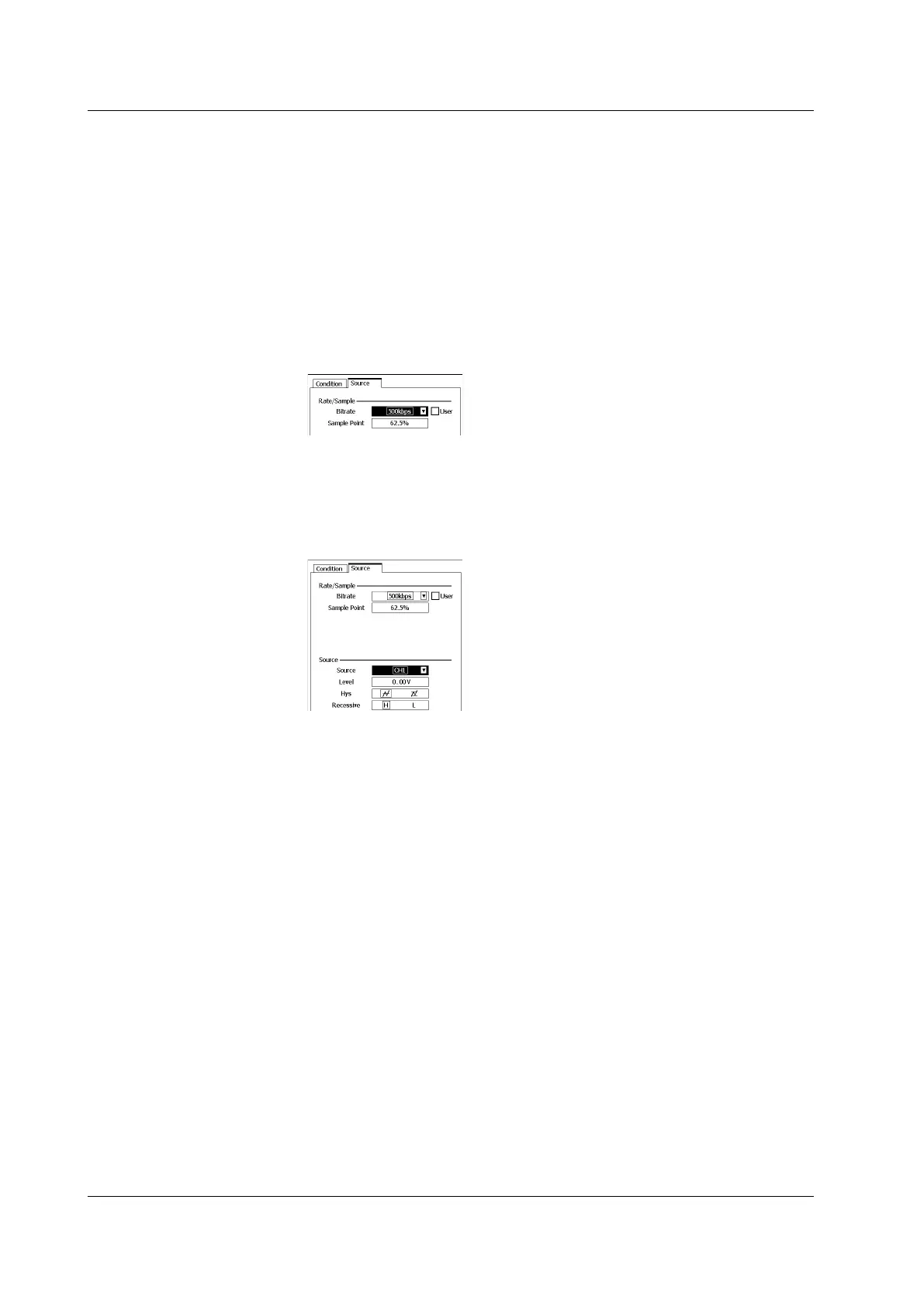

Setting the Bit Rate and Sample Point
13.
Use the rotary knob and SET to select the bit rate from 1Mbps to 33.3kbps.
If you select the
User
check box, you will be able to set the bit rate from 10.0kbps to
1.000Mbps using the rotary knob and SET.
14.
Use the rotary knob and SET to set the sample point to a value from 18.8 to
90.6%.
Setting the Trigger Level, Hysteresis, and Recessive Level
15.
Use the rotary knob and SET to select the source from CH1 to CH4.
16.
Use the rotary knob and SET to set the level and hysteresis.
17.
Use the rotary knob and SET to set Recessive to H or L.
6.16 Triggering on a CAN Bus Signal
