Selecting a GO/NO-GO Determination Condition
19.

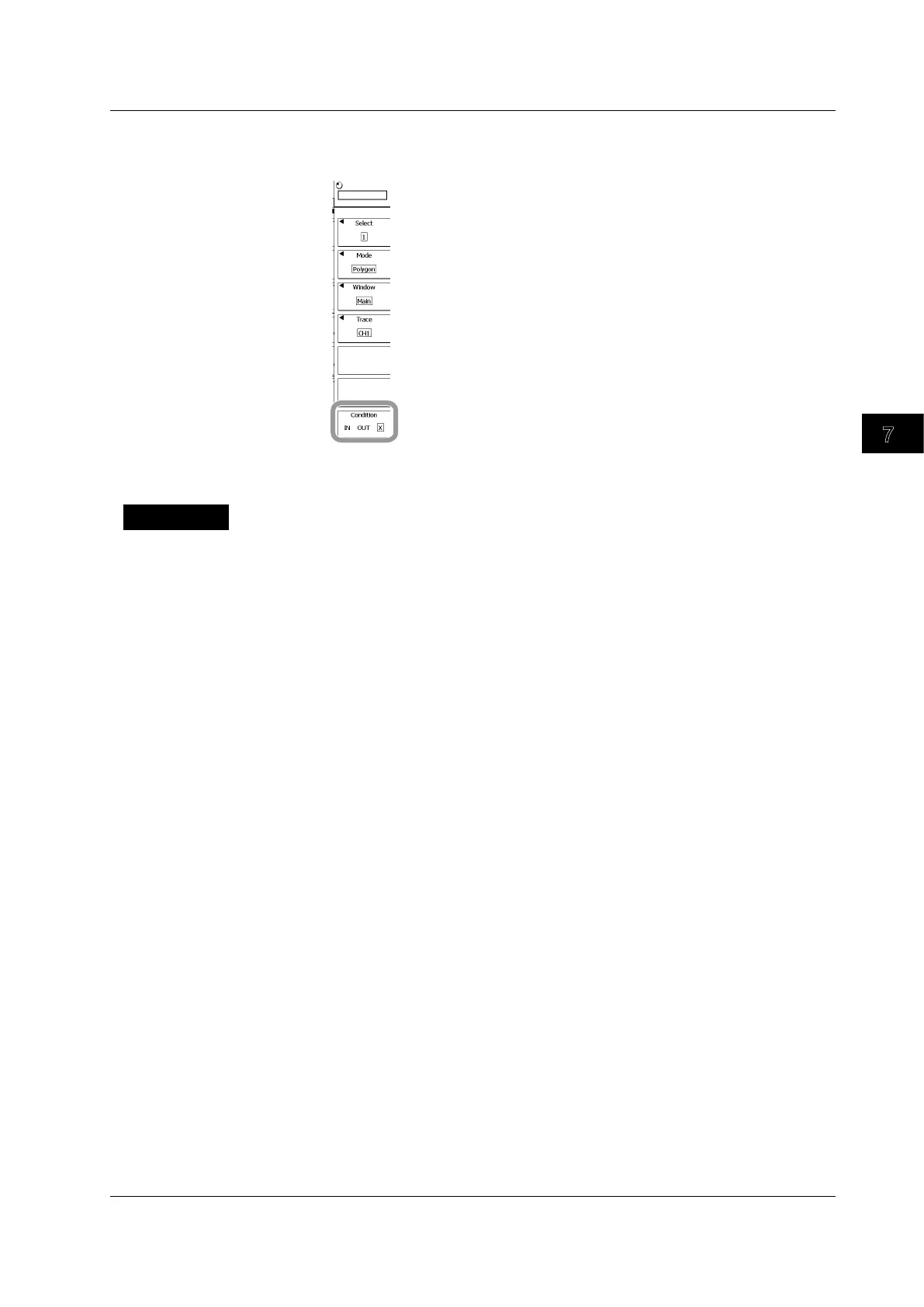

Press the Condition soft key to select IN, OUT, or X.
Repeat steps 12 to 19 for GO/NO-GO conditions 1 to 4 as necessary.
Explanation
The DL9000 returns GO/NO-GO results depending on whether or not the source
waveform is in the polygonal zone you created on a PC and loaded onto the DL9000.
Loading a Polygon Image
You must create a polygon image file on a PC using the appropriate software, and
then load it onto the DL9000 before you can use a polygonal zone for GO/NO-GO
determination.
GO/NO-GO Condition Number
You can choose to configure a GO/NO-GO condition from 1 to 4.
Source Window
• Main: Sets the main waveform as the source.
• Zoom1: Sets the waveform in zoom box 1 as the source.
• Zoom2: Sets the waveform in zoom box 2 as the source.
• XY1: Sets the waveform in the XY1 window as the source.
• XY2: Sets the waveform in the XY2 window as the source.
Source Waveform
You can choose a waveform from CH1 to CH4 or from M1 to M4.
GO/NO-GO Determination Condition
• IN: The DL9000 returns a no-go result when the source waveform is within the GO/
NO-GO determination zone.
• OUT
: The DL9000 returns a no-go result when the source waveform is outside of the
GO/NO-GO determination zone.
• X: GO/NO-GO determination does not take place.
7.12 Setting Polygonal Zone GO/No-Go Determination Conditions
