7-48

IM 701310-01E

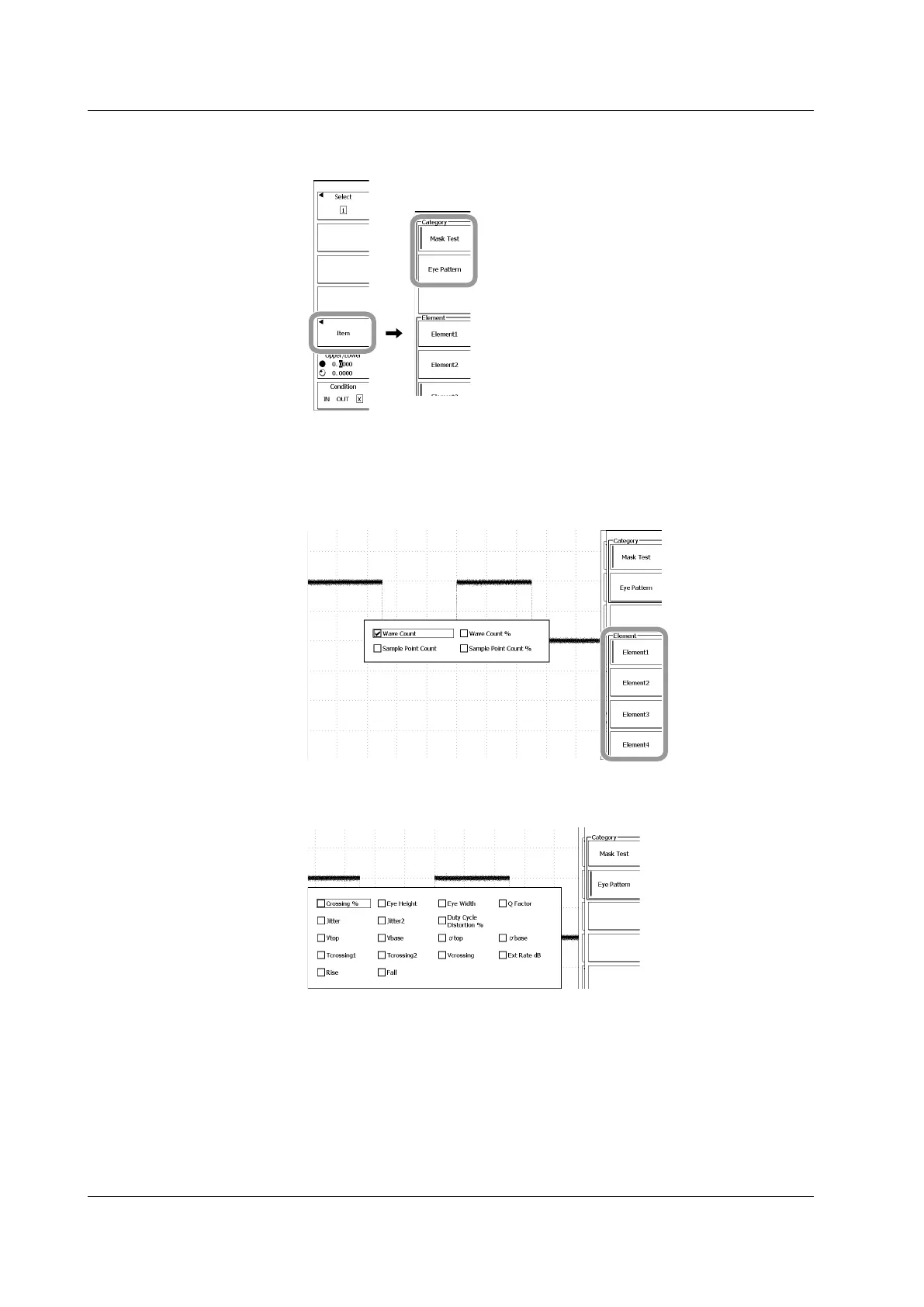

Setting the Target

Press the Item soft key.

• Setting Mask Test Options

Press the soft key that corresponds to the appropriate element.

Use the rotary knob and SET to select the test items.

Proceed to step 9.

• Setting Eye Pattern Options

Use the rotary knob and SET to set the eye pattern options.

Press ESC.

7.16 Setting Telecom Test GO/NO-GO Determination Conditions
