Setting Constants
6.

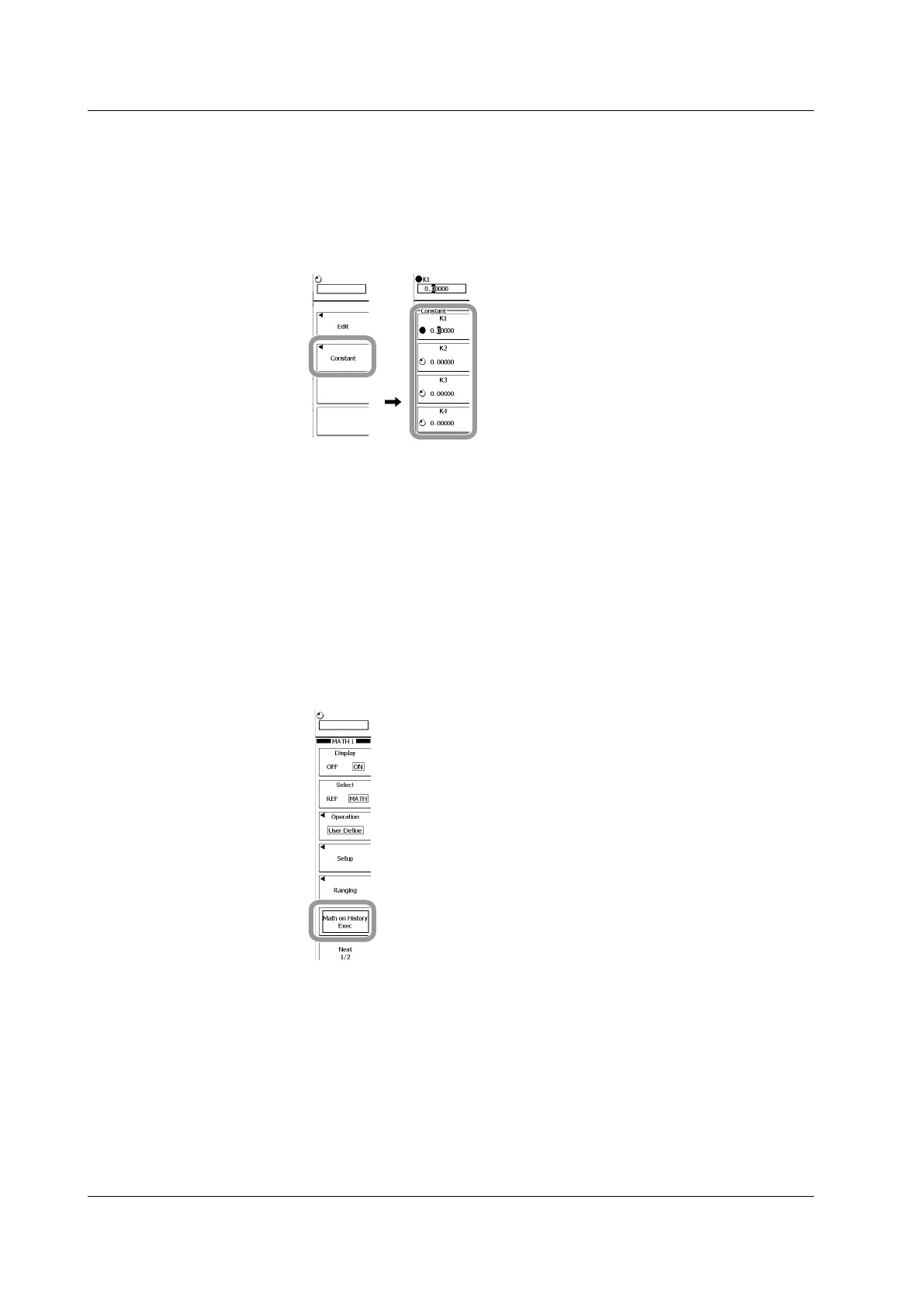

Press the Constant soft key.
7.
Press a soft key from K1 to K4 to assign the jog shuttle for the constant you wish
to set.
8.
Use the rotary knob to set the constant.
9.
Press ESC to return to the previous screen.
Setting the Unit and Display Range
Carry out steps 6 to 13 in section 9.1.
10.
Press ESC to return to the previous screen.
Executing the Computation on All History Waveforms
11.
To perform the specified computation on all history waveforms, press the Math
on History Exec soft key. The computation is executed, and the Math on History
Exec soft key changes to Abort.
T
o cancel the computation, press the Abort soft key
. The computation is aborted,
and the Abort soft key changes to Math on History Exec.
9.10 User-Defined Computation (Optional)
