11-18

IM 701310-01E

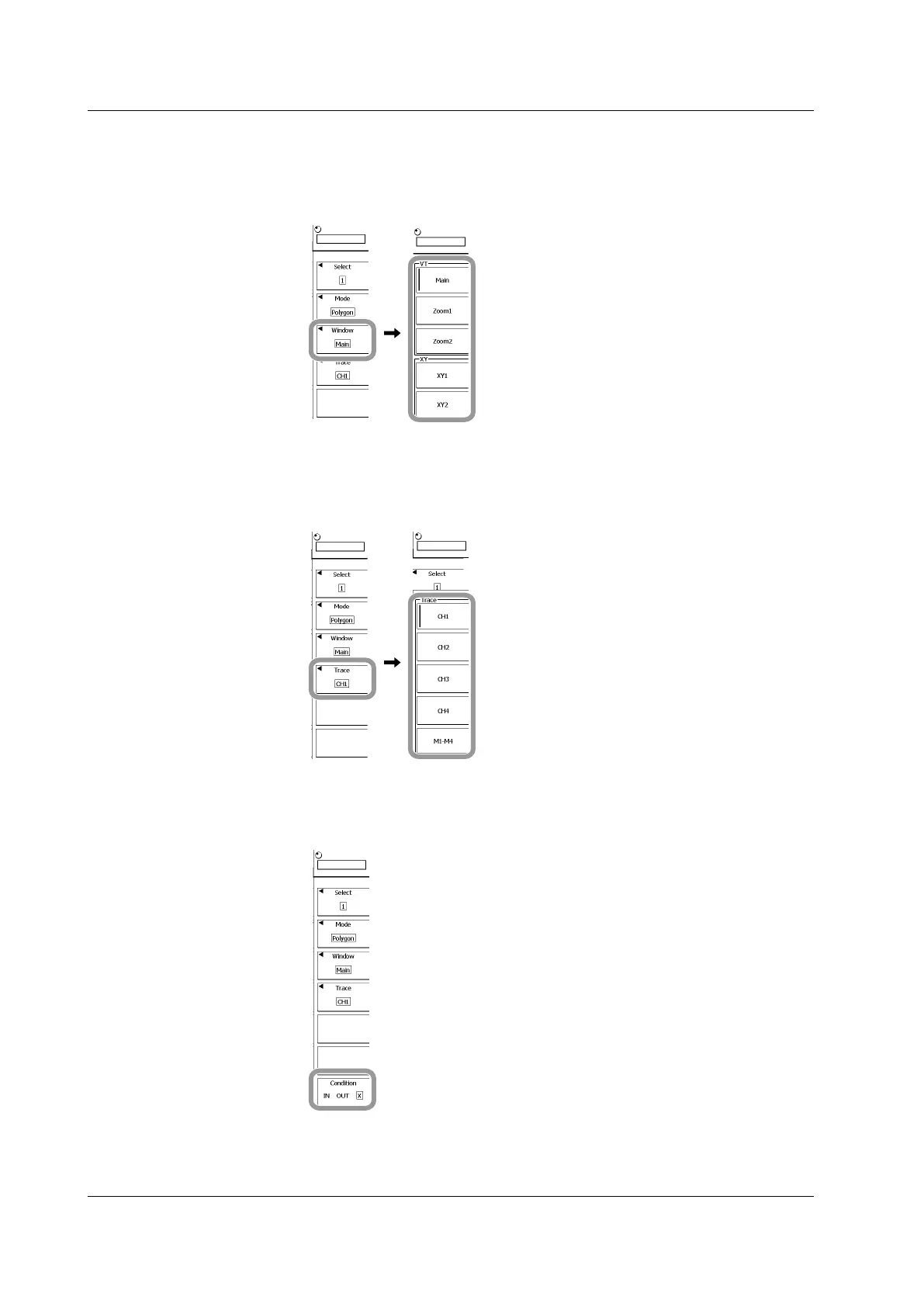

Selecting a Search Source Window

17.

Press the Window soft key.

18.

Press the appropriate soft key from Main to XY2 to select the window you want to

search.

Selecting a Search Source Waveform

19.

Press the Trace soft key.

20.

Press the appropriate channel soft key.

To select a channel from M1 to M4, press the

M1-M4

soft key first.

Selecting a Search Criterion

21.

Press the Condition soft key, to select IN, OUT, or X.

22.

Press ESC to return to the history search menu.

Repeat steps 14 to 22 for search conditions 1 to 4 as necessary.

23.

Press ESC to return to the search execution menu.

11.4 Searching History Waveforms Using a Polygonal Zone (POLYGON History Search)
