YOKOGAWA DL9140L

11-28
IM 701310-01E

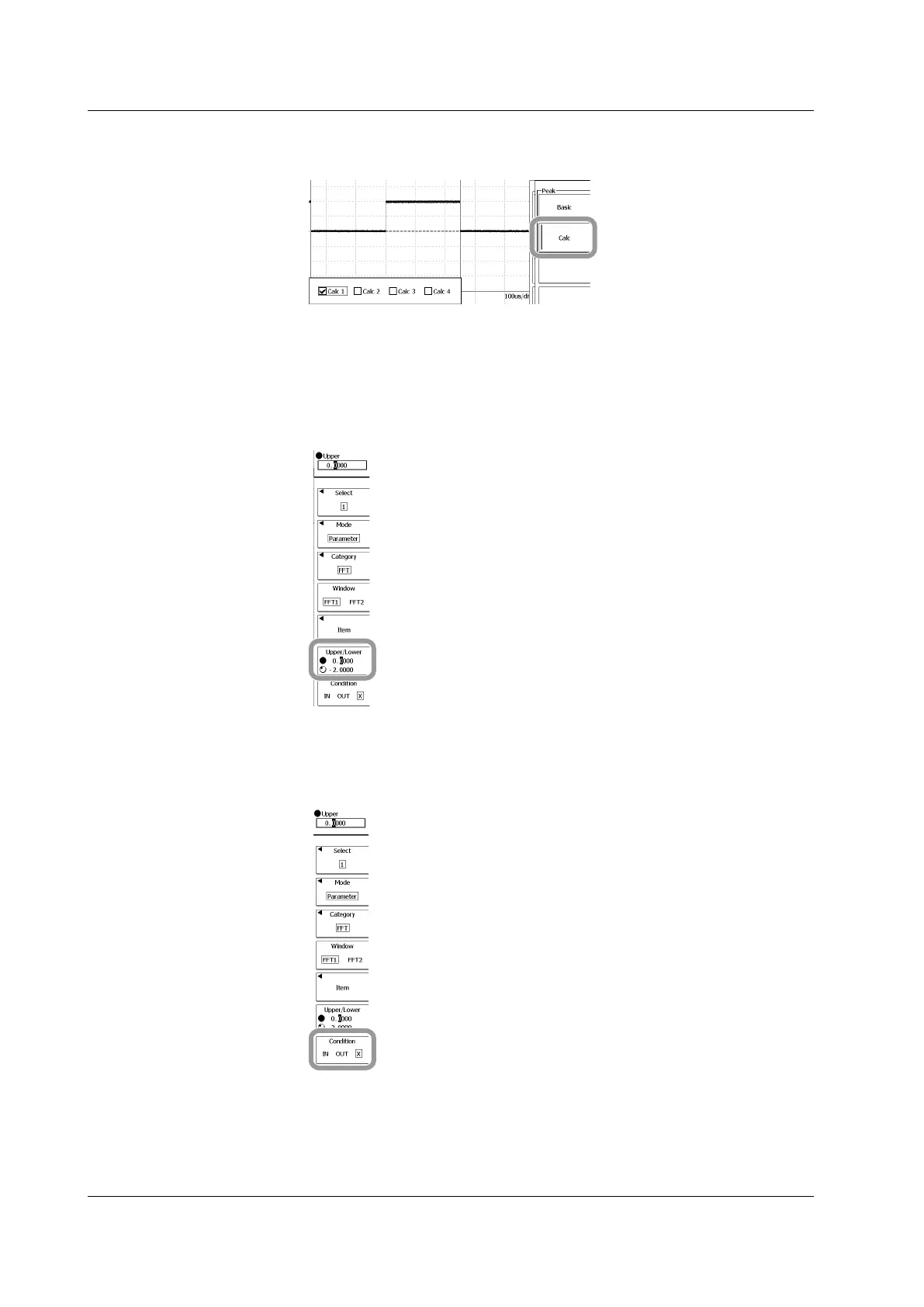

• Selecting a Calculation
13.
Use the rotary knob and SET to select a calculation.
14.
Press ESC.
Setting the Upper and Lower Limits for the Selected FFT Parameters
15.
Press the Upper/Lower soft key to select the limit that you will set.
16.
Use the rotary knob to set the upper and lower limits.
Selecting a Search Criterion
17.
Press the Condition soft key, to select IN, OUT, or X.
18.
Press ESC to return to the history search menu.
Repeat steps 5 to 18 for search conditions 1 to 4 as necessary.
19.
Press ESC to return to the search execution menu.
11.6 Searching History Waveforms Using FFT Parameters (FFT History Search)
