12-6
IM 701310-01E
Explanation
You can print the screen image to a USB printer with the USB interface.
USB Peripheral Connectors
To connect a USB printer to the DL9000, connect a USB cable to the USB Peripheral
connector. There are two USB peripheral connectors (ports).
Pin No. Signal Name
1 VBUS: + 5 V
2 D –: – Data
3 D +: + Data
4 GND: Ground
Printers That Can Be Used
USB printers conforming to USB Printer Class Version 1.0.
Note
• Connect only the printers that are allowed.
• For details on USB printers that have been tested for compatibility, contact your nearest
YOKOGAWA dealer.

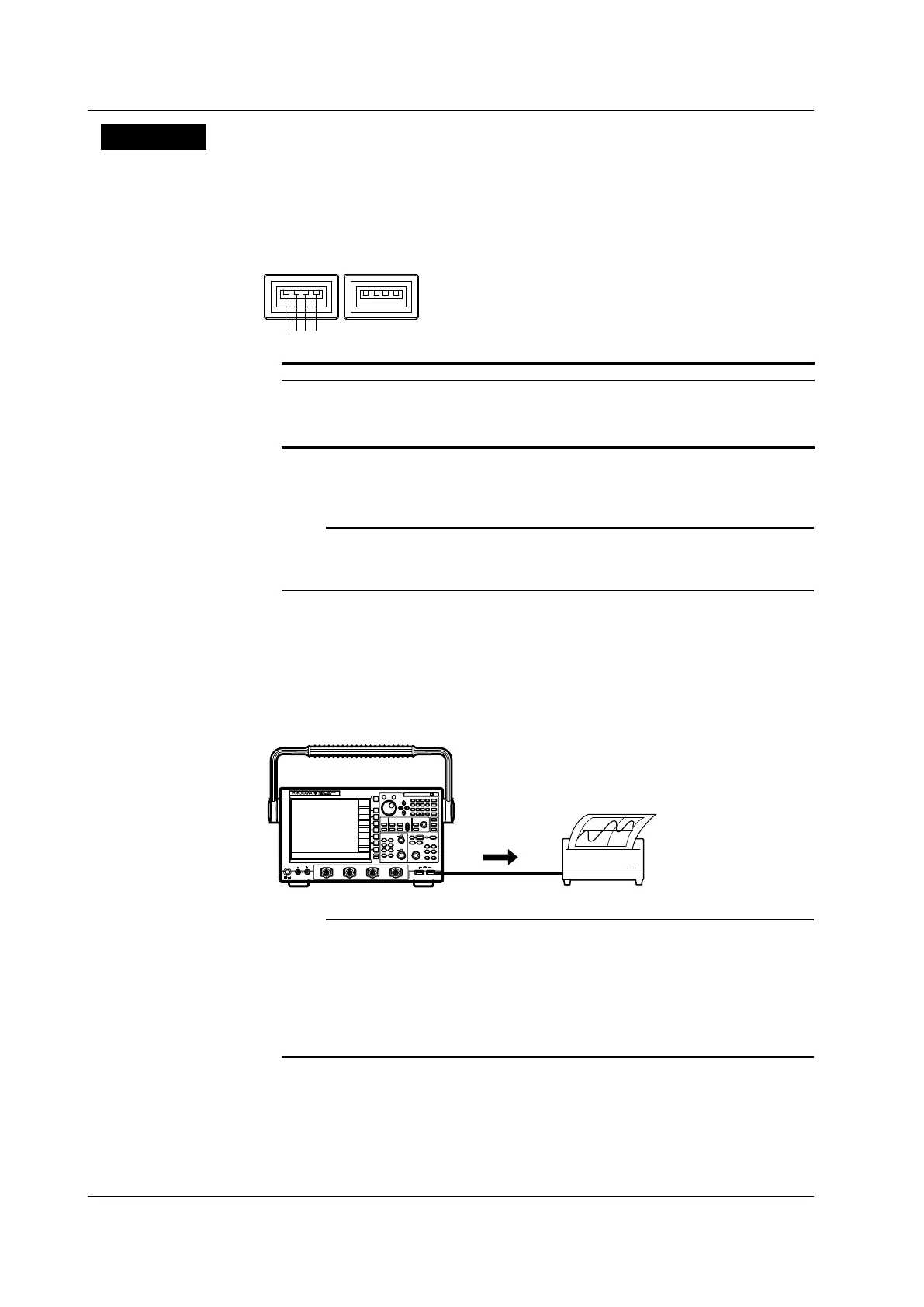

Connection Procedure
When connecting a USB printer, directly connect the printer to the DL9000 using a USB
cable as shown below. You can connect the USB cable regardless of whether the power
to the DL9000 is ON or OFF (supports hot-plugging). Connect the type A connector of the
USB cable to the DL9000; connect the type B connector to the printer. When the power
switch is ON, the printer is detected and enabled after it is connected.
USB connection
USB printer
7 8 9
BS
EXP
CLEAR
M
D E F X
k m
u n p
4 5 6
1 2 3
0
+/-
CA B
PUSH
DL9000
Note
• Connect the printer directly without going through a hub.
• Do not connect USB devices other than a compatible USB keyboard, USB mouse, USB
printer, and USB storage to the USB connector for connecting peripheral devices.
• Do not connect multiple printers to the USB connector for connecting peripheral devices.
• Never turn OFF the printer or remove the USB cable while the printer is printing.
• Do not connect or disconnect the USB cable after the power is turned ON until key operation
is ready (approximately 20 to 30 s).
12.3 Printing Using a USB Printer
