13-7

IM 701310-01E

Saving and Loading Measurement Data

App

Index

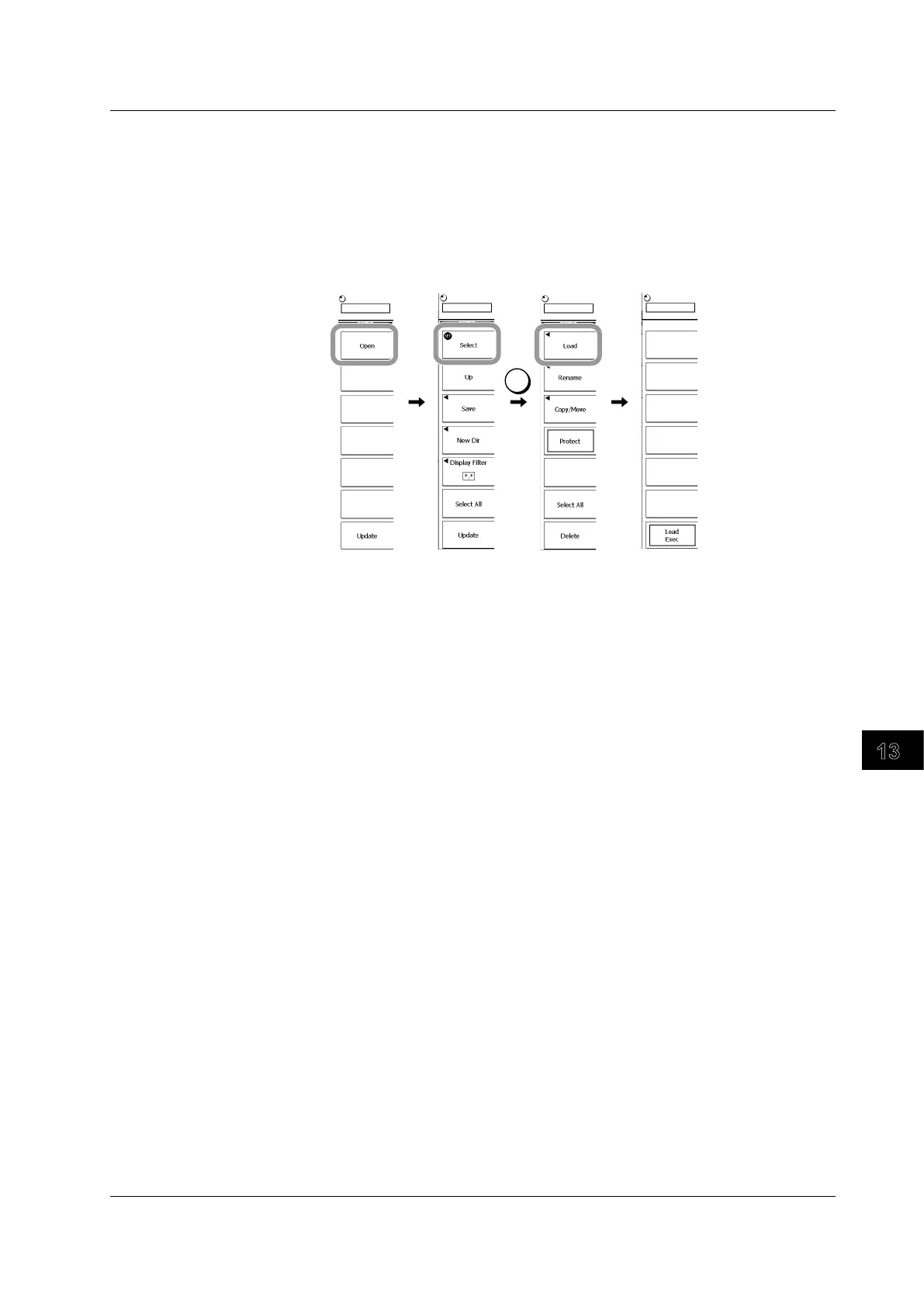

Loading the Setup Data

Press FILE.

Using the Up and Open soft keys and the rotary knob, select the file to be

loaded.

Press the Select soft key or SET.

A menu of file operations appears.

Press the Load soft key.

SET

Executing the Load

Press the Load EXEC soft key.

The selected file is read from the directory indicated in Path=...... At the same time, the Load

EXEC soft key changes to the Load Abort soft key.

Aborting a Load

Press the Load Abort soft key.

The load operation is aborted. At the same time, the Load Abort soft key changes to the

Load EXEC soft key.

13.4 Saving/Loading the Setup Data
