1-5
IM DLM5058-03EN
1
Component Names and Functions

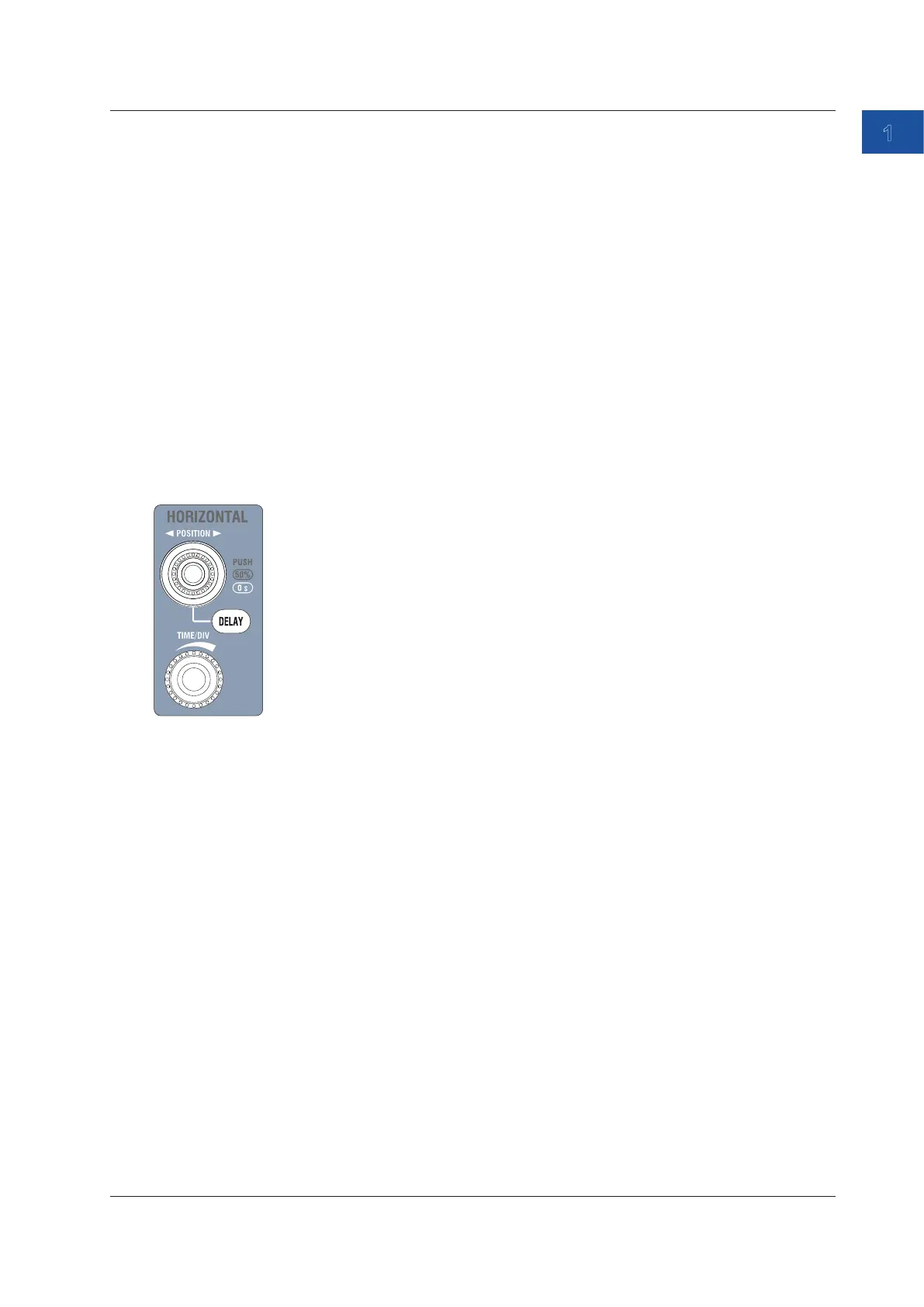

Horizontal Axis
◄POSITION► Knob
Use this knob to move the center position (trigger position) when you change the time range. When
you move the trigger position, the ratio of the displayed data before the trigger point (the pre-trigger
section) to the data after the trigger point (the post-trigger point) changes. This knob has a push
switch. You can press the knob to reset the trigger position to 50%.
DELAY Key
When you press the DELAY key, the key illuminates. Then you can set the trigger delay using the
◄POSITION► knob.
You can reset the trigger delay to its default value (0 s) by pressing the ◄POSITION► knob when
the DELAY key is illuminated.
TIME/DIV Knob
Use this knob to set the time-axis scale. If you change the scale while signal acquisition is stopped,
the waveform is expanded or reduced horizontally. If you restart signal acquisition, the instrument
acquires signals using the new time-axis scale.
1.2 Keys and Knobs
To Next Page
