4-4

IM DLM5058-03EN

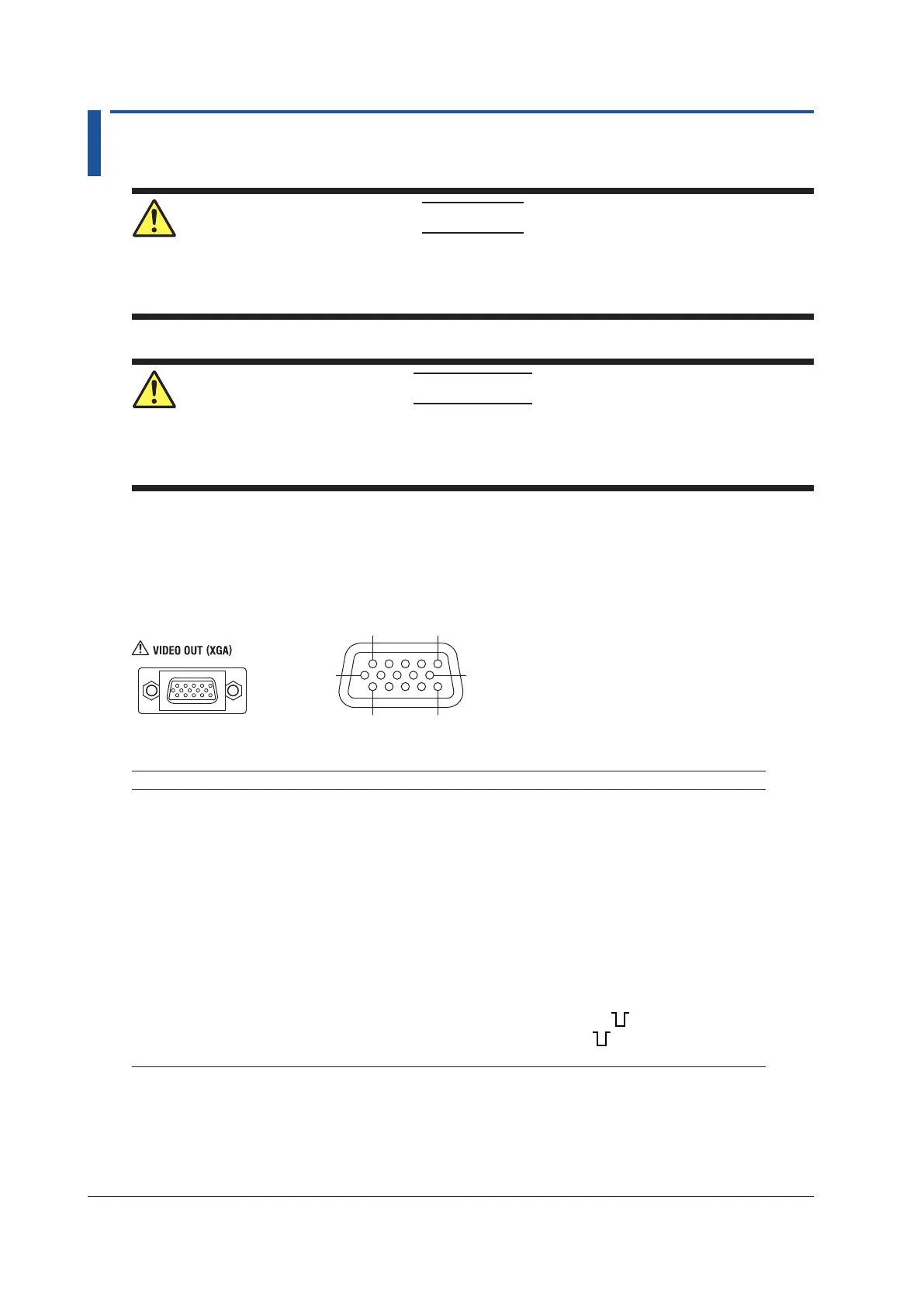

4.3 Video Signal Output (VIDEO OUT)

CAUTION

• Connect the cable after turning OFF this instrument and the monitor.

• Do not short the VIDEO OUT connector or apply an external voltage to it. If you do, the

instrument may malfunction.

French

ATTENTION

• Connecter le câble après avoir mis cet instrument et le moniteur hors tension.

• Ne pas mettre le connecteur VIDEO OUT en court-circuit et ne pas y appliquer une tension

externe. Si vous le faites, l’instrument risque de ne pas fonctionner correctement.

Video Signal Output Connector (VIDEO OUT)

You can use video signal output to display the instrument’s screen on a monitor. Any multisync

monitor that supports XGA can be connected.

D-Sub 15-pin receptacle

Pin No. Signal Name Specifications

1 Red 0.7 Vp-p

2 Green 0.7 Vp-p

3 Blue 0.7 Vp-p

4 −

5 GND

6 GND

7 GND

8 GND

9 −

10 GND

11 −

12 −

13 Horizontal sync signal

Approx. 48.3 kHz, TTL negative logic

14 Vertical sync signal

Approx. 60 Hz, TTL negative logic

15 −
