App-16
IM DLM5058-03EN
Appendix 3 Block Diagram

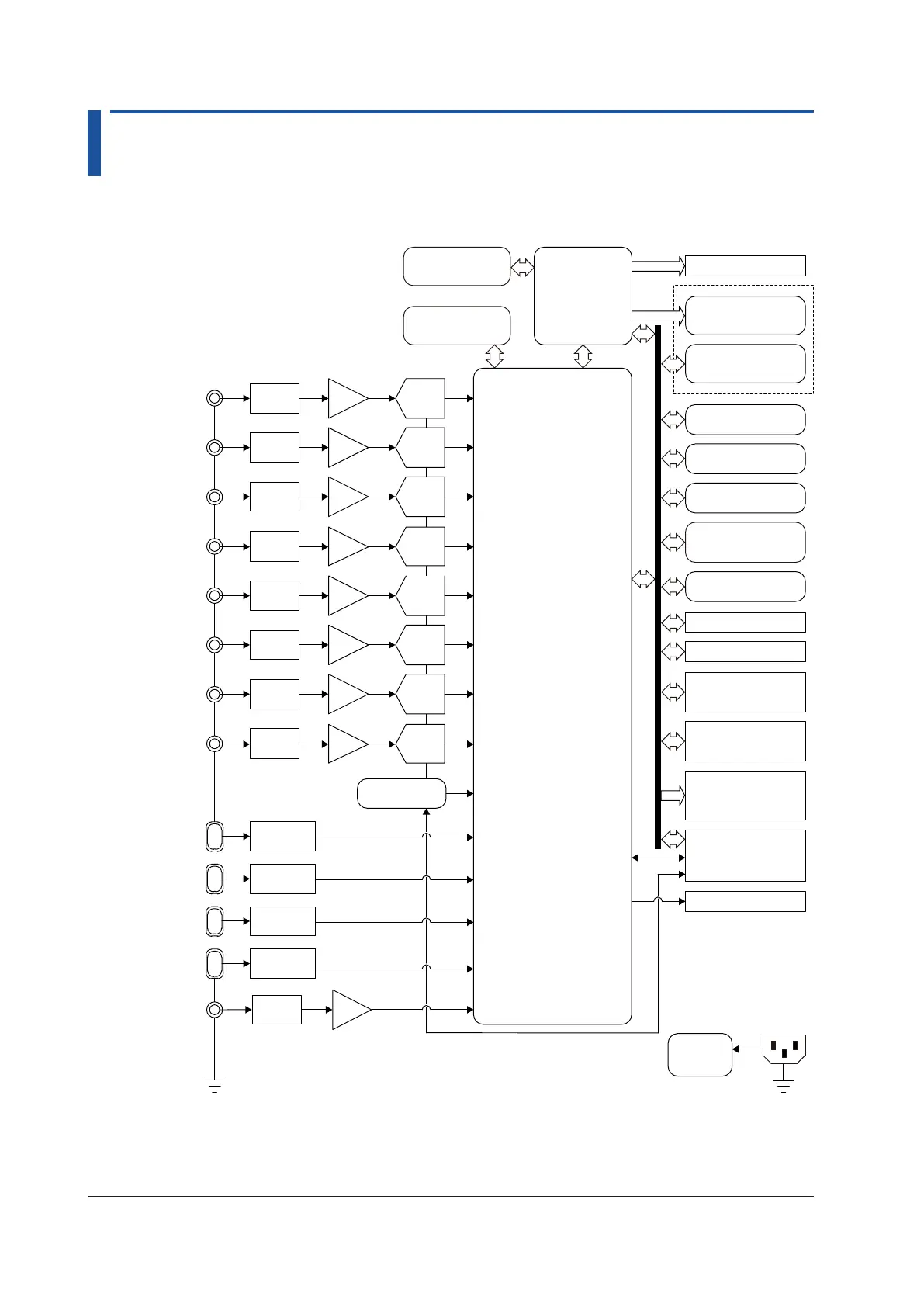

Block Diagram of the Instrument
CH1
CH2
CH3
CH4
LOGIC A
External trigger
input
A/DATT
AMP
Buffer
ATT
CMP
Time base
A/D
ATT
AMP
A/D
ATT
AMP
A/D
ATT
AMP
Display
processing
circuit
Data processing circuit
Acquisition
memory
Display memory
CPU
Main memory
LCD
Touch panel
Built-in printer
(option)
USB
(for peripheral devices)
USB
(For connecting to a PC)
Ethernet
GP-IB (option)
Internal storage
Keyboard
Video signal output
GO/NO-GO
determination output
Power
supply
Trigger output
* CH5 to CH8 are available on the DLM5038 and DLM5058.
LOGIC B
CH5*
CH6*
CH7*
CH8*
A/DATT
AMP
A/D
ATT
AMP
A/D
ATT
AMP
A/D
ATT
AMP
Buffer
LOGIC C
(option)
Buffer
LOGIC D
(option)
Buffer
SYNC
