3.3 Entering Values and Strings
Entering Values
Using the Dedicated Knobs
You can use the following dedicated knobs to enter values directly.
• POSITION knob (VERTICAL, HORIZONTAL)
• SCALE knob (VERTICAL)
• TIME/DIV knob
• LEVEL knob (TRIGGER)
• ZOOM magnification knob
Using the Jog Shuttle
Select the appropriate item using the soft keys, and change the value using the jog shuttle
and the SET key. This manual sometimes describes this operation simply as “using the jog
shuttle.”
Note
For items that you can set using the jog shuttle, you can reset them to their default values by pressing
the RESET key.
Using the Touch Panel

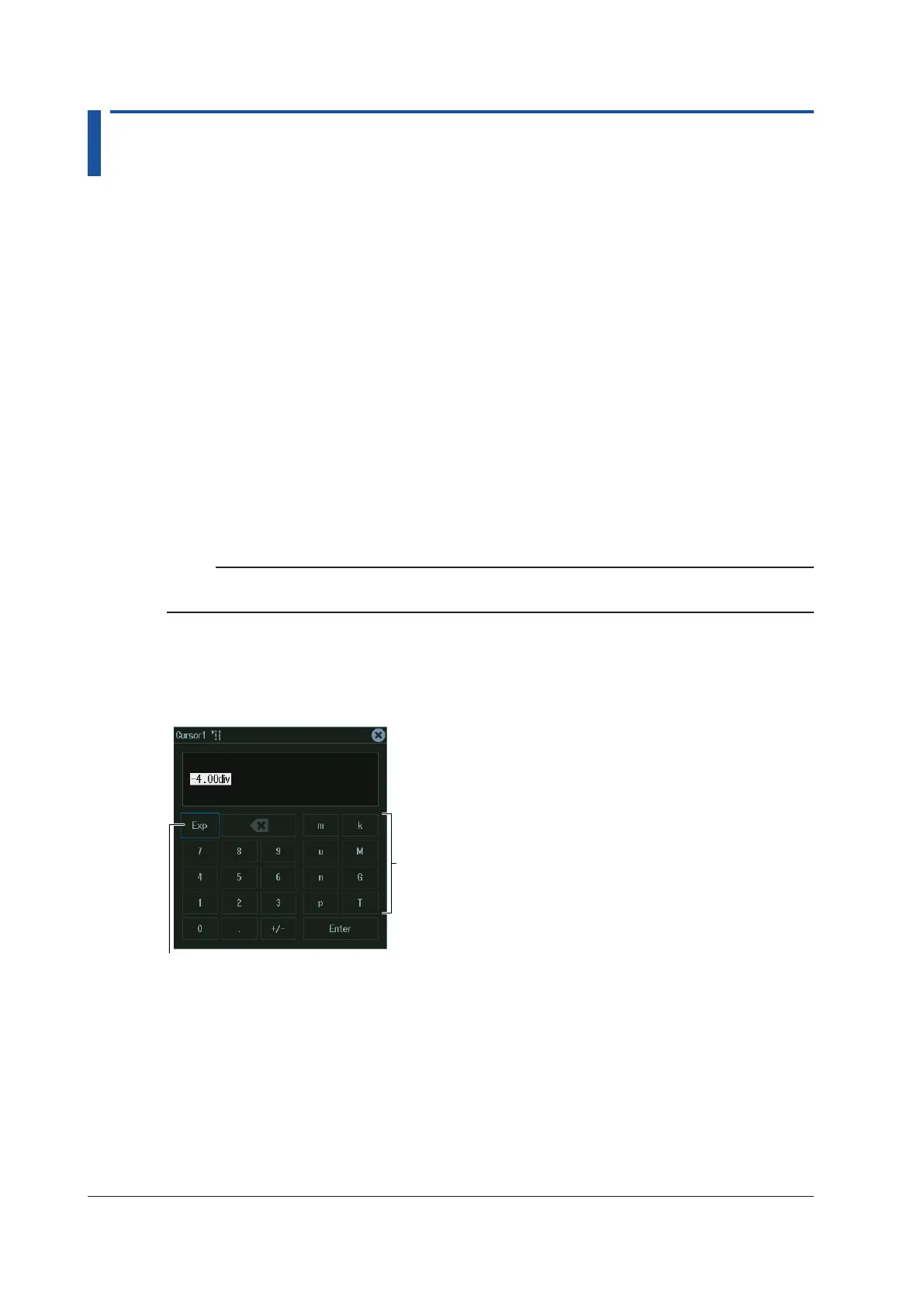

Use the numeric keypad that appears on the screen to enter values. After you enter the value,
tap a unit or Enter to confirm it.
Enter a unit.
