1-7
IM DLM5058-03EN
1
Component Names and Functions

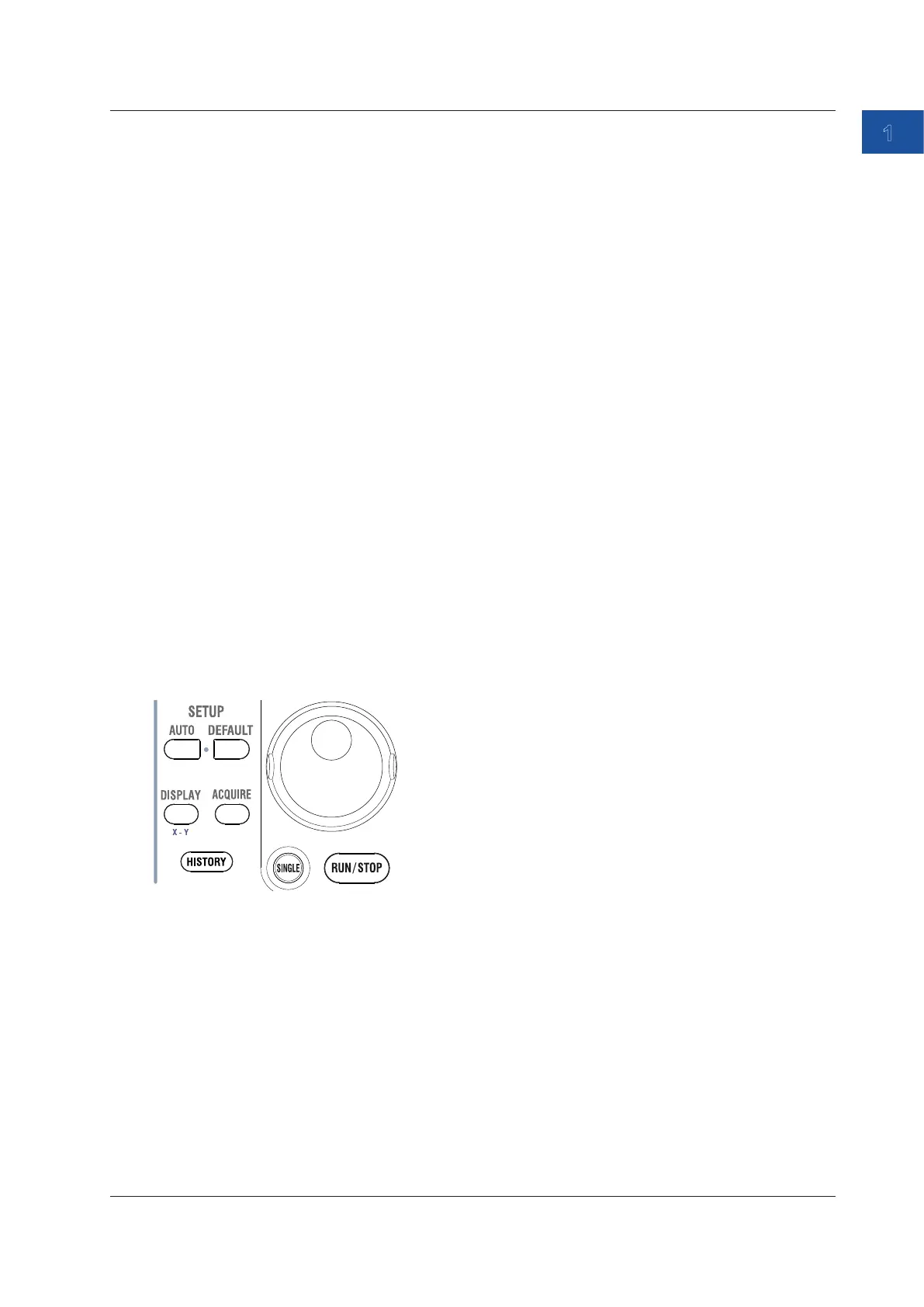

Waveform Acquisition and Display
SETUP Key
• AUTO Key
Press this key to automatically set values that correspond to the input signal. Undo appears in
the menu, and you can undo the settings made with this key.
• DEFAULT Key
Press this key to restore settings to their factory default values. Undo appears in the menu, and
you can undo the settings made with this key.
ACQUIRE Key
Press this key to display a menu for setting the signal acquisition mode.
RUN/STOP Key
Starts and stops signal acquisition according to the trigger mode. The key illuminates while the
instrument is acquiring signals.
SINGLE Key
Press this key to acquire a single waveform. In Average mode, the instrument acquires one
waveform that has been obtained by linearly averaging waveforms for the specified number of
times.
DISPLAY Key
Press this key to display a menu for configuring the display.
SHIFT + DISPLAY (X-Y) key
Press SHIFT and then press DISPLAY to display an X-Y display menu.
HISTORY Key
Press this key to display a menu for displaying and searching the history memory waveforms.
1.2 Keys and Knobs
To Next Page
