2-18
IM DLM5058-03EN
Explanation
Necessity of Probe Phase Correction
The phase of each probe is already corrected so as to approximately match the input capacitance
of the oscilloscope that the probe is intended to be used with. However, the input resistance and
input capacitance each of the input channels of each individual oscilloscope vary. This results in a
mismatch in the voltage divider ratio between low and high frequency signals and causes uneven
frequency characteristics.
There is a variable capacitor for adjusting the division ratio (trimmer) for high frequency signals on
the probe. To correct the phase, you must adjust this trimmer so that flat frequency characteristics
are obtained.
Be sure to correct the phase of a probe that you are using for the first time.
Because the input capacitance varies on each channel, probe compensation is always required
when the probe is switched from one channel to another.
Phase Compensation Signal
The following square wave signal is output from the signal output terminal for probe compensation
adjustment.
Frequency: Approx. 1 kHz
Amplitude: Approx. 1 V

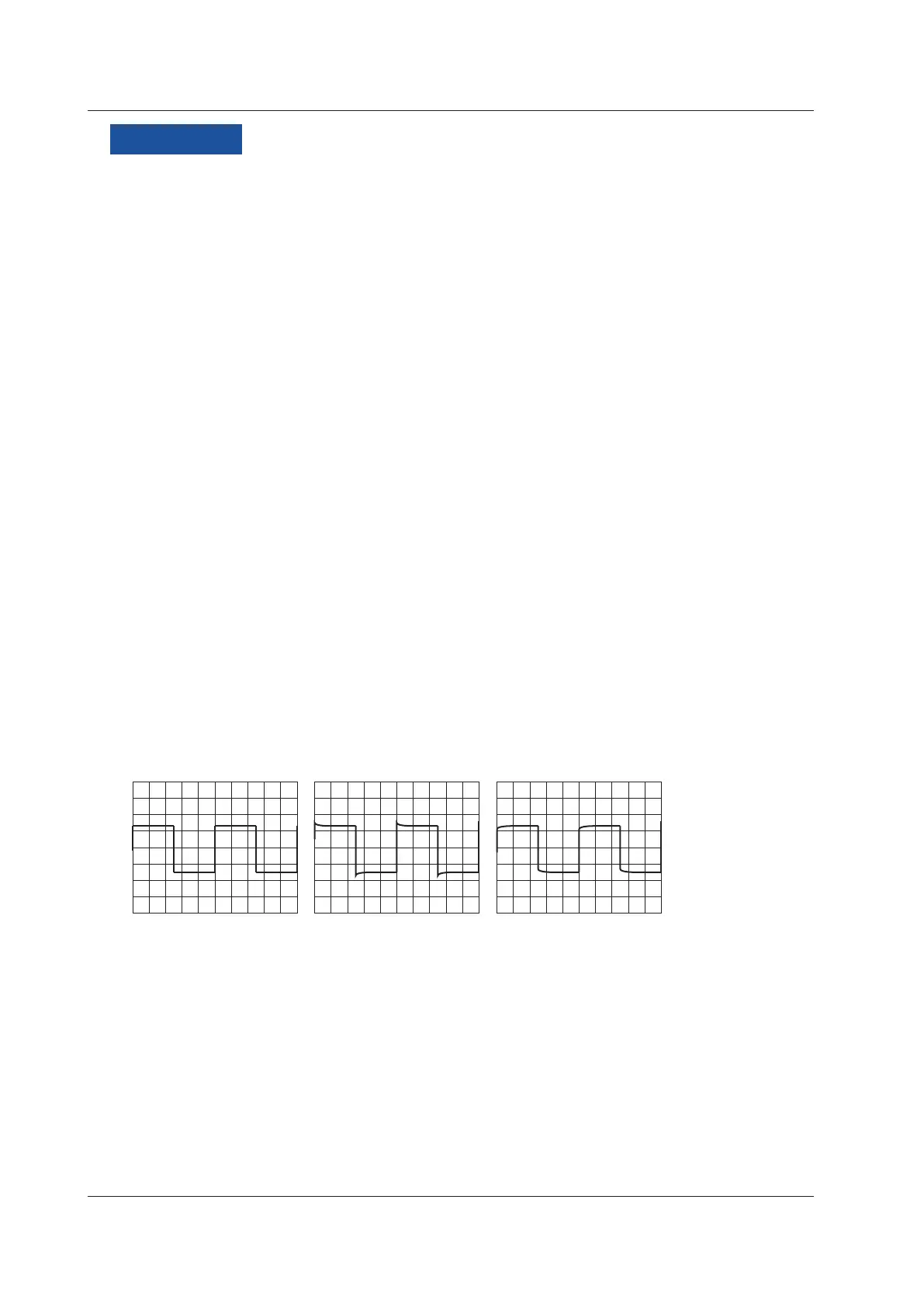

Differences in the Waveform due to the Phase Correction of the
Probe
Correct waveform Overcompensated
(The gain in the high
frequency region is
too high.)
Undercompensated
(The gain in the high
frequency region is
too low.)
2.5 Correcting a Probe Phase
