YOKOGAWA DPharp Series User Manual

<3. Operation>
3-2
IM 01C25T03-01E

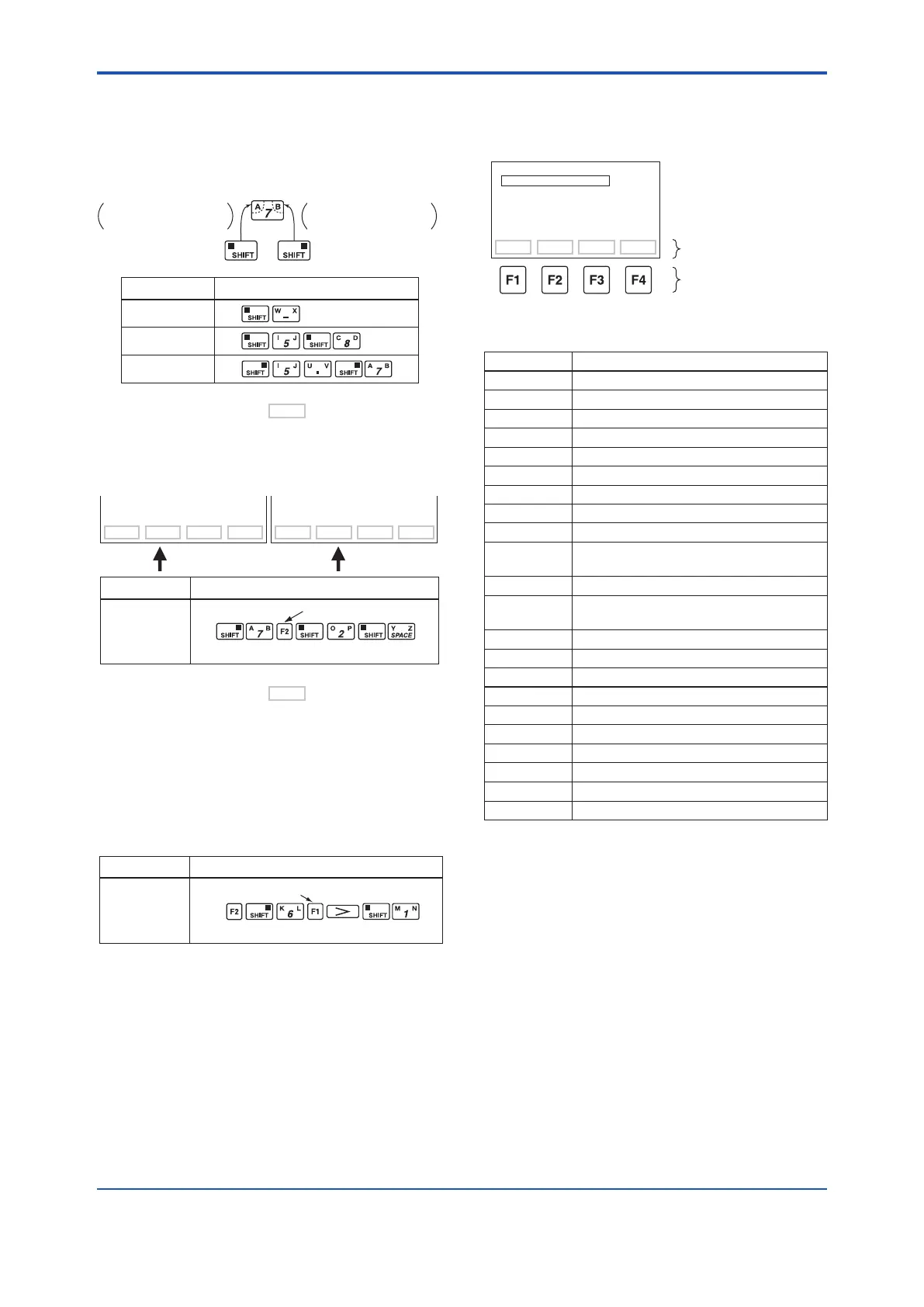

b. Entering Alphabetic Characters
Press either the left or right shift key and then an
alphanumeric key to enter the desired alphabetic
character. The shift key must be pressed each time
an alphabetic character is entered.
Entry Key-in sequence
W
IC
J. B
F0305.ai
Letter on left side of
the alphanumeric key
Letter on right side of
the alphanumeric key
Usethefunctionkey[F2]
CAPS
to select
uppercase and lowercase (for alphabetic characters
only). The case toggles between uppercase and
lowercaseeachtime[F2]CAPSispressed.
Entry
Boy
Key-in sequence
F0306.ai
CODE CAPS CLR ESC
Entering uppercase
CODE caps CLR ESC
Entering lowercase
( B ) ( y )( o )
to lower case
Usethefunctionkey[F1]
CODE
to enter symbols.
The following symbols will appear in sequence,
oneatatime,atthecursoreachtime[F1]CODEis
pressed:
/ . – , + * ) ( ’ & % $ # ” !
To enter characters next to these symbols, press
[>]tomovethecursor.
( / )
Entry
l/m
Key-in Sequence
F0307.ai
( m )( I )
symbol command
(2) Function Keys
The function command carried out by each function
key is displayed directly above the key.
MENU
A:DISPLAY
B:SENSOR TYPE
C:BASIC SETUP
D:AUX SET1
E:AUX SET2
G:ALARM SET
HOME SET ADJ ESC
Function commands
Function keys
F0308.ai
Function Command List
Command Function
ADJ Displays the ADJ menu
CAPS/caps Selects uppercase or lowercase
CODE Selects symbols
CLR Erases input data or deletes all data
DATA Updates parameter data
DEL Deletes one character
DIAG Calls the self-check panel
ESC Returns to the most recent display
HOME Displays the menu panel
NO Quits setup and returns to the previous
display
OK Proceeds to the next panel
PRAM Enters the parameter number setup
mode
SET Displays the SET menu
SLOT Returns to the slot selection panel
UTIL Calls the utility panel
*COPY Prints out parameters on display
*FEED Paper feed
*LIST Lists all parameters in the menu
*PON/POFF Automaticprintoutmodeonoro󰀨
*PRNT Changes to the print mode
*GO Starts printing
*STOP Cancels printing
* Available on BT200-P00 (with printer).
