3. Operation
The transmitter is equipped with BRAIN
communications capabilities, so that range
changes, Tag No. setup, monitoring of self-
diagnostic results, and zero point adjustment
can be handled remotely via the BT200 BRAIN
TERMINAL, the FieldMate Versatile Device
Management Wizard or the CENTUM CS
console. This section describes procedures for
setting parameters using the BT200. For further
information on the BT200, see the BT200 User’s
Manual (IM 01C00A11-01E).
IMPORTANT
Communication signal is superimposed on
analog output signal. It is recommended to set
alow-passlter(approximately0.1s)tothe
receiverinordertoreducetheoutpute󰀨ect
from communication signal. Before online-
communication,conrmthatcommunication
signaldoesnotgivee󰀨ectontheuppersystem.
3.1 BT200 Operating Procedures
3.1.1 Key Layout and Screen Display

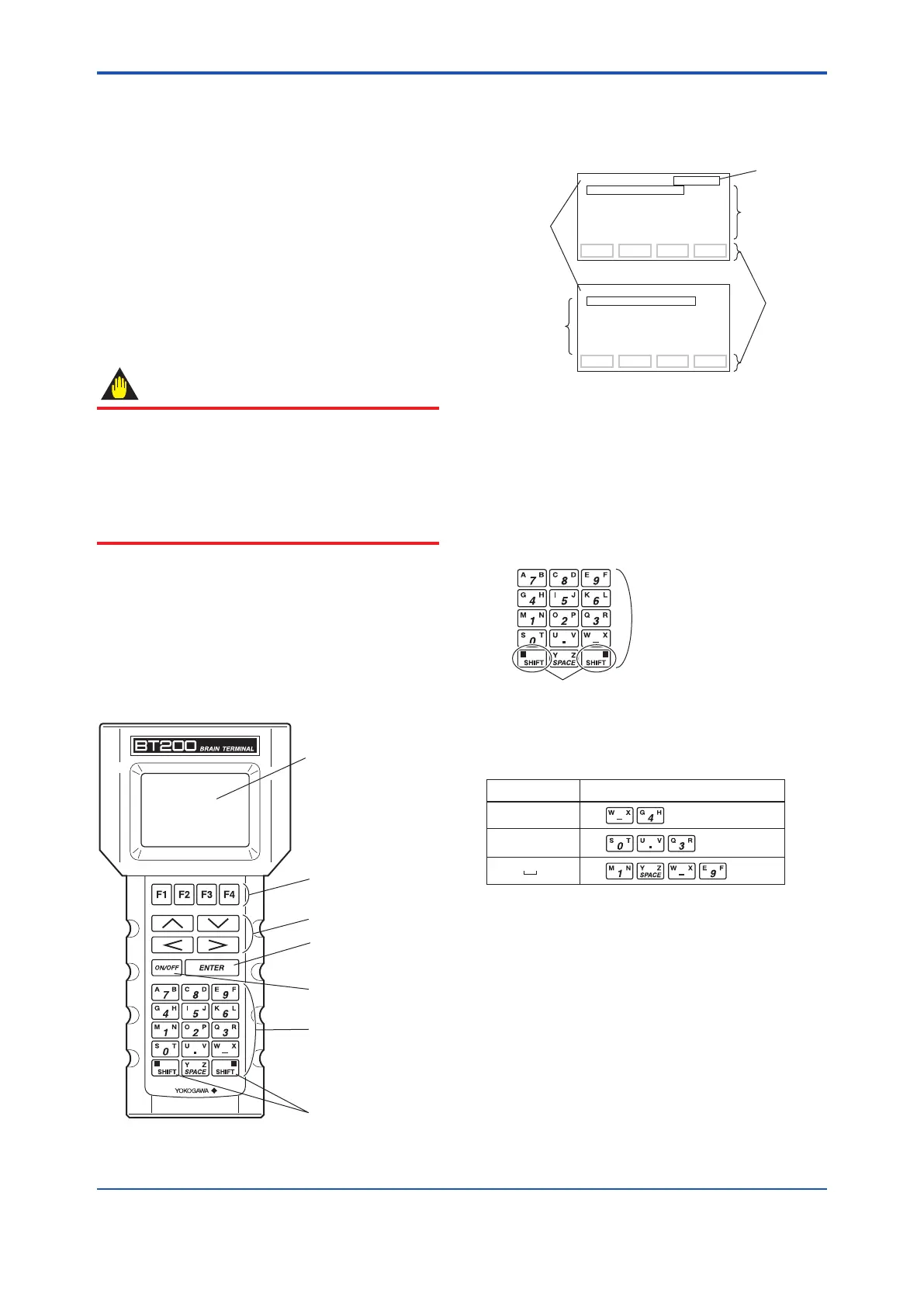

Figure 3.1 shows the arrangement of the operating
keysontheBT200keypad,andgure3.2shows
the BT200 screen.
F0301.ai
LCD
(21 characters × 8 lines)
Movement keys
Power ON/OFF key
Function keys
ENTER key
Alphanumeric keys
Shift keys
Figure 3.1 BT200 Key Layout
PARAM
A10:OUTPUT
0.0 %
A11:PRES
0.0000 kPa
A15:OUTPUT mA
4.000 mA
Menu choices
Messages
MENU SCREEN
Screen title
MENU
A:DISPLAY
B:SENSOR TYPE
C:BASIC SETUP
D:AUX SET1
E:AUX SET2
G:ALARM SET
BATTERY
HOME SET ADJ ESC
Function
commands
PARAMETER SCREEN
Parameters
DATA DIAG PRNT ESC
F0302.ai
Figure 3.2 BT200 Screen
3.1.2 Operating Key Functions
(1) Alphanumeric Keys and Shift Keys
Use the alphanumeric keys in conjunction with
the shift keys to enter numbers, symbols, and
alphabetic characters.
Shift keys
Alphanumeric keys
F0303.ai
a. Entering Numbers, Symbols, and Spaces
Simply press the alphanumeric keys.
Entry Key-in sequence
–4
0.3
1 –9
F0304.ai
