MSI

Enable/Disable MSI

Parameter # 0Bh

To enable or disable MSI, scan the appropriate bar code below.

Set Lengths for MSI

Parameter # L1 = 1Eh, L2 = 1Fh

The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s)

the code contains. Set lengths for MSI to any length, one or two discrete lengths, or lengths within a specific range.

•

One Discrete Length - Select this option to decode only MSI symbols containing a selected length. Select

the length using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode only MSI

symbols with 14 characters, scan MSI - One Discrete Length, then scan 1 followed by 4. To correct an

error or to change the selection, scan Cancel on page D-3.

•

Two Discrete Lengths - Select this option to decode only MSI symbols containing either of two selected

lengths. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to

decode only MSI symbols containing either 2 or 14 characters, select MSI - Two Discrete Lengths, then

scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan Cancel on page D-3.

•

Length Within Range - Select this option to decode a MSI symbol with a specific length range. Select

lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode MSI

symbols containing between 4 and 12 characters, first scan MSI - Length Within Range. Then scan 0, 4,

1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection, scan

Cancel on page D-3.

•

Any Length - Scan this option to decode MSI symbols containing any number of characters within the digital

scanner capability.

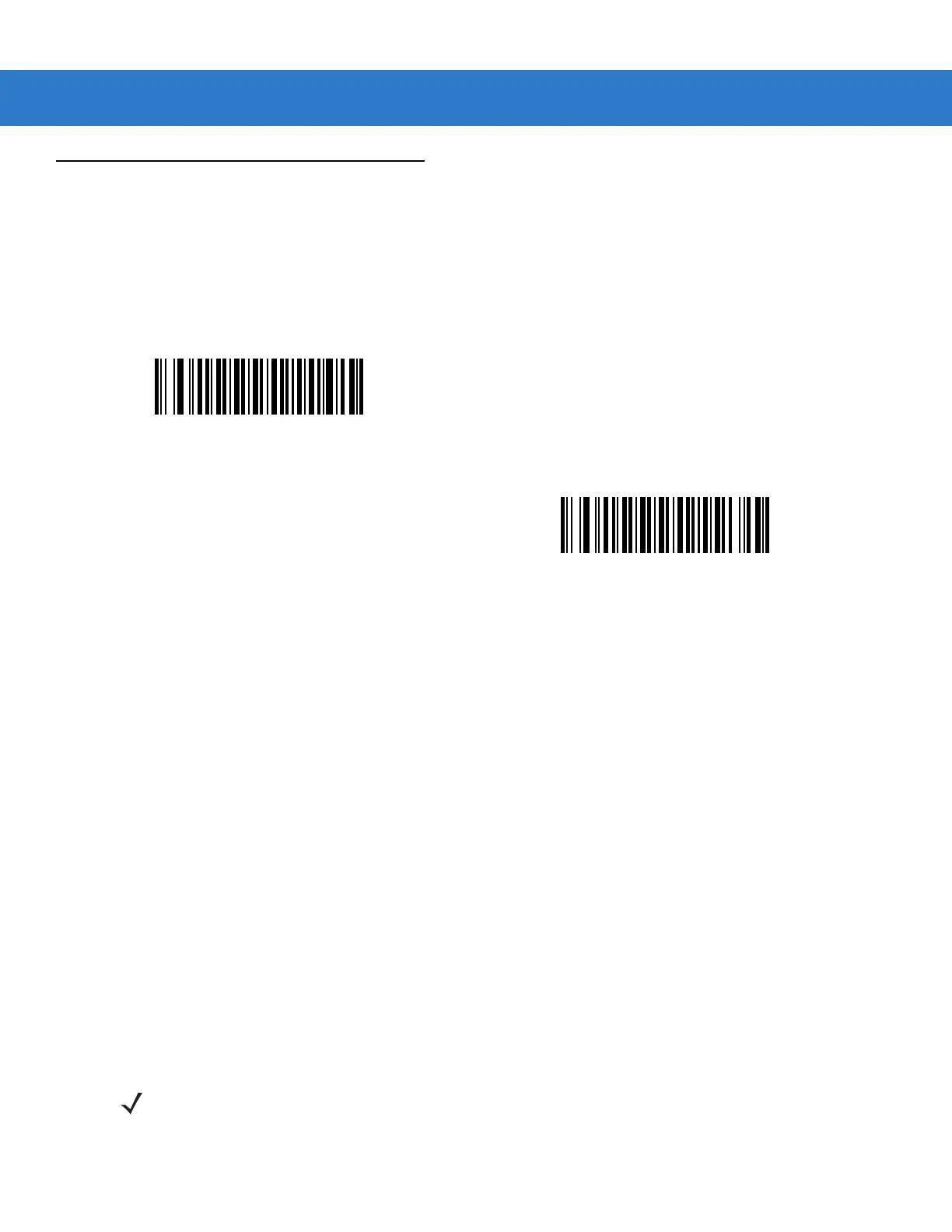

Enable MSI

(01h)

*Disable MSI

(00h)

NOTE Due to the construction of the MSI symbology, it is possible for a scan line covering only a portion of the

code to transmit as a complete scan, yielding less data than is encoded in the bar code. To prevent this,

select specific lengths (MSI - One Discrete Length, Two Discrete Lengths) for MSI applications.
