Keyboard Wedge Interface
6 - 5
Keyboard W
edge Country T
ypes (Country Codes)

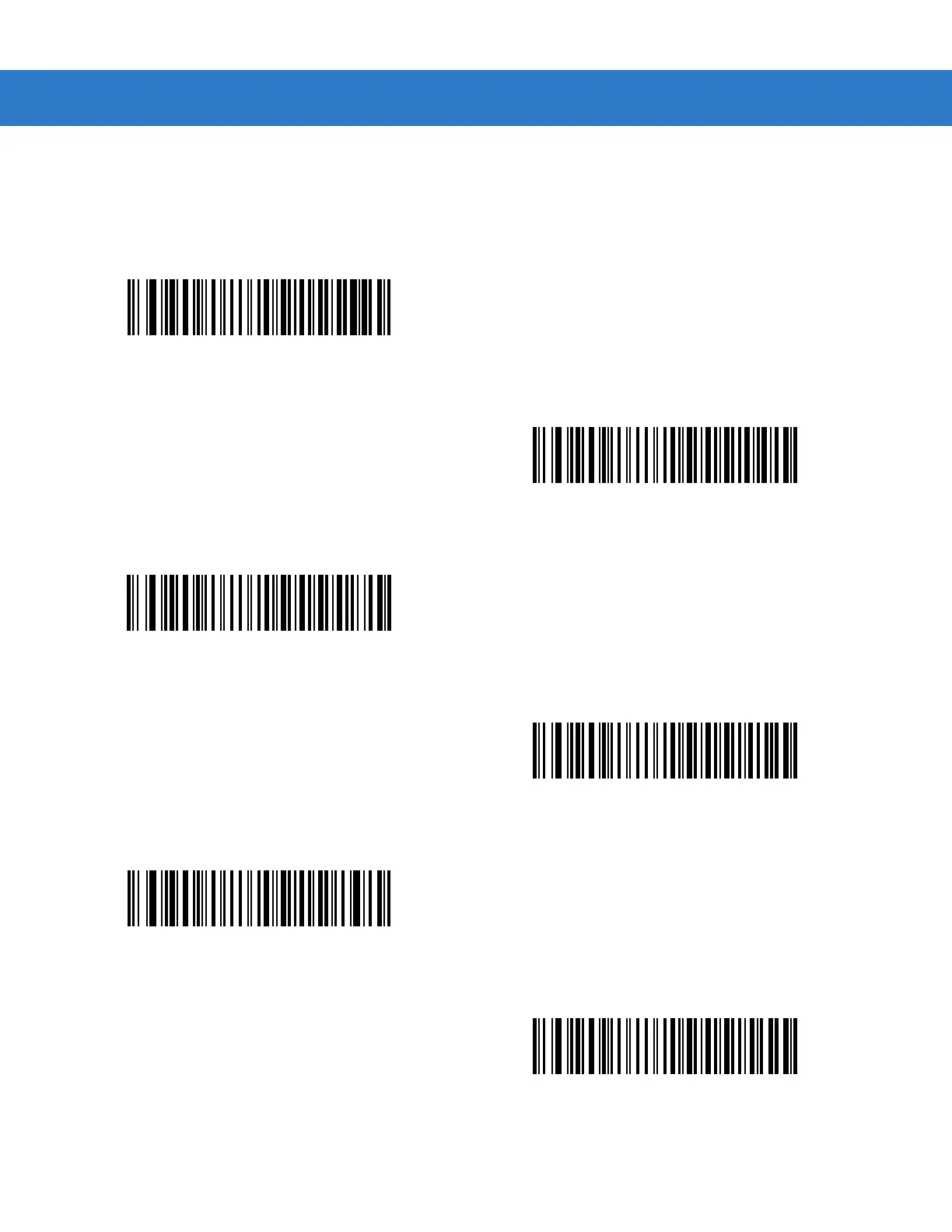

Scan the bar code corresponding to the keyboard
type. If your keyboard type does no
t appear
, see
Alternate
Numeric Keypad Emul
ation on page 6-8
.
*
North American
German Windows
French Windows
French Canadia
n Windows
95/98
French Canadian Wi
ndows XP/2000
Sp
anish Windows
74
76
Table of Contents
Revision History
5
Table of Contents
7
About This Guide
17
Introduction
17
Configurations
17
Chapter Descriptions
17
Notational Conventions
18
Related Documents
19
Service Information
19
Getting Started
21
Introduction
21
Unpacking
22
Setting Up the Digital Scanner
22
Installing the Interface Cable
22
Removing the Interface Cable
23
Connecting Power (if required)
24
Configuring the Digital Scanner
24
Scanning
25
Introduction
25
LED Definitions
28
Scanning with the Digital Scanner
29
DS3408-SF Near Focus - 1D and PDF417
33
DS3408-SF Near Focus - 2D Codes
34
DS3408-SF Far Focus
35
DS3408-SF Smart Focus
36
DS3408-HD Near Focus - 1D and PDF417
37
DS3408-HD Near Focus - 2D Codes
38
DS3408-HD Far Focus
39
DS3408-HD Smart Focus
40
Maintenance and Technical Specifications
41
Introduction
41
Maintenance
41
Troubleshooting
42
Technical Specifications
44
User Preferences
49
Introduction
49
Errors While Scanning
50
User Preferences Parameter Defaults
50
Set Default Parameter
52
Parameter Scanning
53
Beeper Volume
55
Suppress Power-up Beeps
55
Power Mode
56
Timeout Between Decodes, Same Symbol
61
Beep After Good Decode
62
Fuzzy 1D Processing
62
Decode Mirror Images (Data Matrix Only)
63
Decoding Preferences
65
Introduction
65
Focus Mode
67
Decode Aiming Pattern
68
Low Light Enhancement
69
Presentation Mode Field of View
69
Keyboard Wedge Interface
71
Introduction
71
Connecting a Keyboard Wedge Interface
72
Keyboard Wedge Host Types
74
Keystroke Delay
77
Alternate Numeric Keypad Emulation
78
Caps Lock Override
79
Function Key Mapping
80
Send Make and Break
81
RS-232 Interface
95
Introduction
95
Baud Rate
101
Data Bits
104
Host Serial Response Time-out
110
RTS Line State
111
Beep on <BEL>
111
Ignore Unknown Characters
113
USB Interface
119
Introduction
119
Connecting a USB Interface
120
USB Parameter Defaults
121
USB Device Type
122
USB CAPS Lock Override
126
Emulate Keypad
127
Emulate Keypad with Leading Zero
128
USB Keyboard FN1 Substitution
128
Simulated Caps Lock
129
USB Static CDC
130
IBM 468X/469X Interface
141
Introduction
141
Port Address
144
Wand Emulation Interface
147
Introduction
147
Connecting Using Wand Emulation
148
Wand Emulation Host Types
150
Ignore Unknown Characters
152
Scanner Emulation Interface
155
Introduction
155
Connecting Using Scanner Emulation
156
Beep Style
159
Convert All Bar Codes to Code 39
162
123 Scan
169
Introduction
169
Communication with 123Scan
169
123Scan Parameter
169
Symbologies
171
Introduction
171
Scanning Sequence Examples
171
Errors While Scanning
172
Symbology Parameter Defaults
172
Enable/Disable UPC-A
178
Enable/Disable UPC-E
178
Enable/Disable EAN-8/JAN-8
179
Enable/Disable Bookland EAN
180
UPC/EAN/JAN Supplemental Redundancy
184
Transmit UPC-E Check Digit
186
EAN-8/JAN-8 Extend
192
Bookland ISBN Format
193
ISSN EAN
196
Code 128
196
Enable/Disable Code 128
196
Set Lengths for Code 128
197
Enable/Disable ISBT 128
199
Check ISBT Table
201
ISBT Concatenation Redundancy
201
Enable/Disable Trioptic Code 39
202
Code 32 Prefix
203
Code 39 Check Digit Verification
205
Buffer Data
208
Clear Transmission Buffer
209
Transmit Buffer
209
Overfilling Transmission Buffer
210
Attempt to Transmit an Empty Buffer
210
Code 93
210
Enable/Disable Code 93
210
Code 11
213
Interleaved 2 of 5 (ITF)
217
Enable/Disable Interleaved 2 of 5
217
I 2 of 5 Check Digit Verification
219
Convert I 2 of 5 to EAN-13
220
Enable/Disable Discrete 2 of 5
221
Enable/Disable Codabar
224
NOTIS Editing
227
Enable/Disable MSI
228
Set Lengths for MSI
228
MSI Check Digit Algorithm
231
Enable/Disable Chinese 2 of 5
232
Matrix 2 of 5
232
Enable/Disable Matrix 2 of 5
232
Matrix 2 of 5 Check Digit
234
Transmit Matrix 2 of 5 Check Digit
234
Enable/Disable Korean 3 of 5
235
US Postnet
237
US Planet
237
Transmit US Postal Check Digit
238
UK Postal
238
Transmit UK Postal Check Digit
239
Japan Postal
239
Netherlands KIX Code
242
USPS 4CB/One Code/Intelligent Mail
242
UPU FICS Postal
243
GS1 DataBar-14
244
GS1 DataBar Limited
244
Convert GS1 DataBar to UPC/EAN
245
Composite CC-C
246
Composite CC-A/B
246
Composite Beep Mode
249
GS1-128 Emulation Mode for UCC/EAN Composite Codes
249
Enable/Disable PDF417
250
Enable/Disable MicroPDF417
250
Maxicode
253
QR Code
254
MicroQR
255
Aztec
256
Aztec Inverse
256
Redundancy Level 1
257
Redundancy Level 3
257
Redundancy Level 4
257
Report Version
260
Flush Macro Buffer
261
Abort Macro PDF Entry
261
Miscellaneous Scanner Options
263
Introduction
263
Scanning Sequence Examples
263
Errors While Scanning
264
Miscellaneous Scanner Parameter Defaults
264
Transmit Code ID Character
265
Advanced Data Formatting
273
Introduction
273
Rules: Criteria Linked to Actions
273
ADF Bar Code Menu Example
274
Rule 1: The Code 128 Scanning Rule
275
Rule 2: The UPC Scanning Rule
275
Alternate Rule Sets
275
Rules Hierarchy (in Bar Codes)
276
Default Rules
277
ADF Bar Codes
277
Pause Duration
280
Begin New Rule
280
Save Rule
280
Erase
281
Quit Entering Rules
281
Code Types
283
Specific String at Start
295
Specific String, Any Location
295
Specific String Search
296
Any Message OK
296
Send Data
300
Setup Field(s)
303
Move Cursor (continued)
306
Send Pause
306
Skip Ahead
306
Skip Back
308
Remove All Spaces
311
Crunch All Spaces
311
Stop Space Removal
311
Remove Leading Zeros
311
Stop Zero Removal
311
Pad Data with Zeros
316
Send Keystroke (Control Characters and Keyboard Characters)
321
Control Characters
321
Keyboard Characters
326
Send Function Key
350
Send Right Control Key
357
Send Graphic User Interface (GUI) Characters
358
Turn On/Off Rule Sets
363
Standard Default Parameters
379
Programming Reference
389
Symbol Code Identifiers
389
Sample Bar Codes
397
Code 39
397
UPC/EAN
397
UPC-A, 100 %
397
EAN-13, 100 %
398
Code 128
398
Interleaved 2 of 5
398
GS1 DataBar-14
398
PDF417
399
Data Matrix
399
Maxicode
399
QR Code
400
US Postnet
400
UK Postal
400
Numeric Bar Codes
401
Numeric Bar Codes
401
Cancel
403
ASCII Character Sets
405
