7. Use the image control at the bottom of the screen to control the flash, audio and zoom level.

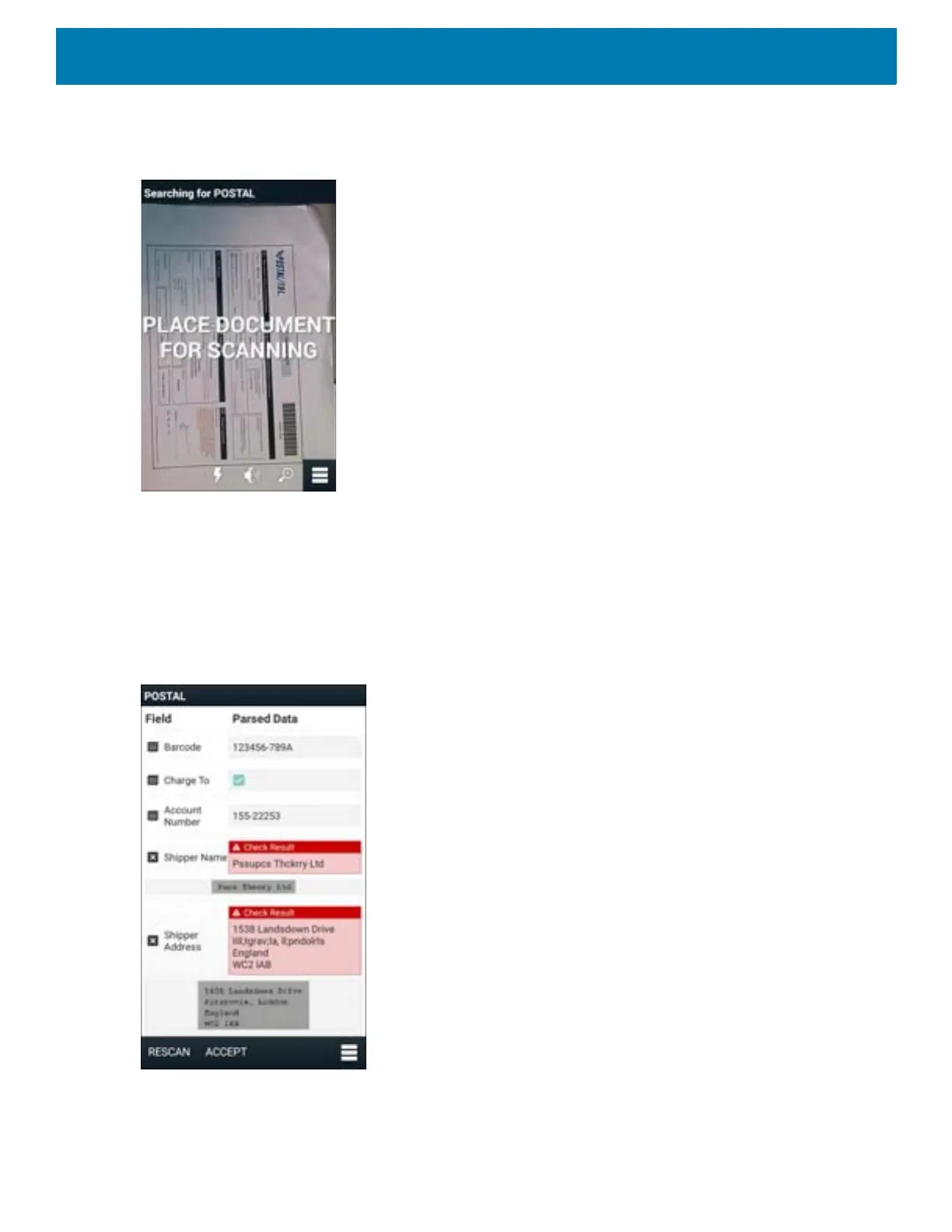

Figure 108 Image Controls
8. Position the camera over the form. Ensure that the complete border of the form is visible on the screen.
9. Hold the device steady.
10.Once the device detects the form Tap Screen to Scan appears on the screen.
11.Tap the screen to start the data capture. When completed, the device beeps and the data from the form
displays.
Figure 109 Postal Data Screen
12.Touch the text boxes to correct any errors. Note: if there are too many errors, touch Rescan to perform the
capture again.

Zebra TC77 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Number of cores	8
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system version	8.1
Operating system installed	Android
Data network	2G, 3G, EDGE, GPRS, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 90 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Certification	WFA (802.11n, WMM-PS, 801.11ac, PMF)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP65, IP68
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
