successfully. When the RS507/RS507X is in Pick List mode, the RS507/RS507X does not decode the
barcode until the center of the crosshair touches the barcode.
Figure 124 RS507/RS507X Aiming Pattern

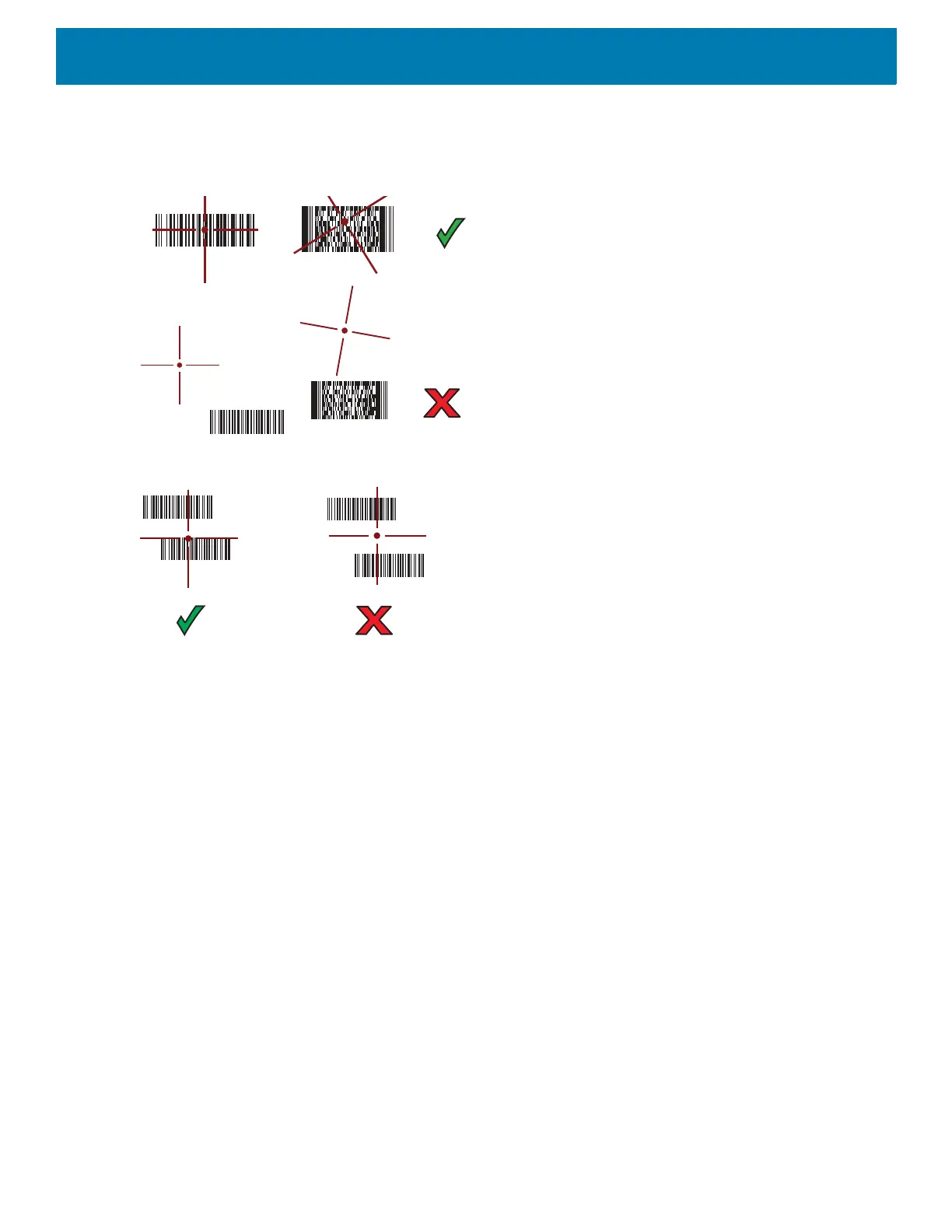

Figure 125 RS507/RS507X Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
Scanning with RS6000 Bluetooth Ring Scanner
To read a barcode, a scan-enabled app is required. Devices that contain the Zebra DataWedge app allows you
to enable the scanner to decode barcode data and display the barcode content.
To scan with the RS6000:
1. Pair the RS6000 with the device. See Pairing Using Bluetooth Human Interface Device for more
information.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

Zebra TC77 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Number of cores	8
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system version	8.1
Operating system installed	Android
Data network	2G, 3G, EDGE, GPRS, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 90 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Certification	WFA (802.11n, WMM-PS, 801.11ac, PMF)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP65, IP68
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
