Zebra TC77 User Manual

Applications
119
Using the Postal, Transportation and Logistics Example
1. Print the Postal, Transportation and Logistics form. See Printing the Sample Forms.

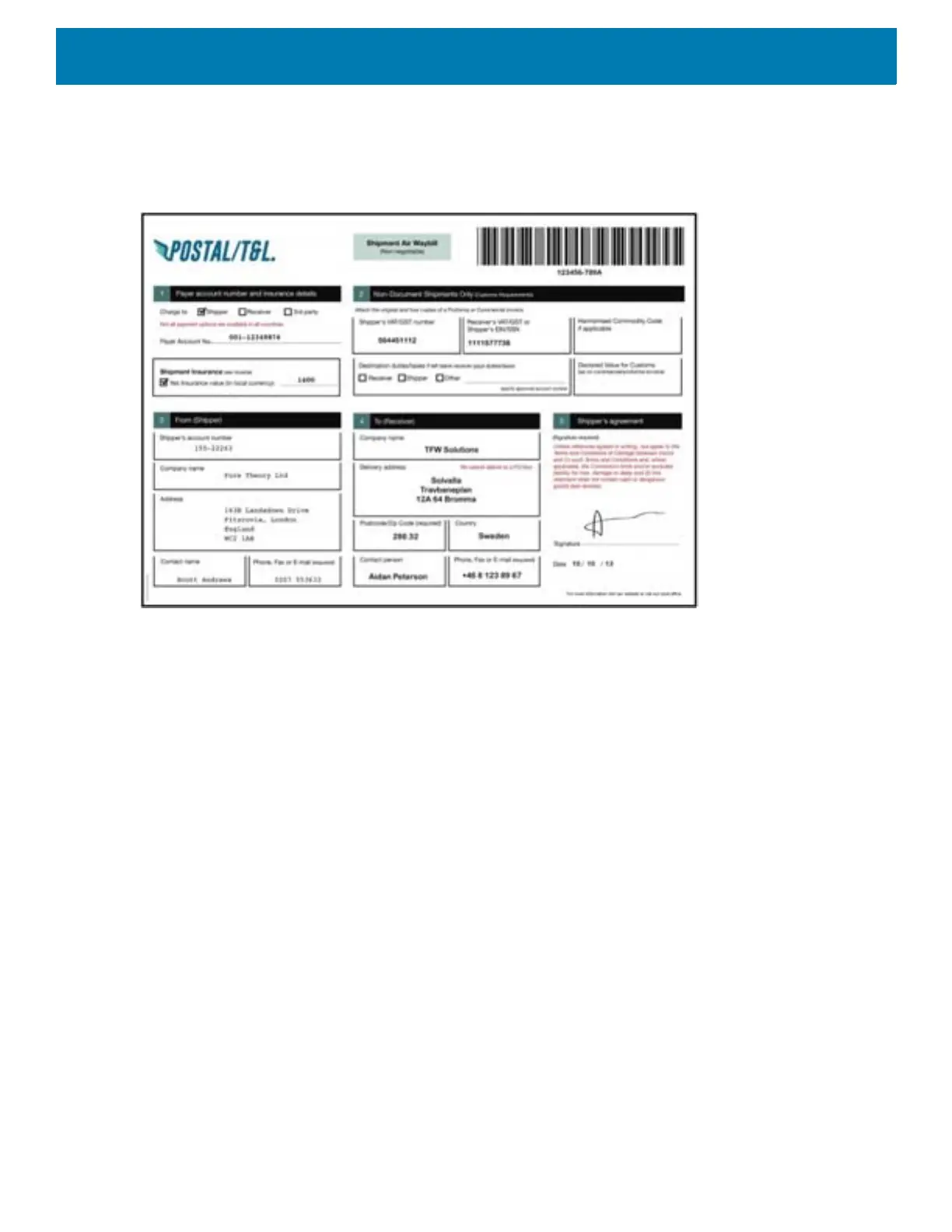

Figure 107 Postal, Transportation and Logistics Form
2. Place the form on a flat surface.
3. On the device, launch SimulScan Demo app.
4. Touch the Menu icon in the top right corner of the screen.
5. Touch Postal, Transportation & Logistics.
6. Touch Start SimulScan.

Zebra TC77 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Number of cores	8
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system version	8.1
Operating system installed	Android
Data network	2G, 3G, EDGE, GPRS, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 90 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Certification	WFA (802.11n, WMM-PS, 801.11ac, PMF)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP65, IP68
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
