Getting Started
18

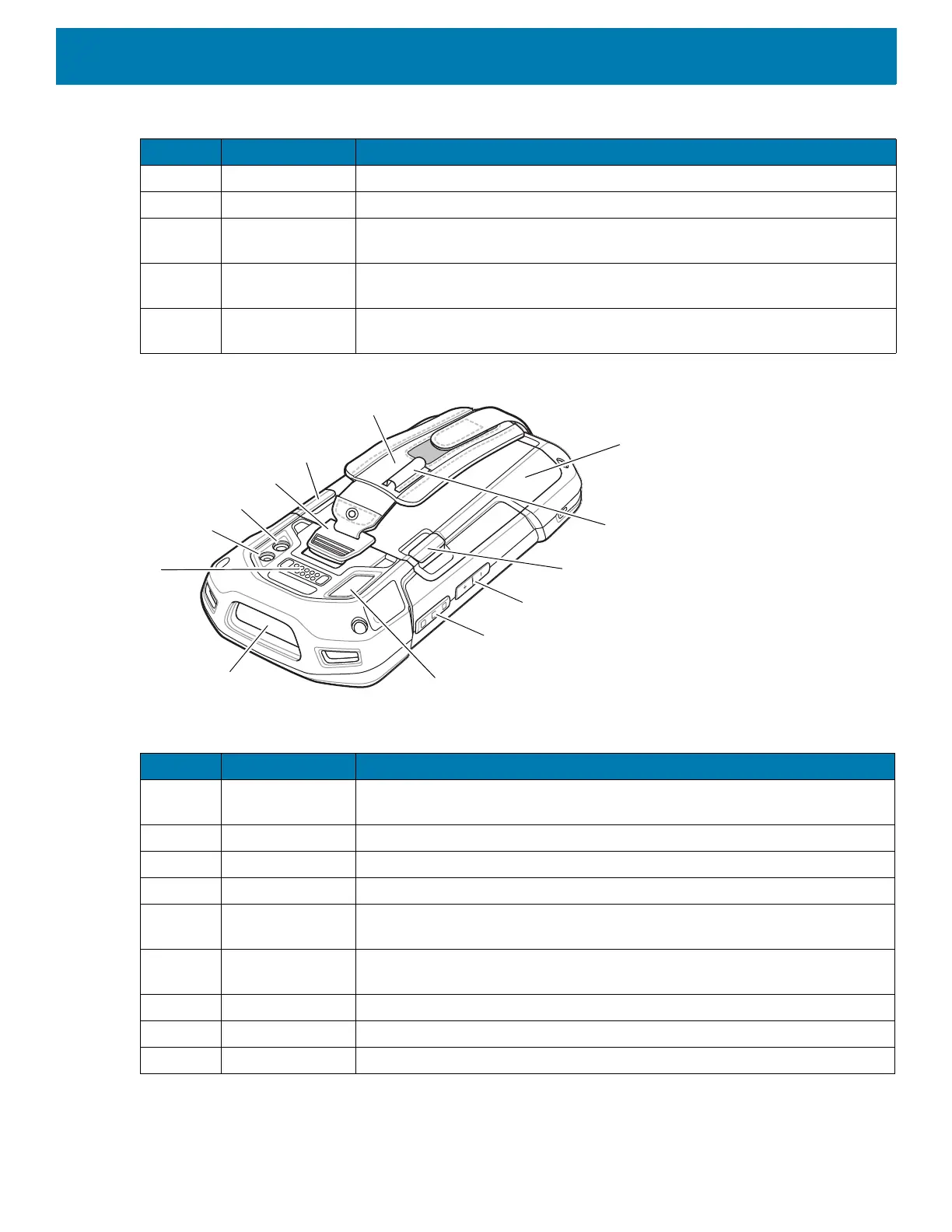

Figure 2 Rear View
14 Microphone Use for communications in Speakerphone mode.
15 Receiver Use for audio playback in Handset mode.
16 Charging/Notifica
tion LED
Indicates battery charging status while charging and app generated
notifications.
17 Data Capture
LED
Indicates data capture status.
18 Front Facing
Camera
Use to take photos and videos (optional).
Table 2 Back View Features
Number Item Function
19 Interface
Connector
Provides USB host and client communications, audio and device charging
via cables and accessories.
20 Exit Window Provides data capture using the imager.
21 Microphone Use during video recording and for noise cancellation.
22 Scan Button Initiates data capture (programmable).
23 Volume
Up/Down Button
Increase and decrease audio volume (programmable).
24 Battery Release
Latches
Press to remove the battery.
25 Elastic Sleeve Use to hold optional stylus.
26 Battery Provides power to the device.
27 Hand strap Use to securely hold the device in your hand.
Table 1 Front View Features (Continued)
Number Item Function
19
29
25
24
22
26
21
30
20
28
24
27
22
23
