OPERATION
Axio Observer Illumination and contrast techniques ZEISS
12/2016 431004-7244-001 151

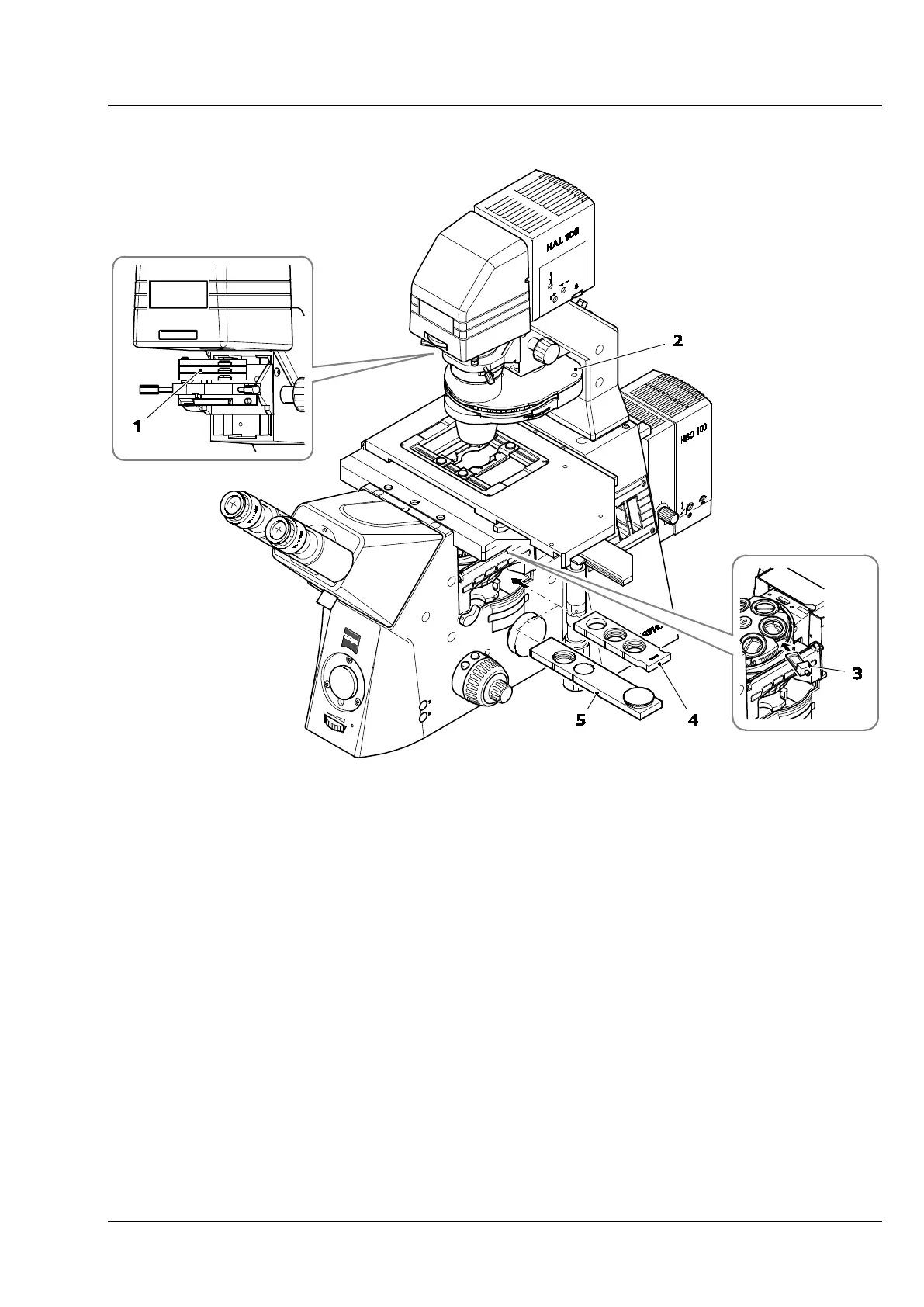

1 Polarizer D (fixed, optional: rotatable)
2 Condenser
3 DIC slider
4 Analyzer slider, fixed
5 ±30° analyzer slider
Fig. 152 Components required for transmitted-light DIC (Axio Observer 5)
