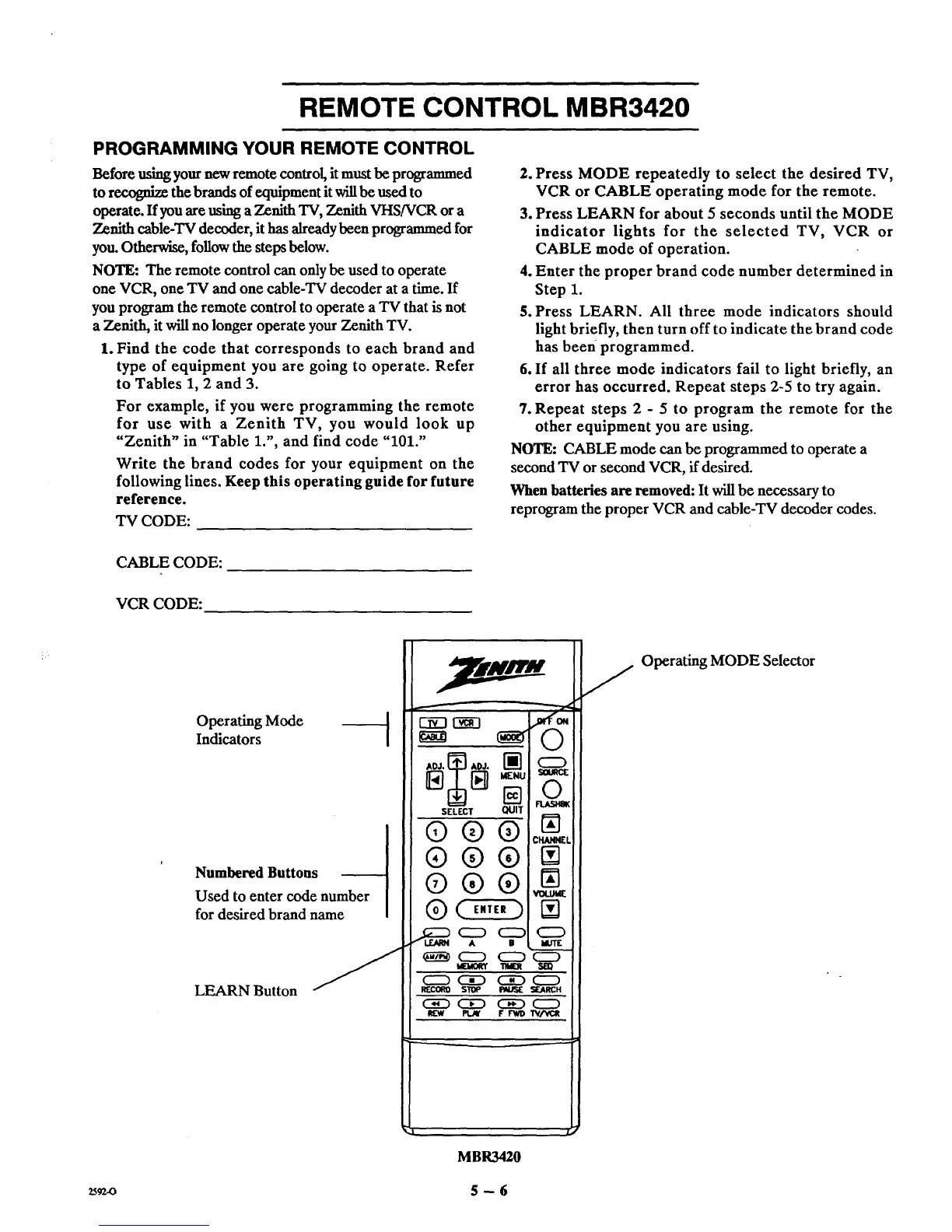

REMOTE CONTROL MBR3420
PROGRAMMING YOUR REMOTE CONTROL
Before using your new remote control, it must be programmed
to recognize the brands of equipment it will be used to
operate.If youare using a Zenith TV, Zenith VHS/VCR or a
Zenith eable-TV decoder, it has already been programmed for
you. Otherwise, follow the steps below.
NOTE: The remote control can only be used to operate
one VCR, one TV and one cable-TV decoder at atime. If
you program the remote control to operate aTV that is not
a Zenith, it will no longer operate your Zenith TV.
1. Find the code that corresponds to each brand and
type of equipment you are going to operate. Refer
to Tables 1, 2 and 3.
For example, if you were programming the remote
for use with a Zenith TV, you would look up
"Zenith" in "Table 1.", and find code "101."
Write the brand codes for your equipment on the
following lines. Keep this operating guide for future
reference.
TV CODE:
2. Press MODE repeatedly to select the desired TV,
VCR or CABLE operating mode for the remote.
3. Press LEARN for about 5 seconds until the MODE
indicator lights for the selected TV, VCR or
CABLE mode of operation.
4. Enter the proper brand code number determined in
Step 1.
$.Press LEARN. All three mode indicators should
light briefly, then turn off to indicate the brand code
has been programmed.
6. If all three mode indicators fail to light briefly, an
error has occurred. Repeat steps 2-5 to try again.
7. Repeat steps 2 - 5 to program the remote for the
other equipment you are using.
NOTE: CABLE mode can be programmed to operate a
second TV or second VCR, if desired.
When batteries are removed: It will be necessary to
reprogram the proper VCR and eable-TV decoder codes.
CABLE CODE:
VCRCODE:
Operating Mode
Indicators
Numbered Buttons
Used to enter code number
for desired brand name
LEARN Button
CE3 r_--I
mm
SELECT QLIIT
©®®
®®®
©®®
_ cZD CD
C_ CiD C_
i
O
N
IN
C_
CZD
C2D
SEARCH
C_D
j Operating MODE Selector
2592-0
MBRM20
5--6
