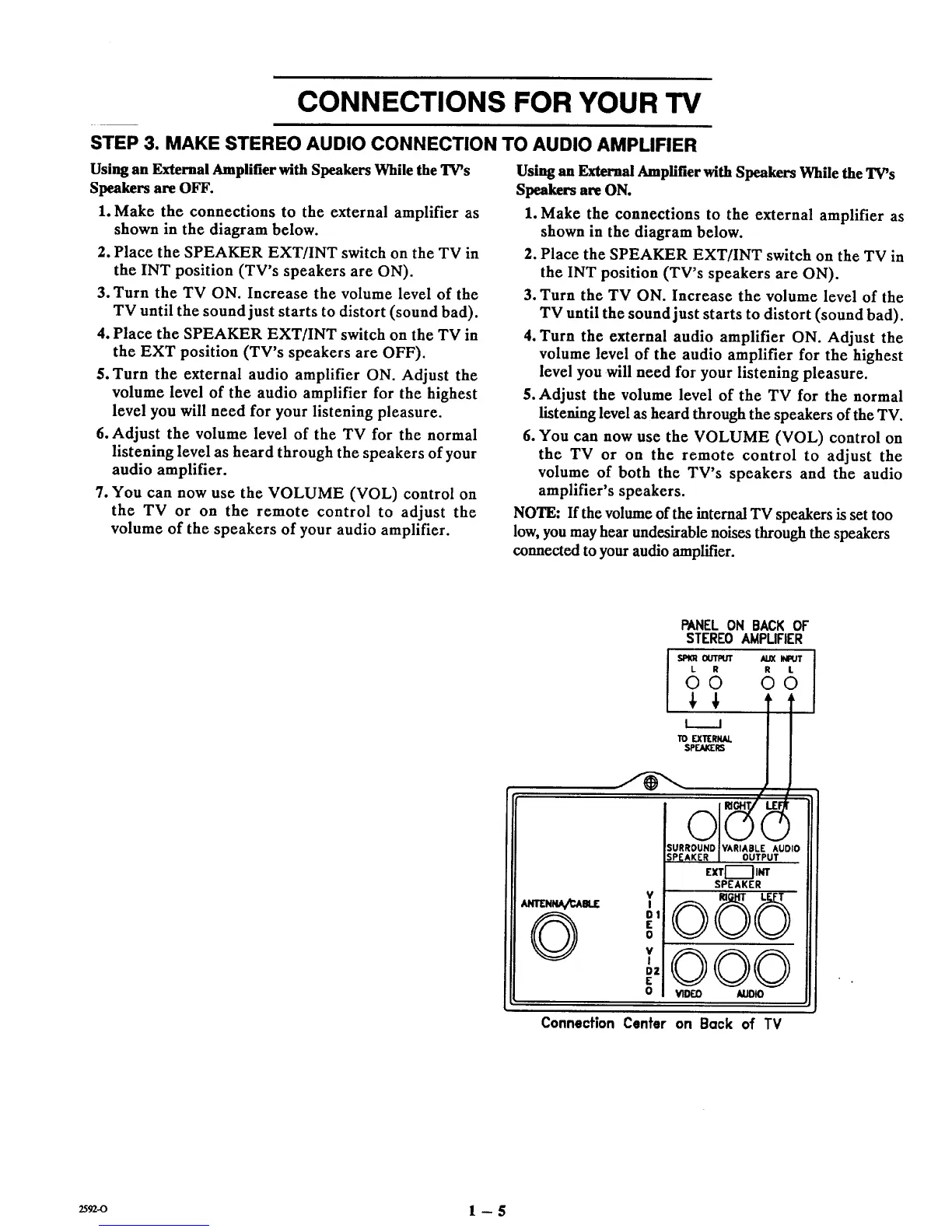

CONNECTIONS FOR YOUR TV
STEP 3. MAKE STEREO AUDIO CONNECTION TO AUDIO AMPLIFIER
Using an External Amplifier with Speakers While the TV's
Speakers are OFF.
1. Make the connections to the external amplifier as
shown in the diagram below.
2. Place the SPEAKER EXT/INT switch on the TV in
the INT position (TV's speakers are ON).
3. Turn the TV ON. Increase the volume level of the
TV until the sound just starts to distort (sound bad).
4. Place the SPEAKER EXT/INT switch on the TV in
the EXT position (TV's speakers are OFF).
5. Turn the external audio amplifier ON. Adjust the
volume level of the audio amplifier for the highest
level you will need for your listening pleasure.
6. Adjust the volume level of the TV for the normal
listening level as heard through the speakers of your
audio amplifier.
7. You can now use the VOLUME (VOL) control on
the TV or on the remote control to adjust the
volume of the speakers of your audio amplifier.
Using an External Amplifier with Speakers While the TV's
Speakers are ON.
1. Make the connections to the external amplifier as
shown in the diagram below.
2. Place the SPEAKER EXT/INT switch on the TV in
the INT position (TV's speakers are ON).
3. Turn the TV ON. Increase the volume level of the
TV until the sound just starts to distort (sound bad).
4. Turn the external audio amplifier ON. Adjust the
volume level of the audio amplifier for the highest
level you will need for your listening pleasure.
5.Adjust the volume level of the TV for the normal
listening level as heard through the speakers of the TV.
6. You can now use the VOLUME (VOL) control on
the TV or on the remote control to adjust the
volume of both the TV's speakers and the audio
amplifier's speakers.
NOTE: If the volume of the internal TV speakers is set too
low, you may hear undesirable noises through the speakers
connected to your audio amplifier.
PANELON BACKOF
STEREOAMPLIFIER
©
OUTPUT AUX INPUT
L R R L
O0 O0
,",IT
o'g
.°
EXTE_ ] INT
SPEAKER
o
v,000
I'
0 YID£O AUDIO
Connection Center on Back of TV
2592-o 1 -- 5
