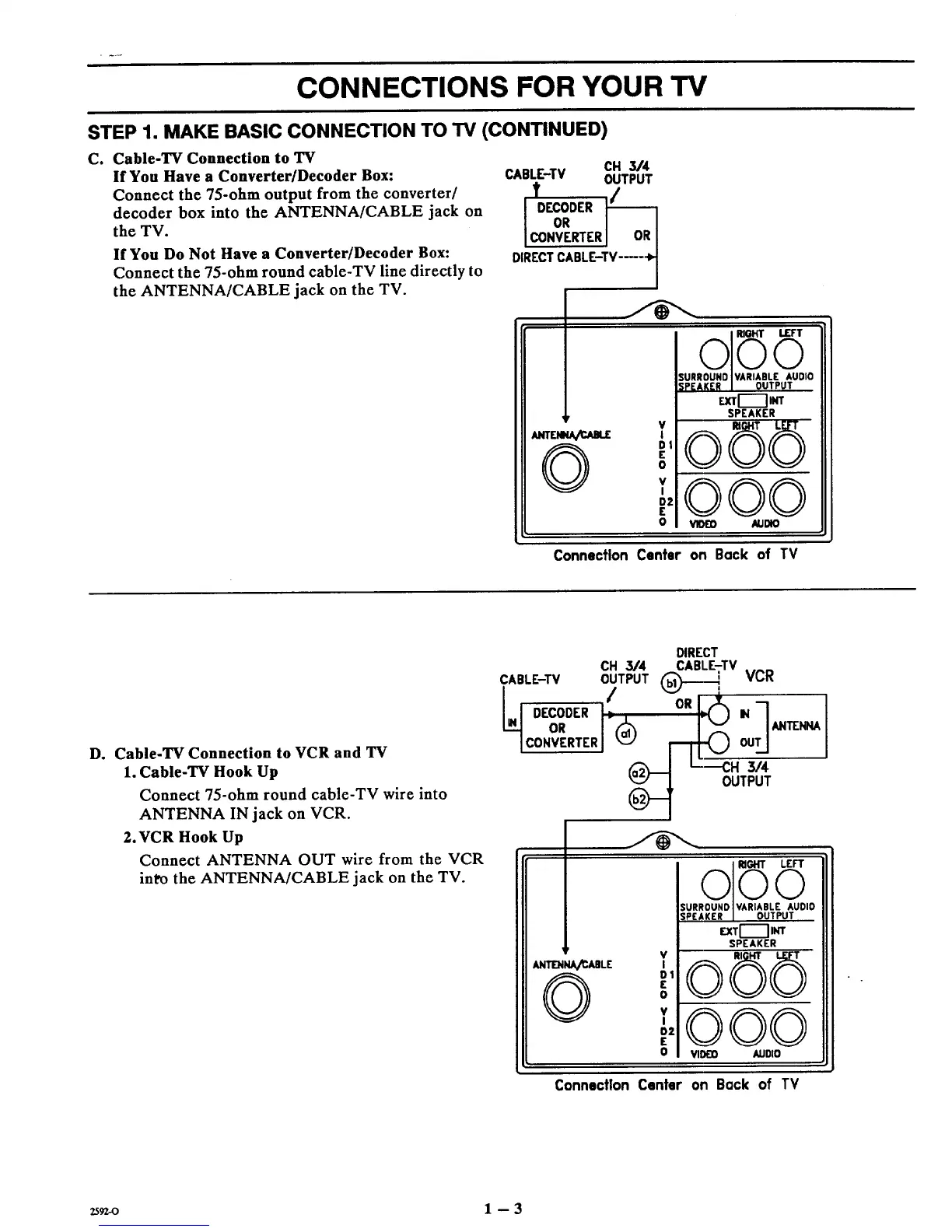

CONNECTIONS FOR YOUR TV
STEP 1. MAKE BASIC CONNECTION TO TV (CONTINUED)
C. Cable-TV Connection to TV
If You Have a Converter/Decoder Box:
Connect the 75-ohm output from the converter/
decoder box into the ANTENNA/CABLE jack on
the TV.
If You Do Not Have a Converter/Decoder Box:
Connect the 75-ohm round cable-TV line directly to
the ANTENNA/CABLE jack on the TV.
CH 3/4
CABLE-TV OUTPUT
t /
DECODEROR _OR
CONVERTER
DIRECTCABLE-TV-m-'_
©
V
I
Dt
E
0
V
I
D2
E
0
Connection Center on Back of TV
O0
VARIABLE AUDIO
OUTPUT
L,rfV'--1_r
SPEAKER
®©©
©©©
D. Cable-TV Connection to VCR and TV
1. Cable-TV Hook Up
Connect 75-ohm round cable-TV wire into
ANTENNA IN jack on VCR.
2. VCR Hook Up
Connect ANTENNA OUT wire from the VCR
into the ANTENNA/CABLE jack on the TV.
DIRECT
CH 314 CABLE-TV
CABLE-TV OUTPUT_ VCR
:1co:_==1® n___oud'
(_ OUTPUT
./6"--.
v
_ITIENI_U_CABLE I
D1
©
o
RIGHT LEFT
©©©
SURROUND VARIABLE AUDIO
SPEAKER OUTPUT
r.XT ["----1 INT
SPEAKER
®©©
000
D2
£
0 VIDE_O AUDIO
Connection Center on Back of TV
