Technical Specification
Page 152 Solution & Solution XL Operating Manual – Issue 1.0
Technical Specification
Power Supply
A separate inline transformer with 4 pin male XLR connector on the desk. The
desk is fitted with a power on/off switch on the back panel.
Mains Voltage 90 – 253 VAC
Mains Frequency 47 – 63 Hz
Mains Inlet Connector CEE22
Power Consumption < 100 W

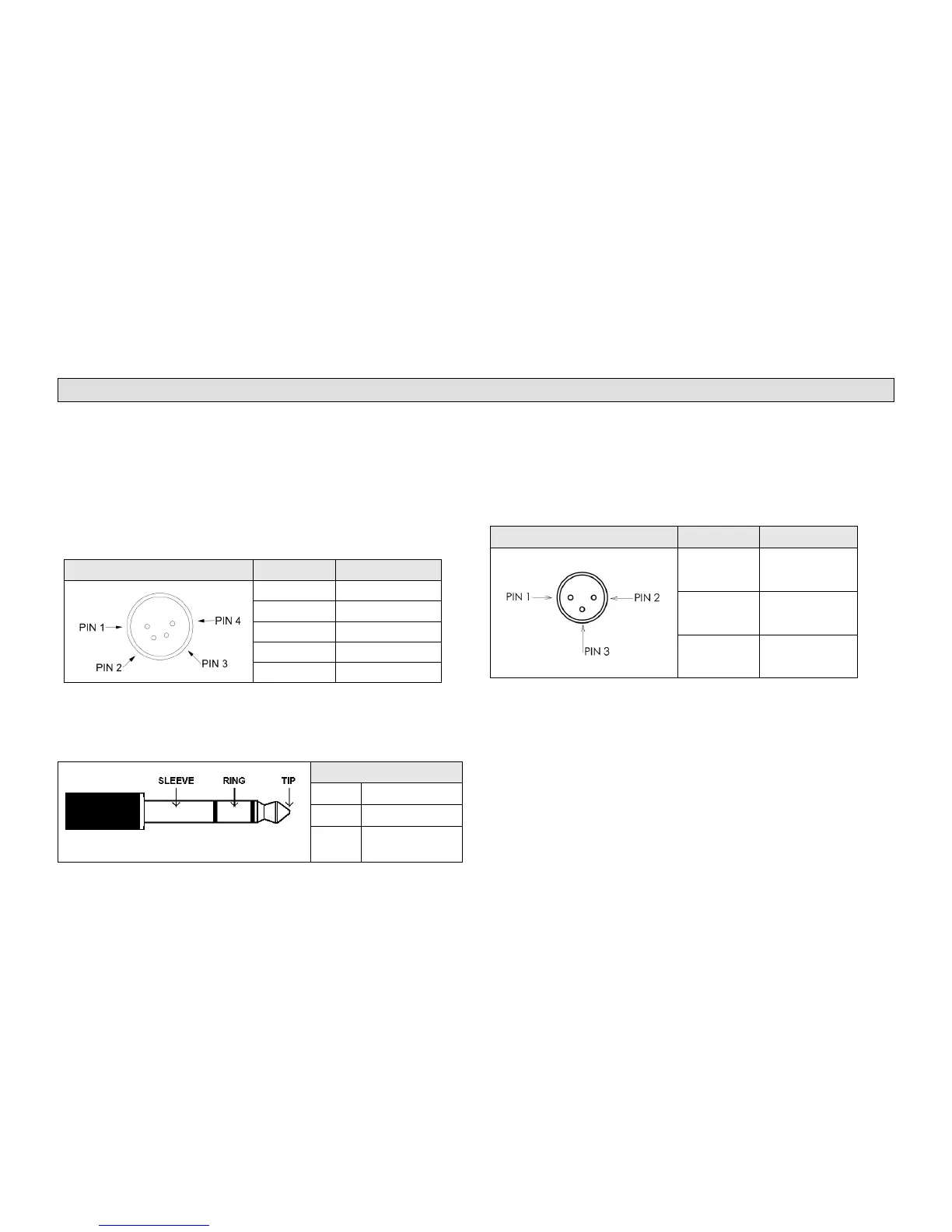

Connector
Pin Number
Power
1
0V
2
+5V DC @ 4 A
3
+12V DC @ 0.5 A
4
Not Connected
Shell
GND
Audio
The desk has an audio port on the rear panel as a stereo ¼ inch jack socket.
The bass beat of the audio input is used to trigger chases with Bass drives.
Connections
Tip
Left Channel
Ring
Right Channel
Sleeve
0V Signal
Ground
SMPTE (Optional Upgrade)
3 pin XLR input and output.
Output 0dBm.
Input 0dBm +/- 10dBm.
47 kOhm input impedance.
Maximum 50V RMS.
Connector
Pin Number
Description
1
Signal Ground
2
Output
3
Input
Video Output
The desk provides an interface for one external monitor (XGA) as standard.
CAN Port (Optional Upgrade)
The desk also has an optional CAN port and is capable of supporting iCAN or
ChilliNet messages.
