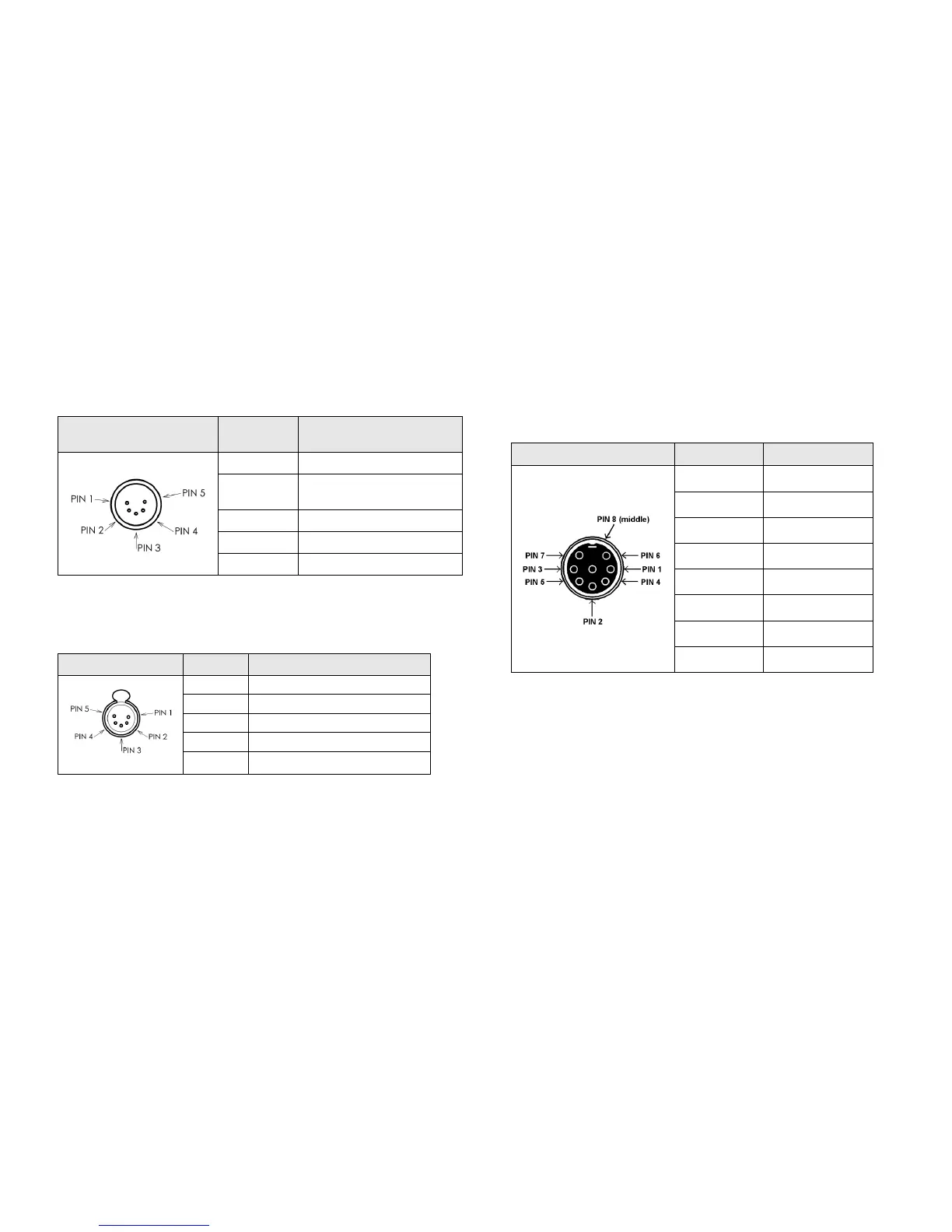

DMX Input
5 pin XLR, not isolated, with voltage protection. Data on channels 1 - 512
only.
Connector
Pin
Number
DMX Output
1
Signal Ground (0V)
2
DMX Drive Complement
(1-)
3
DMX Drive True (1+)
4
Not Connected
5
Not Connected
DMX Output
Four DMX universes each consisting of dual 5 pin XLR, isolated, with voltage
protection and data output indicator. Data on channels 1 – 512 only.
Connector
Pin
DMX Output
1
Signal Ground (0V)
2
DMX Drive Complement (1-)
3
DMX Drive True (1+)
4
Not Connected
5
Not Connected
Remote Switches (Optional Upgrade)
An 8 pin DIN connector providing six remote switch inputs. The following
table shows the relationship between the pin number on the remote switches
socket on the rear panel of the desk and the remote switch number.
Socket
Pin Number
Remote Switch
1
Switch 6
2
Switch 1
3
Switch 2
4
Switch 3
5
Switch 4
6
Switch 5
7
Not Used
8
0V Common Ground
