PTT Handset with Cradle
PTT Handset with Cradle
The PTT Handset (P/N 950-9315) may be used with the Model 4010 Console. When
installed in the field, the handset cradle must be mounted to the side of the console using
the four mounting holes provided. See Figure 13 for details.
The connector with wires from the switch hook is installed on P3, which is on the Control
Board under the handset cradle mounting location. The four-wire modular cord from the
handset is installed in the modular connector on the exterior side of the console near the
handset cradle.

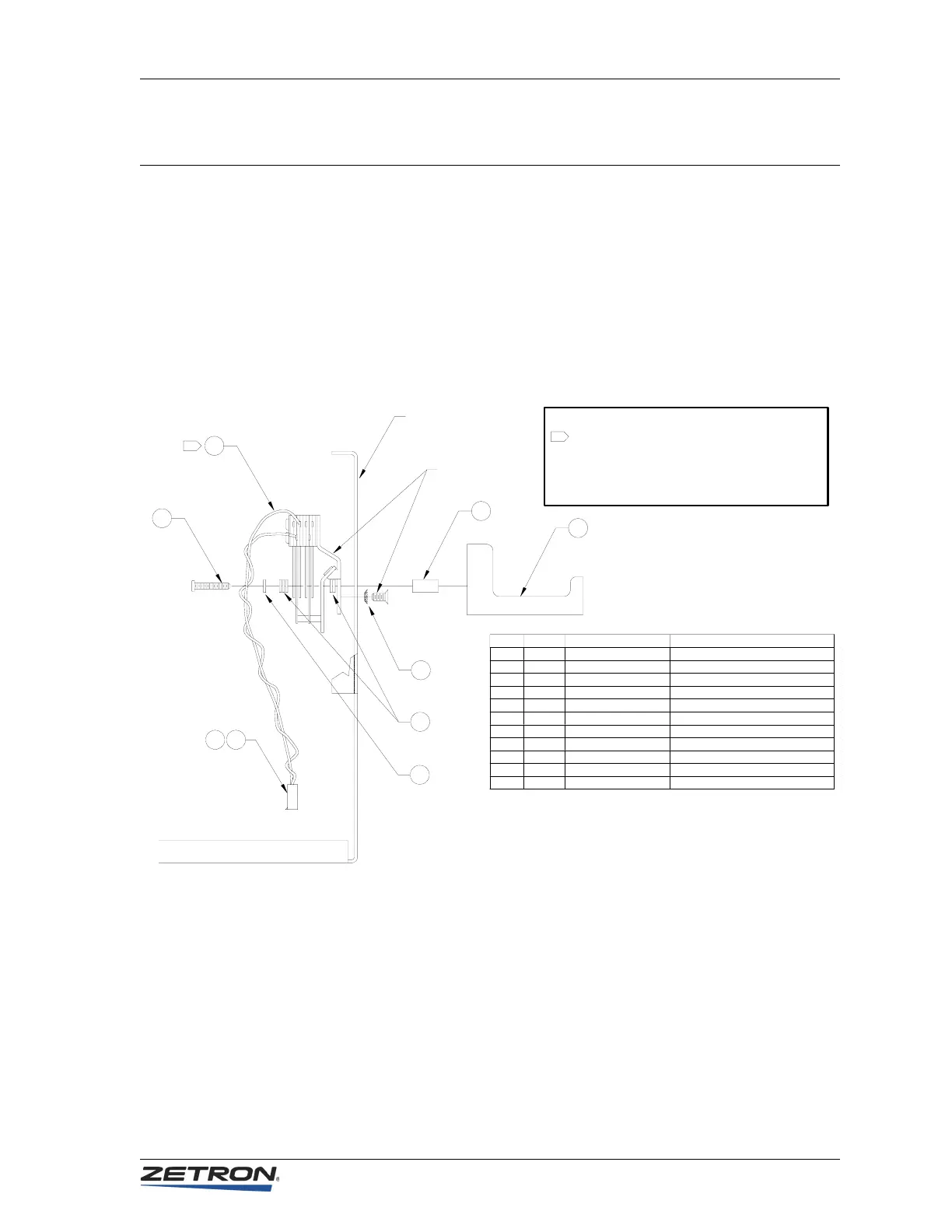

Figure 13: Handset Cradle Assembly
2 PLCS
67
TO P3
10 PLCS2
1.
8
5
4
INSTALL PINS AND HOUSING ON OTHER END OF WIRES.
EACH WIRE TO HOOKSWITCH TERMINALS AS SHOWN.
1. CUT WIRE INTO 2 6" PIECES. SOLDER ONE END OF
11
NOTES:
ITEM
QTY.
PART NUMBER DESCRIPTION
1
2
220-0200 SCREW, 6-32x1", PAN, PHL, S-Zn
4
2
234-0017 WASHER, STAR, #8, CTSK, SS
3
2
234-0011 WASHER, LOCK, SPLIT, #4, S-Zn
7
1
401-0083 CONN,CRIMP TERM HOUSING,2 POS
6
2
401-0082 CRIMP TERM
5
2
251-3473 SPACER,RND,#8x1/2",.25"OD/.171"ID
11
1
802-1078 UNIVERSAL HOOKSWITCH
10
1
802-0097 HANDSET, PTT
9
1
709-0002 HANDSET CORD, 4-WIRE
8
12"
408-2201 WIRE, 22AWG (19x34) PVC, WHITE
2 PLCS
ON CONTROLLER BOARD
2 PLCS
MODEL 4010 CHASSIS
VIEWED FROM REAR
PART OF
802-1078
1
2. DISCARD PANHEAD SCREWS (2), LOCKWASHERS (2),
AND HEX STANDOFFS SUPPLIED WITH 802-1078.
2
10
234-0006 WASHER, FLAT #6 STEEL ZINC
3
2 PLCS
