Introduction
The Model 4010 Radio Dispatch Console is a self-contained, multichannel, desktop
console. It is a single position console that interfaces directly to the radio transceivers and
telephone lines. It is suitable for use in public safety applications, such as police and fire
communications, as well as public service applications, such as utility and industrial
communications. The Model 4010 may be tailored to fit the size of the system, from 2 to
12 radio channels, by adding dual channel cards as required. The channels can be
configured to support a mix of control types: DC remote, tone remote, local control, and
E&M control.

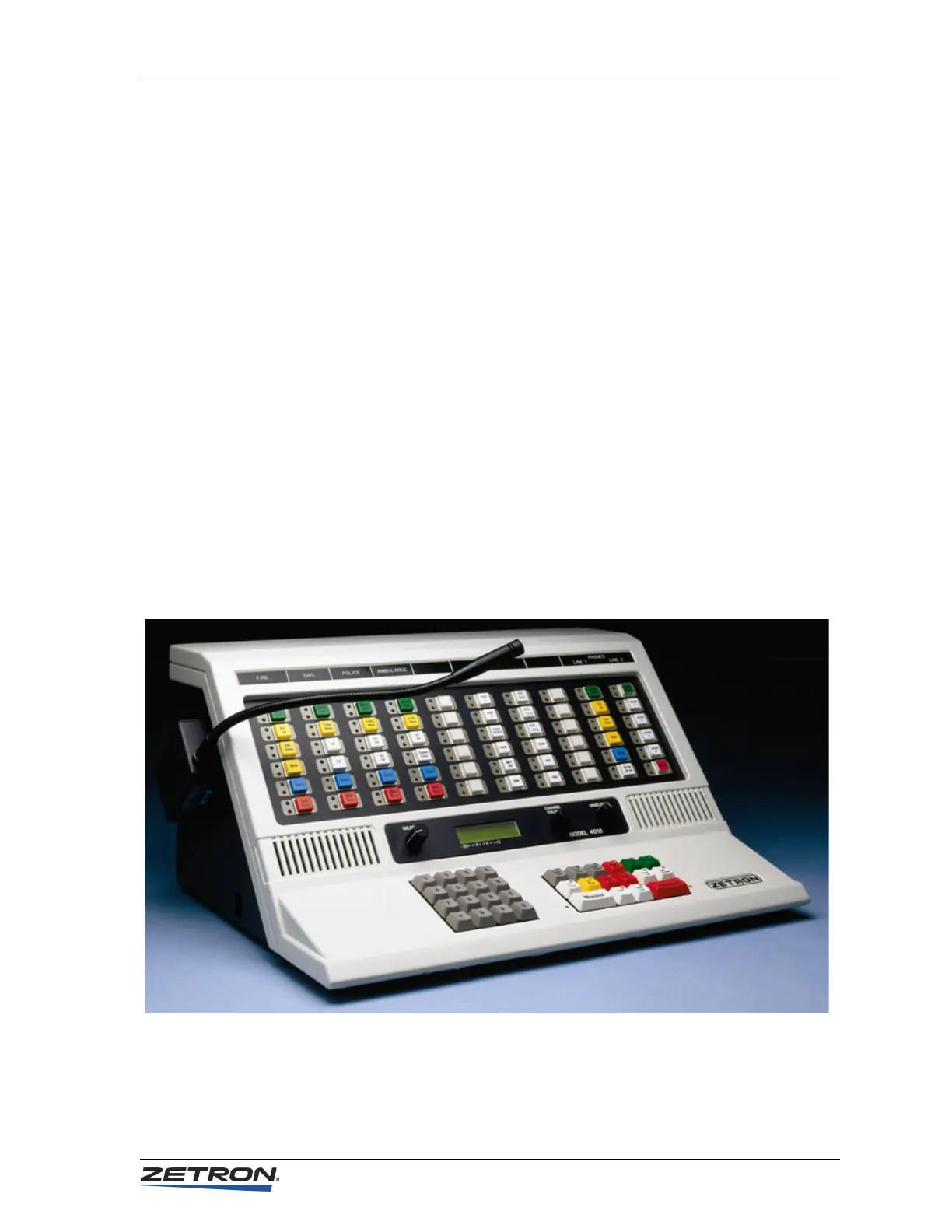

Figure 1: Model 4010
The diagram in Figure 2 illustrates a Model 4010 Radio Dispatch Console configured with
four radio channels. A console can be configured with up to 12 radio channels.
