Zimmer PhySys - Electrotherapy Therapy Screen

Operation instructions
9.1 Electrotherapy
9
Page 20
Therapy screen
After selecting the current form, the therapy screen automatically opens on channel I.
Start of therapy
By adjusting the intensity using the left intensity regulator, the display in the lower
status line changes from “Ready” to “Active” and therapy proceeds. The present
current flow is shown in the bar graph (1) and the therapy time decreases every
second.
End of therapy
After the therapy time has elapsed, an acoustic signal indicates the end of the therapy,
the clock is at 00:00, the intensity automatically goes to zero and the bar graph display
goes out. The display in the lower status line changes from “Active” to “Ended”.
Activating the therapy
time
Using the button (2), the therapy time is reactivated after the end of therapy.

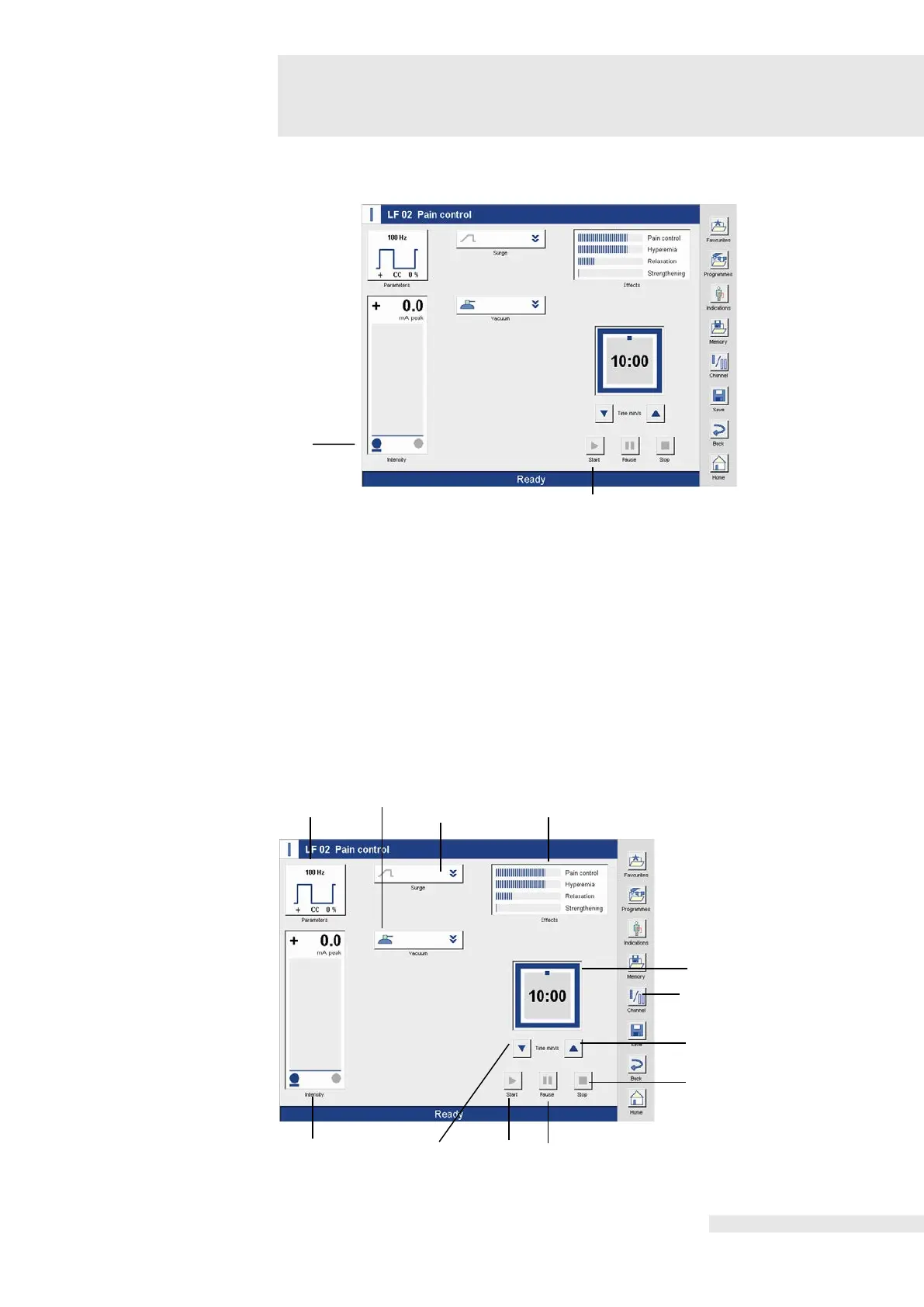

Description of the
display elements and
buttons
