Program start
Using the “Start” button, the “Programmes – Electrotherapy” window opens.

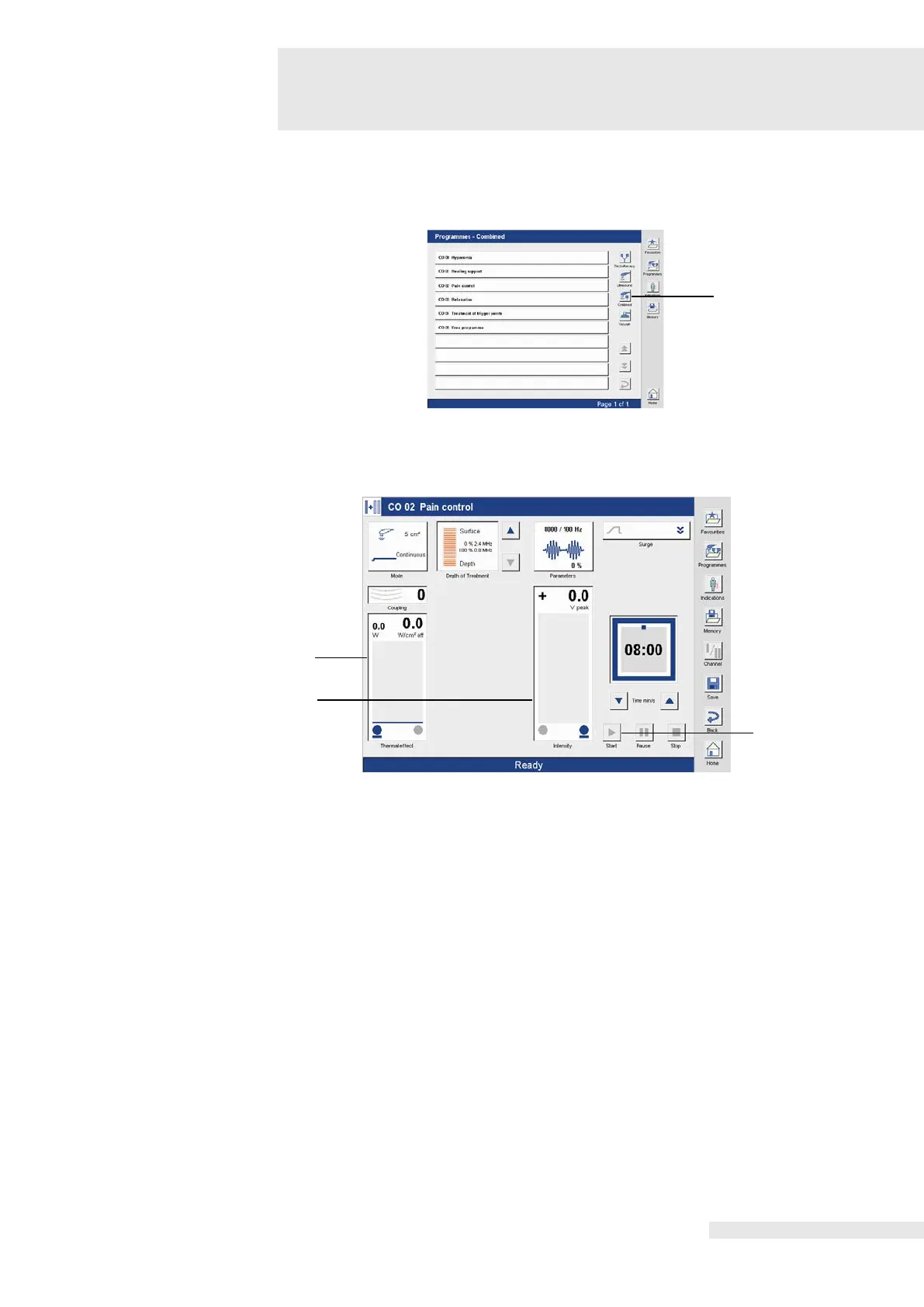

Programmes - Combined
Using the button (1), the “Programmes - Combined” window opens.
Select program
The desired combined therapy program is selected directly in the corresponding line.
Therapy screen
After the combined therapy program has been selected, the therapy screen opens.
Adjust ultrasound
intensity
Adjust the heat effect using the left intensity regulator.
Adjust intensity
of stimulation current /
Therapy start
The combined therapy is active when the stimulation current is adjusted with the right intensity
regulator.
The display in the lower status line changes from “Ready” to “Active”. The set ultrasound dose
is shown in the left bar graph (1) and the coupling display is active. The present current flow is
shown in the right bar (2) graph. The therapy time decreases every second.
Note:
During combined therapy, it should be noted that the live electrode cable (anode) is
fundamentally only active on channel I.
End of therapy
After the therapy time has elapsed, an acoustic signal indicates the end of therapy and the
clock is at 00:00. The intensity automatically goes to zero, the bar graph display disappears
and the coupling display is disabled. The display in the lower status line changes from “Active”
to “Ended”.
Activating the therapy
time
Using the “Start” button (3), the therapy time is reactivated after the end of therapy.
Description of the display
elements and buttons
The display elements and buttons are described in detail in sections 8.1 and 8.2.
