Zimmer PhySys - Page 4

Illustrations
Screens / display

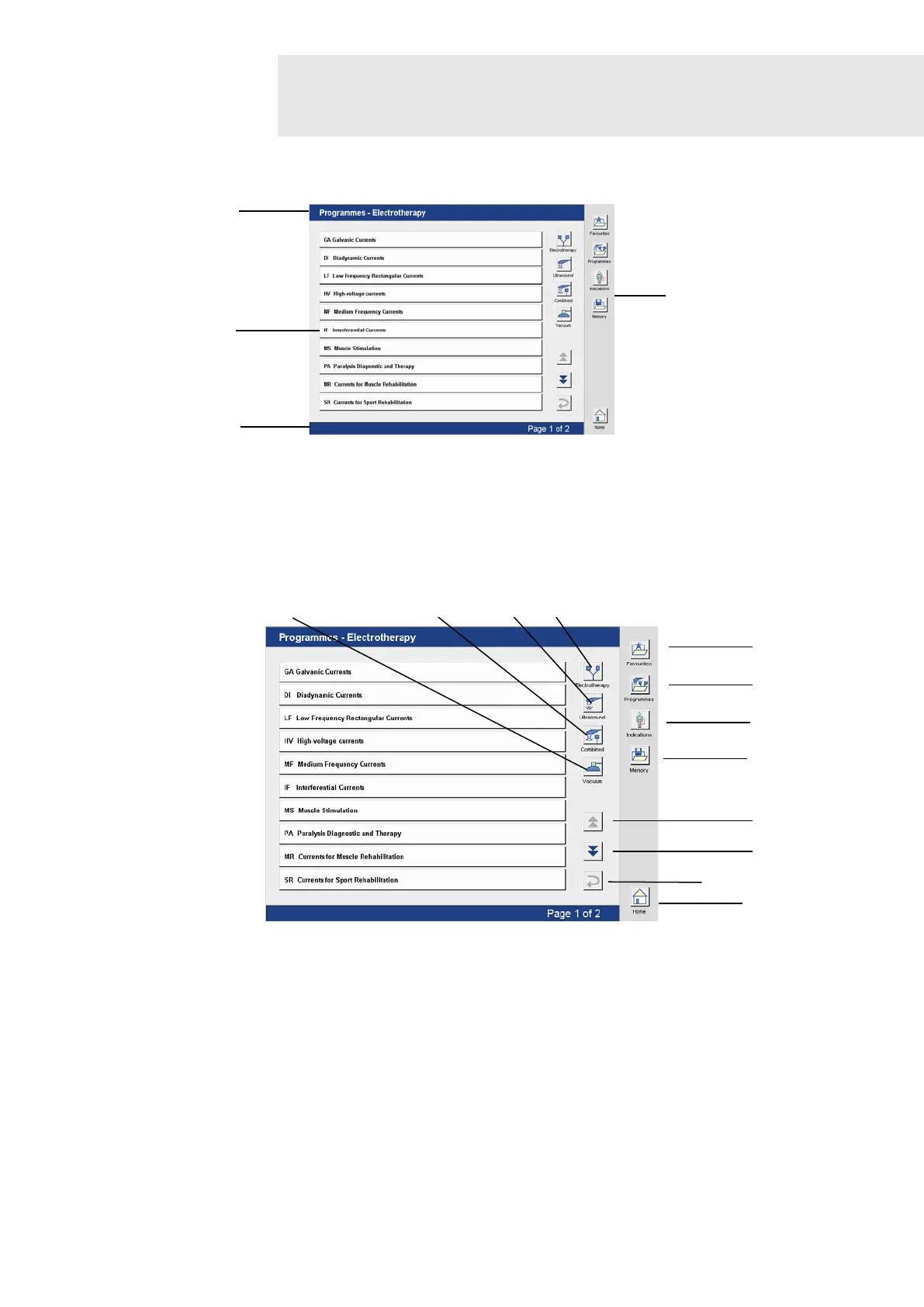

Fig. 5
Display views
13
Status line
14 Buttons on the screen
15 Heading
16 Navigation menu
Fig. 6
Navigation menu
(A) Home
Switch to start-up screen
(B) Back
Moves one step back
(C) Scroll forwards
Goes forward one page
(D) Scroll backwards
Goes back one page
(E) Memory
Switch to memory
(F) Indications
Switch to indication menu
(G) Programmes
Switch to the program list
(H) Favourites
Switch to favourites
(I) Electrotherapy
Switch to electrotherapy program list
(J) Ultrasound
Switch to ultrasound program list
(K) Combined
Switch to combined program list
(L) Vacuum
Switch to the vacuum screen
16
15
14
13
B
A
C
D
E
F
G
H
I
J
K
L
