Zoom G11 User Manual

█
Back

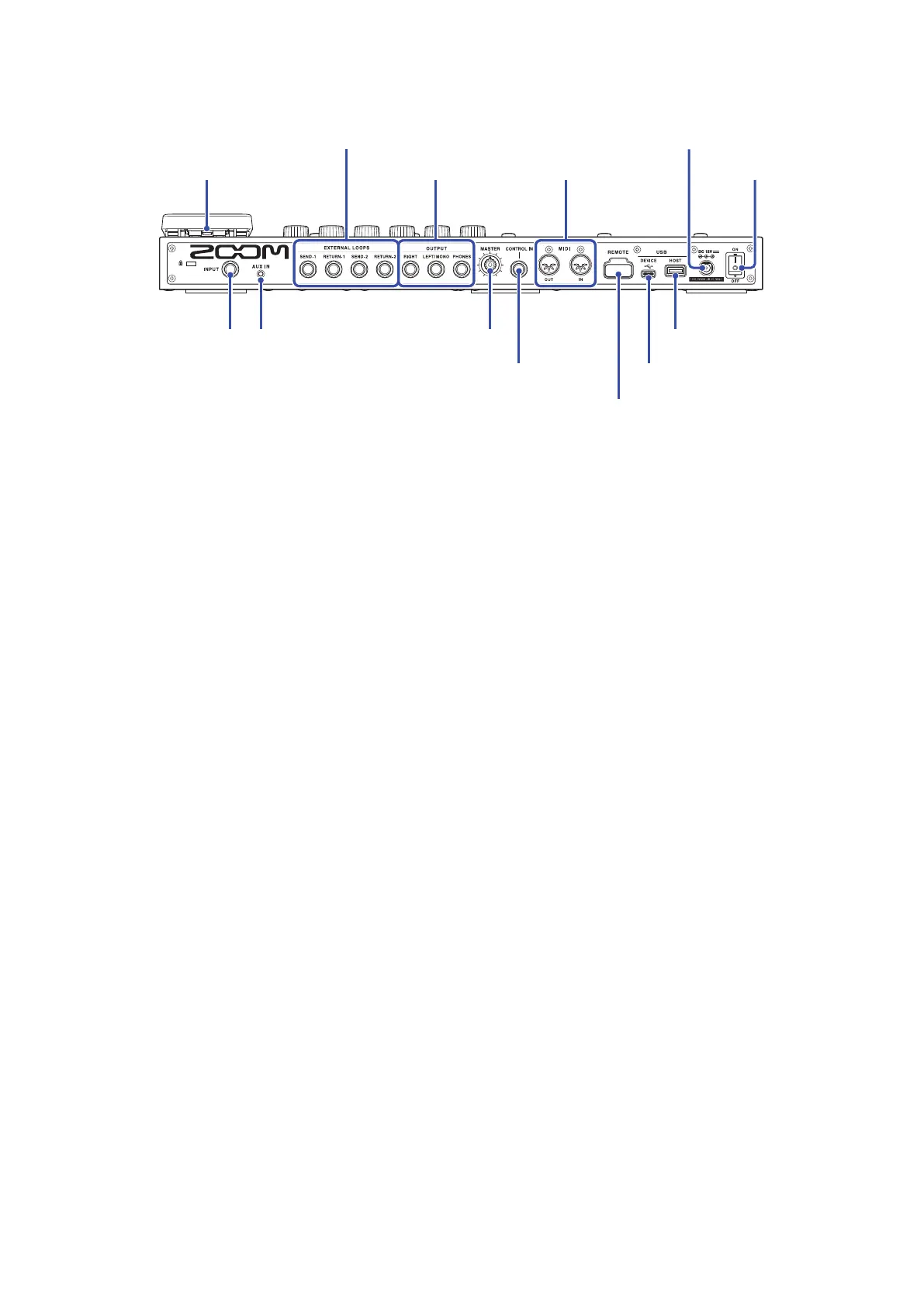

❶
Pedal switch
❷
EXTERNAL LOOPS jacks
❸
OUTPUT jacks
❹
MIDI connectors
❻
Power switch
❺
DC 12V AC adapter connector
❼
INPUT jack
❽
AUX IN jack
❾
MASTER knob
⓭
USB HOST port
⓬
USB DEVICE (Type-C) port
⓫
REMOTE connector
❿
CONTROL IN jack
❶
Pedal switch
This turns the expression pedal effect on/off.
❷
EXTERNAL LOOPS jacks
Use these to connect external effects (two).
• Connect the SEND-1 and SEND-2 connectors to the input jacks of external effects.
• Connect the RETURN-1 and RETURN-2 connectors to the output jacks of external effects.
❸
OUTPUT jacks
Connect a guitar amp, monitor speakers or headphones here.
• RIGHT jack: Connect the right channel input jack when using stereo output.
• LEFT/MONO jack: Connect a guitar amp here.
Connect the left channel input jack when using stereo output.
• PHONES jack: Connect headphones here.
❹
MIDI connectors
Connect MIDI devices to these.
• OUT connector: Connect the MIDI IN connector of a MIDI device here.
• IN connector: Connect the MIDI OUT connector of a MIDI device here.
❺
DC 12V AC adapter connector
Connect the dedicated AC adapter (ZOOM AD-19) here.
❻
Power switch
This turns the power ON/OFF.
❼
INPUT jack
Connect a guitar here.
❽
AUX IN jack
Connect a portable music player or similar device here.
❾
MASTER knob
Use to adjust the
G11 volume.
13

Zoom G11 Specifications

General

Type	Multi-effects Processor
USB	1 x Type B
MIDI	In/Out
Software	Zoom Guitar Lab
Amp Models	22
Effects Types	Distortion, Modulation, Delay, Reverb, EQ
Looper	Yes
Display	Color LCD
Inputs	1 x 1/4" (instrument), 1 x 1/8" (aux in)
Outputs	1 x 1/4" (headphones)
Expression Pedal	Yes, built-in
USB Audio Interface	Yes
Power Supply	AC adapter (included)
