Chapter419”StandardCabinetInstallation

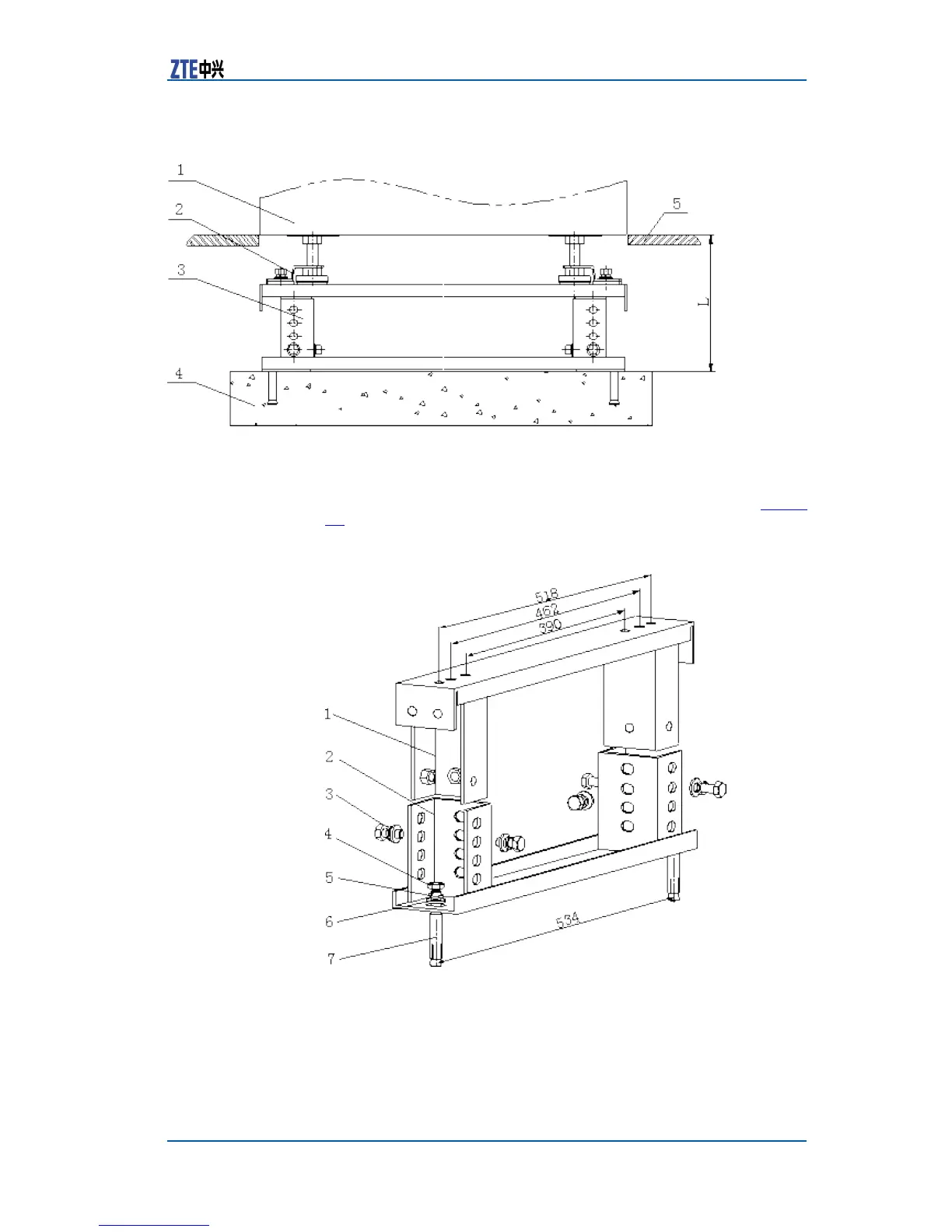

FIGURE12ADJUSTABLEBASEINSTALLATIONDIAGRAM
1.Cabinet
2.Pressplate
3.Adjustablebase
4.Foundation
5.Antistaticoor
Adjustablebasestructurediagram(ModelB)isshowninF
igure
13.
FIGURE13ADJUSTABLEBASESTRUCTUREDIAGRAM(MODELB)
1.Fixingframe
2.Flexibleframe
3.HighlockedboltM12×25
4.SleeveM12
5.Springwasher
6.Flatwasher
7.ExpandBoltM12×80
CondentialandProprietaryInformationofZTECORPORATION21
