Chapter 5 Initial Setup Example
MES-3728 User’s Guide
67
In the example network, configure 2 as the port VID on port 1 so that any untagged frames
received on that port get sent to VLAN 2.

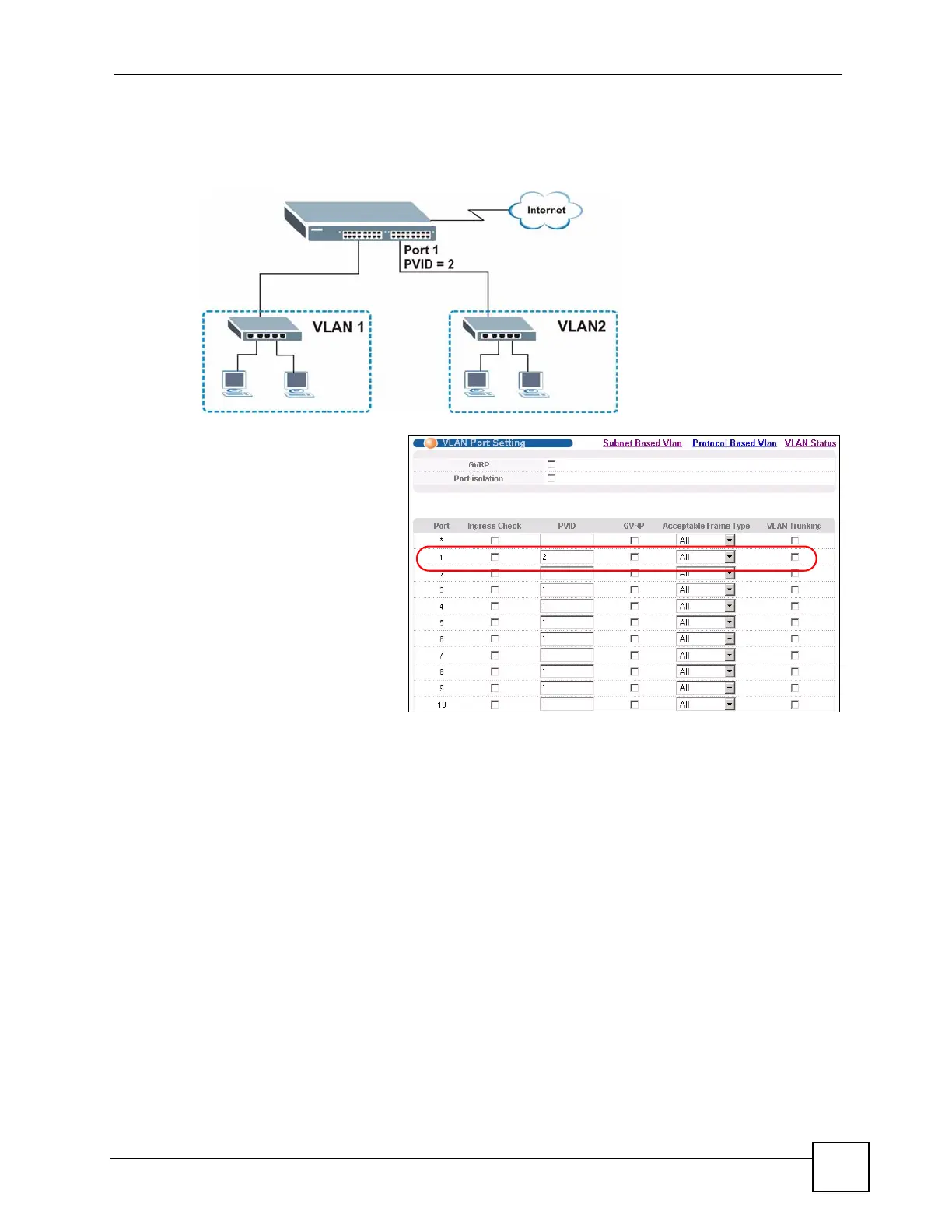

Figure 27 Initial Setup Network Example: Port VID
1 Click Advanced
Applications > VLAN
in the navigation panel.
Then click the VLAN
Port Setting link.
2 Enter 2 in the PVID
field for port 1 and
click Apply to save
your changes back to
the run-time memory.
Settings in the run-time
memory are lost when
the Switch’s power is
turned off.
5.2 Configuring Switch Management IP Address
The default management IP address of the Switch is 192.168.1.1. You can configure another
IP address in a different subnet for management purposes. The following figure shows an
example.
