Chapter 8 VLAN
MES-3728 User’s Guide
99
For example, port 1, 2, 3 and 4 belong to static VLAN 100, and port 4, 5, 6, 7 belong to static
VLAN 120. You configure a protocol based VLAN A with priority 3 for ARP traffic received
on port 1, 2 and 3. You also have a protocol based VLAN B with priority 2 for Apple Talk
traffic received on port 6 and 7. All upstream ARP traffic from port 1, 2 and 3 will be grouped
together, and all upstream Apple Talk traffic from port 6 and 7 will be in another group and
have higher priority than ARP traffic, when they go through the uplink port to a backbone
switch C.

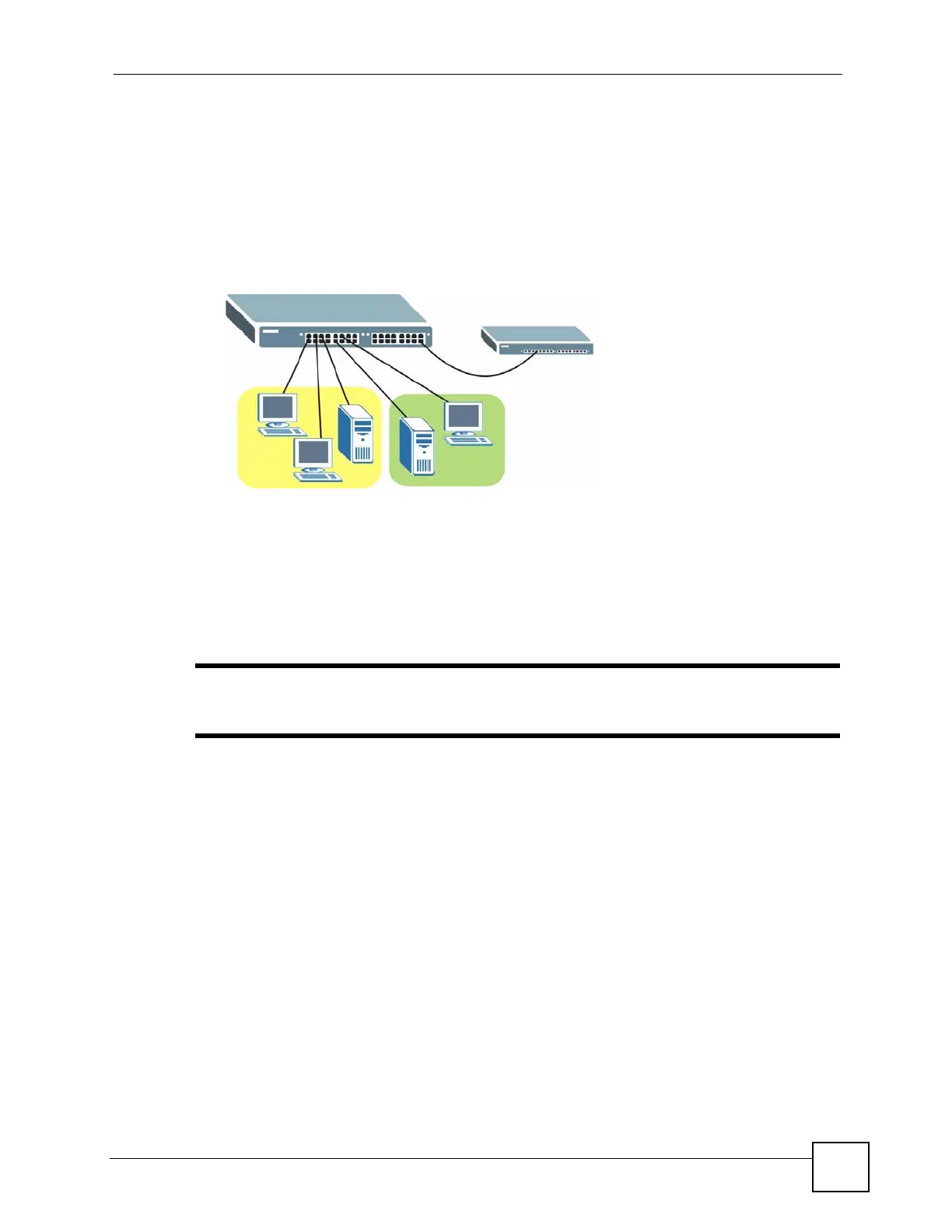

Figure 44 Protocol Based VLAN Application Example
8.9 Configuring Protocol Based VLAN
Click Protocol Based VLAN in the VLAN Port Setting screen to display the configuration
screen as shown.
" Protocol-based VLAN applies to un-tagged packets and is applicable only
when you use IEEE 802.1Q tagged VLAN.
