8.5.1 Static VLAN Status
See Section 8.1 on page 89 for more information on Static VLAN. Click Advanced
Application > VLAN from the navigation panel to display the VLAN Status screen as shown
next.

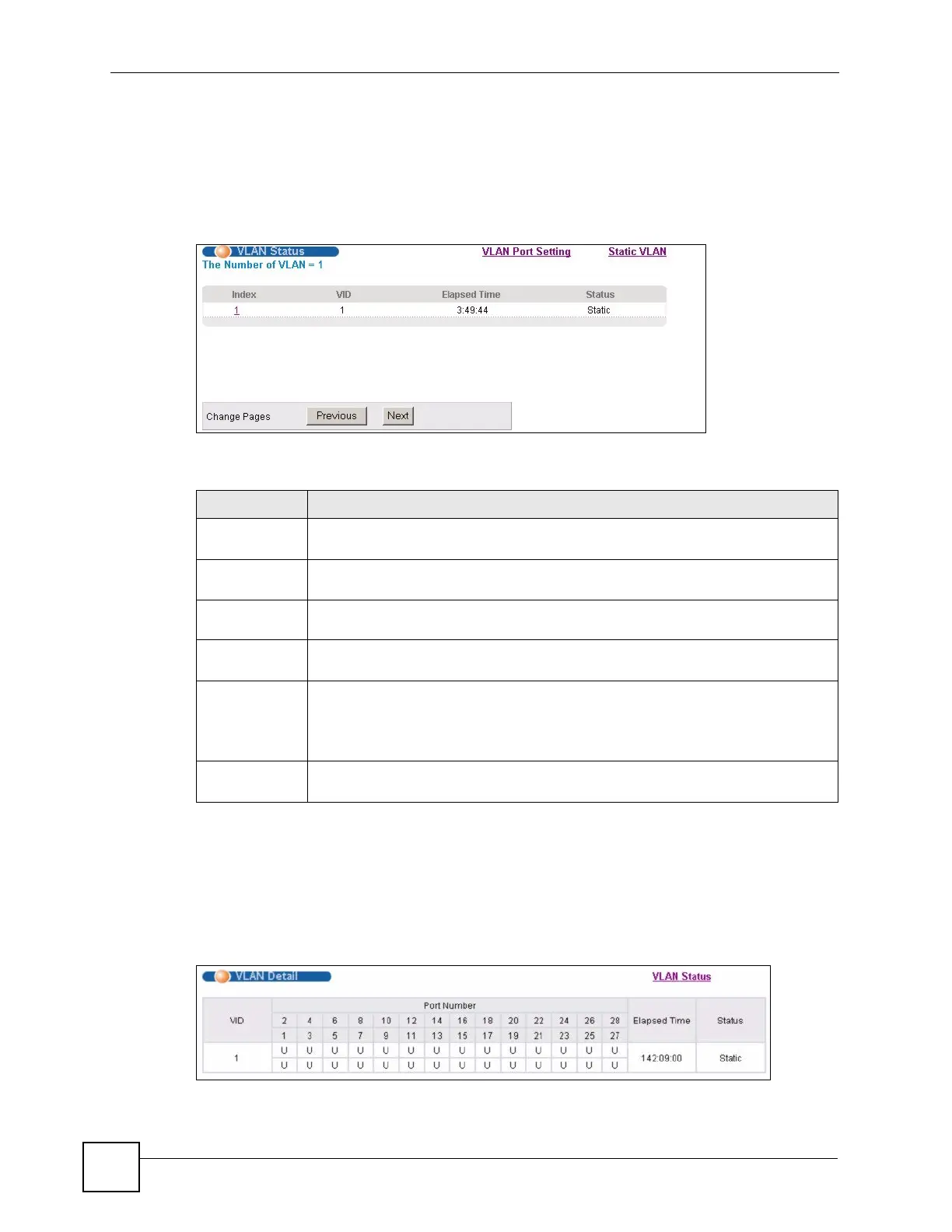

Figure 38 Advanced Application > VLAN: VLAN Status
The following table describes the labels in this screen.
8.5.2 VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See Section 8.1
on page 89 for more information on static VLAN. Click on an index number in the VLAN
Status screen to display VLAN details.
Figure 39 Advanced Application > VLAN > VLAN Detail
Table 14 Advanced Application > VLAN: VLAN Status
LABEL DESCRIPTION
The Number of
VLAN
This is the number of VLANs configured on the Switch.
Index This is the VLAN index number. Click on an index number to view more VLAN
details.
VID This is the VLAN identification number that was configured in the Static VLAN
screen.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a
static VLAN was set up.
Status This field shows how this VLAN was added to the Switch.
dynamic: using GVRP
static: added as a permanent entry
other: added in another way such as via Multicast VLAN Registration (MVR)
Change Pages Click Previous or Next to show the previous/next screen if all status information
cannot be seen in one screen.
